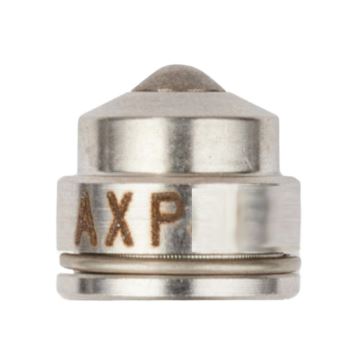

Graco AXP817 Performaa Precision Spray Tip

Graco AXP817 Performaa Precision Spray Tip Supersede Graco GG5817

It has the following specifications:

• Orifice Size: 0.017 inches (0.432 mm)
• Fluid Output:
  • At 600 psi (4.1 MPa, 41 bar): 22.0 fl oz/min (0.7 L/min)
  • At 1000 psi (7.0 MPa, 70 bar): 28.5 fl oz/min (0.85 L/min)
• Maximum Pattern Width: 16 to 18 inches (450 mm) at 12 inches (305 mm) from the spray tip.

This spray tip is designed for applications where a moderate to high fluid output and wider spray pattern are needed. It’s especially suitable for tasks where consistent, precise coverage over a larger surface area is required.
