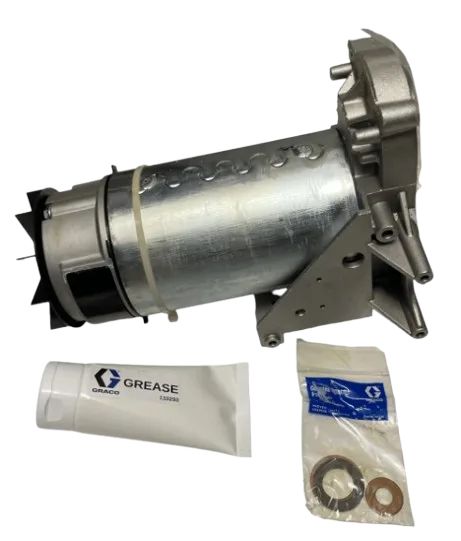

Graco 287015 Motor 120V
$509.88
$607.00
Save 16%
Available to Order
Graco 287015 Motor (120V) is a genuine replacement motor designed for the Ultra 495 sprayer series. It delivers dependable power and restores factory performance for consistent spraying.
- Voltage: 120V AC
- Part Number: 287015
- Fits: Ultra 495 Stand, Lo-Boy & Hi-Boy models
- Includes: Retaining ring (118716) & motor fan (248189)
- OEM Quality: Direct Graco replacement for reliable fit and operation
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Overview & Key Details
Compatible Machines
- Graco Ultra 495 – Stand
- Graco Ultra 495 – Lo-Boy
- Graco Ultra 495 – Hi-Boy
Graco 287015 Motor (120V) is a genuine replacement motor designed for the Ultra 495 series. It restores factory performance, maintains proper SmartControl operation, and includes the OEM motor hardware to simplify installation.
Why choose the 287015 replacement motor?
- OEM Fit & Performance - Built to Graco specifications for the Ultra 495 platform.
- 120V compatible - Ideal for North American power supplies and 120V jobsite generators.
- Includes required hardware - Supplied with the motor fan and retaining ring for a clean swap.
- Service-friendly - Designed for straightforward removal/installation following Graco procedures.
Specifications
| Part Number | 287015 |
|---|---|
| Voltage | 120V AC |
| Included Components |
|
| Compatible Sprayer Family | Ultra 495 (Stand, Lo-Boy, Hi-Boy) |
| Installation | Follow Graco Ultra 495 parts/repair manual procedures; disconnect power before service. |
| Notes | For Ultra Max II 495 certain series use different motor kits (e.g., 24R703/230V variants). Confirm your exact sprayer model/series before ordering. |
Frequently Asked Questions
The 287015 motor is specified for the Ultra 495. Some Ultra Max II 495 series use different motor kits (e.g., 24R703 for 110/120V in certain series). Check your sprayer’s exact model and series against the parts manual before purchase.
It is a genuine 120V motor assembly and includes the 118716 retaining ring and 248189 motor fan, matching Graco documentation.
Match your sprayer’s exact model/series (e.g., Ultra 495 Stand/Lo-Boy/Hi-Boy) to the Graco parts list. If your unit is an Ultra Max II 495, verify its series (A/B/C) and use the corresponding motor kit part number listed in the manual.
Yes-certain international/230V Ultra/Ultra Max II models use different motor kits. Refer to your region-specific Graco manual for the correct 230V part number.
