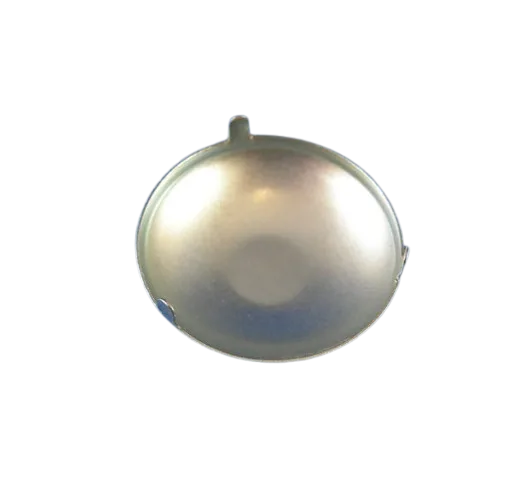

Graco 104811 Hub Cap

What the 104811 Hub Cap Does & Why It Matters

Compatible Machines

This OEM Graco 104811 Hub Cap is used across many electric airless sprayer carts and frames. Not a complete list, but commonly includes:

• Ultra Max II 695, 795, 1095, 1595 (cart units)
• Ultra Max II 490, 495, 595, 650 — Lo-Boy & Hi-Boy
• Ultra XT 490, 495 — Lo-Boy & Hi-Boy
• 395 PC Ultra — Lo-Boy & Hi-Boy
• Various carted electric airless sprayers that use the same hub/wheel cap design

Tip: If your model is not listed, match by the cart/wheel assembly diagram or message us with your sprayer model number to confirm.

Product Overview

The Graco 104811 Hub Cap (often shown as “CAP, hub” in parts diagrams) covers and protects the wheel hub area on cart-style sprayers. It helps keep the hub clean, aligned, and secured so your sprayer rolls smoothly and the cart assembly remains protected from dust and paint debris.

Key Benefits

• OEM fit for dependable alignment and retention
• Protects hub/wheel area from debris and splashes
• Restores the clean, finished look of the cart assembly
• Quick install—no special tools usually required

Specifications

Fit & Install Tips

• Confirm the hub/wheel style on your sprayer’s parts diagram matches the 104811 cap.
• Inspect the hub area; remove old cap, clean hub seat, then press the new cap firmly and evenly.
• If the cap is loose or doesn’t seat fully, re-check part number against your model.
