Graco Ultra Mark Vll XT Standard Digital Display Electric Airless Sprayer Parts List

Graco Ultra Mark VII XT Standard Digital Display

For pros running Graco spray equipment, uptime and precision are non-negotiable. Graco Ultra Mark VII XT Standard with digital display delivers both and SprayersAndParts.com offers a comprehensive Graco parts list covering everything from high-performance electronics to robust fluid sections. Whether you're installing Graco magnum x5 parts, tackling routine service, or fitting out with Graco sprayer accessories, this guide has you covered.

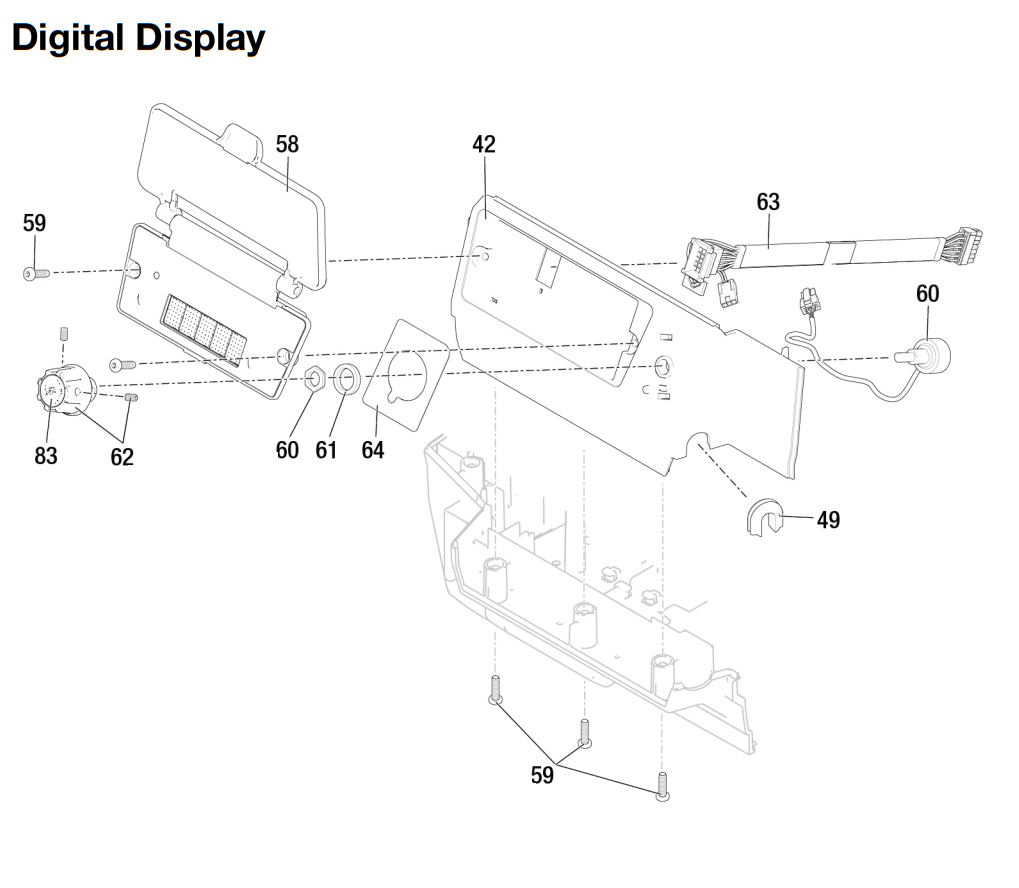

Digital Display & Control Box Assembly

The digital display version of the Mark VII XT empowers operators with real-time monitoring of pressure and performance. Key components include:

• SmartControl Board & Digital Display Kit – Includes display, circuit board, and all wiring for streamlined operation and diagnostics. This component upgrades manual controls into a precision tool.

• Power Cord & Plug Assembly – Heavy-duty cord set with strain relief and locking nut compatible with 120/230 V. Ensures safe, stable power delivery to the digital controls.

• Potentiometer & Pressure Transducer – Maintain pressure regulation through hardware integrated into the display interface.

• Control Panel Enclosure & Gaskets – Moisture-protected plastic enclosure, secure gaskets, and mounting labels ensure durability and safety.

The digital setup maintains the trusted Graco user experience while enabling smarter, data-driven spraying workflows perfect for professionals focused on performance.

Drive End & Pump Displacement Unit

Central to any airless sprayer is the pump system:

• Electric Motor, Drive Housing & Gears – 2.9 HP Xtreme Torque motor matched to a durable gear assembly delivers up to 3,300 psi pressure

• Pump Displacement Assembly – Crafted for reliability under heavy-duty cycles, connected via robust parts catalogued in Graco parts diagram.

• Graco Pump Repair Kit – Includes packing sets, pistons, check valves, springs, O-rings, and drive seals a full overhaul kit designed for a coveted Graco replacement pump rebuild. Essential for restoring factory performance and minimizing downtime.

Fluid Section & Sealing Components

From suction to spray tip, fluid integrity is critical:

• Filter & Suction Kit – Quick-clean Easy-Out filters (30/60/100/200 mesh) that reduce clogs and downtime.

• Check Valve & Kit – Includes seats, balls, and springs; Graco pump repair kit often incorporates this replacement assembly.

• Prime and Drain Valve Assemblies – Heavy-duty prime valves for rapid purging, plus drain line parts to simplify maintenance.

• Fluid Hose Wrap Bracket – Ensures hoses stay organized during transport and use.

These items are indispensable Graco sprayer accessories that support clean fluid delivery and system reliability.

Spray Gun, Hose & Accessories

No sprayer is complete without the gun:

• Spray Gun & RAC-X Tip – High-flow gun with a reversible tip for precise application. It pairs naturally with other Graco sprayer accessories like whip hoses and tip guards.

• Gun-to-Machine Hose Kit – High-pressure hose rated for XT use is included for secure connection and stable pressure delivery.

• Optional airless paint sprayer attachments — whip hoses, inline filters, and tip guards allow customization for specific applications and job demands.

Why OEM Parts & Rebuild Kits Matter

Graco replacement pump kits and OEM parts outperform aftermarket options due to:

1. Precise tolerances & pressure handling – Engineered for 3,300 psi peak performance

2. Complete seal kits – One-stop restoration with everything needed for pump rebuilds.

3. Chemical and pressure durability – Meant to last through harsh coatings and frequent use.

4. Parts overlap with other sprayers – Many XT components cross-compatible with Graco magnum x5 parts, simplifying logistics and inventory management.

Maintenance Plan for Longevity

Use this approach to maximize life and efficiency:

• Monthly Overhaul – Swap pistons, seals, O-rings, and check valves using a Graco pump repair kit. Replace filters every 50 hours.

• Daily Lubrication – Add TSL to fluid section before use.

• Electrical Checks – Inspect power cord, strain relief, and strap-ins daily.

• Fluid Hose Maintenance – Monitor whip hoses, hose wrap brackets, and drain lines for wear.

• Gun & Tip Care – Clean daily with tip guards and quick-clean rods for consistent performance.

• Frame and Mobility Inspection – Check wheels, handles, and kickstands weekly.

• Authorized Service Support – When detailed overhaul is needed, locate authorized help through search term “graco pump repair near me”.

Where to Find & Buy Parts

SprayersAndParts.com offers:

• A full Graco parts list for Mark VII XT Standard digital pumps.

• OEM rebuild kits labeled Graco pump repair kit—ideal for comprehensive servicing.

• Graco sprayer accessories in one place: filters, filters, whip hoses, tip guards, and tool shelf parts.

• Fast shipping.

Final Summary

Graco Ultra Mark VII XT Standard with digital display is a professional-grade sprayer engineered for high-output precision. Keeping it performing at peak means using the right OEM components from control electronics and fluid pumps to hoses, accessories, and structural parts.

With SprayersAndParts.com’s detailed Graco parts list, you can maintain efficiency, minimize downtime, and keep spraying reliably for years. Want help finding part numbers, comparing kits, or locating nearby service providers? Just ask!
