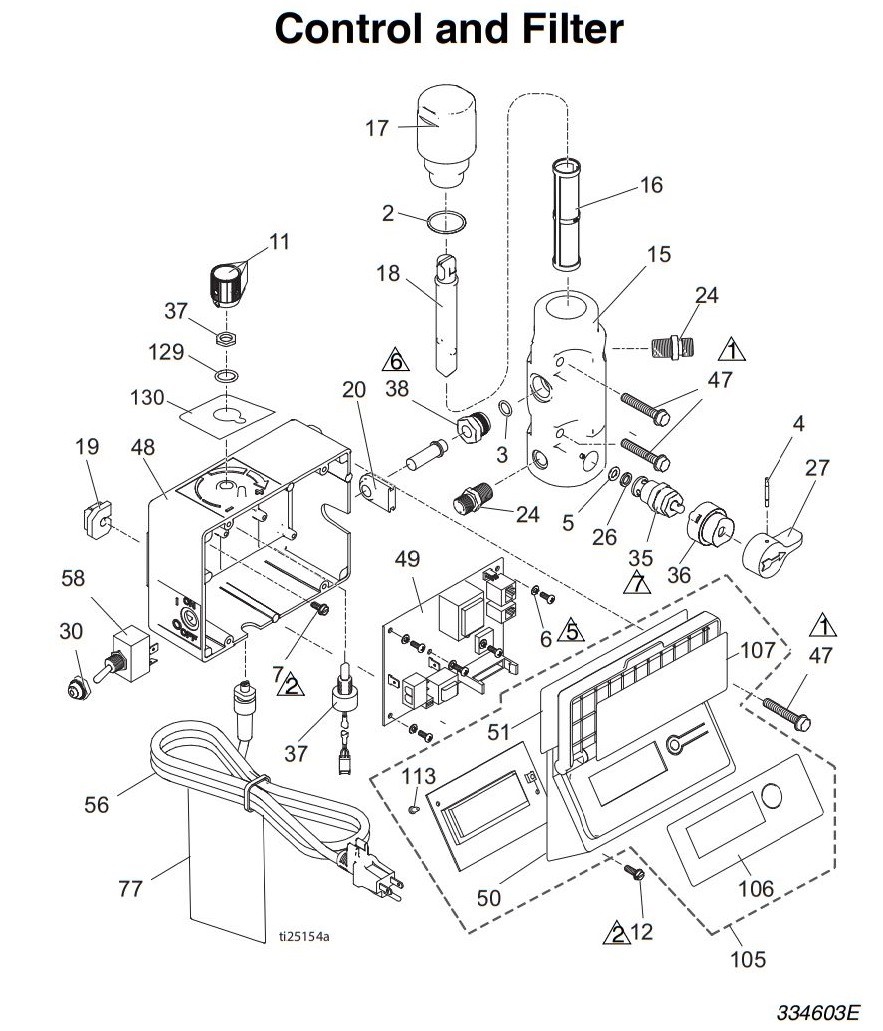

Graco RentalPro 230PC Electric Airless Sprayer Control and Filter Parts List

Graco RentalPro 230PC Electric Airless Sprayer Control and Filter Parts List
Product Image
Graco 117828 Encapsulated O-Ring Packing Kit

Item No: 2

Part Number: 117828

UPC Number: 633955020344

Graco 117828 Encapsulated O-Ring Packing Kit seals the joint between the manifold filter and manifol...

$22.40
QTY:
Product Image
Graco 111457 Packing O-Ring

Item No: 3

Part Number: 111457

UPC Number: 633955460584

Graco 111457 Packing O-Ring is a durable PTFE seal designed to maintain consistent pressure and prev...

$16.50
QTY:
Product Image
Graco 111600 Grooved Pin

Item No: 4

Part Number: 111600

UPC Number: 633955582996

Graco 111600 Grooved Pin is a genuine OEM part designed to secure the handle in the Prime/Drain Valv...

$5.25
QTY:
Product Image
Graco 277364 Valve Seat Gasket Kit

Item No: 5

Part Number: 277364

UPC Number: 633955192461

Maintain optimal performance of your Graco sprayer with the 277364 Valve Seat Gasket Kit. Prevent le...

$10.00
QTY:
Product Image
Graco 115494 Phillips Pan Head Machine Screw

Item No: 6

Part Number: 115494

UPC Number: 633955920392

The Graco 115494 Phillips Pan Head Machine Screw is a precision‑machined fastener used in Graco sp...

$5.25
QTY:
Product Image
Graco 115498 Slot Hex Washer Screw

Item No: 7

Part Number: 115498

UPC Number: 633955908222

Graco 115498 Slot Hex Washer Screw — genuine OEM fastener used to secure covers/control components...

$5.25
QTY:
Product Image
Graco 116167 Pressure Control Knob

Item No: 11

Part Number: 116167

UPC Number: 633955960695

OEM pressure control knob designed for precise fluid pressure adjustment and consistent spray perfor...

$5.85
QTY:
Product Image
Graco 117501 Slotted Hexagonal Washer Head Machine Screw

Item No: 12

Part Number: 117501

UPC Number: 633955017160

Graco 117501 Hexagonal Head Slotted Washer Machine Screw provides secure fastening for Graco airless...

$5.25
QTY:
Product Image
Graco 15G455 Fluid Manifold

Item No: 15

Part Number: 15G455

UPC Number: 633955113602

Graco 15G455 Fluid Manifold ensures precise control and distribution of fluid in Graco airless spray...

List Price: $119.00
You save: $12.38 (10.40%)
Sale Price: $106.62
QTY:
Product Image
Graco 246425 Short Manifold 30 Mesh Filter (Gray)

Item No: 16

Part Number: 246425

UPC Number: 633955921573

OEM Graco 246425 Short Manifold 30-Mesh (Gray) filter for reliable debris capture and smoother spray...

$12.30
QTY:
Product Image
Graco 246384 Tall Manifold 60 Mesh Filter (Black)

Item No: 16a

Part Number: 246384

UPC Number: 633955921528

Graco 246384 Tall Manifold 60 Mesh Filter (Black) protects your sprayer pump from debris, ensuring c...

$12.30
QTY:
Product Image
Graco 246382 | Easy Out Short Pump Manifold Filter (100 Mesh Blue)

Item No: 16b

Part Number: 246382

UPC Number: 633955921504

Graco 246382 is an Easy Out short pump manifold filter with 100-mesh (Blue) screening - ideal for pr...

$12.30
QTY:
Product Image
Graco 246383 Tall Manifold 200 Mesh Filter (Red)

Item No: 16c

Part Number: 246383

UPC Number: 633955921511

Graco 246383 is a 200-mesh (Red) Easy Out manifold filter for fine materials (stains, lacquers, seal...

$22.60
QTY:
Product Image
Graco 287902 Tall Manifold Filter Cap

Item No: 17

Part Number: 287902

UPC Number: 633955146747

The Graco 287902 Tall Manifold Filter Cap is an OEM replacement housing that secures the internal ma...

List Price: $94.75
You save: $7.86 (8.30%)
Sale Price: $86.89
QTY:
Product Image
Graco 15B071 Tall Insert Filter

Item No: 18

Part Number: 15B071

UPC Number: 633955017252

The Graco 15B071 Tall Insert Filter is a durable manifold insert that securely holds tall filter ele...

$7.30
QTY:
Product Image
Graco 15B118 Motor Wire Bushing

Item No: 19

Part Number: 15B118

UPC Number: 633955017337

The Graco 15B118 Motor Wire Bushing protects motor wires at their exit point in Graco electric spray...

$5.25
QTY:
Product Image
Graco 15B120 Transducer Grommet

Item No: 20

Part Number: 15B120

UPC Number: 633955017351

Graco 15B120 Transducer Grommet securely mounts the pressure transducer in your sprayer, protecting ...

$5.25
QTY:
Product Image
Graco 162453 Nipple Fitting 1/4NPSM X 1/4NPT

Item No: 24

Part Number: 162453

UPC Number: 633955087712

Graco 162453 Nipple Fitting ensures secure, leak-free connections in pumps and manifolds, maintainin...

$25.40
QTY:
Product Image
Graco 15E022 Prime Valve Seat

Item No: 26

Part Number: 15E022

UPC Number: 633955083844

Ensure your Graco sprayer runs smoothly with the 15E022 Prime Valve Seat. Maintains a secure seal an...

$14.70
QTY:
Product Image
Graco 187625 Drain Valve Handle

Item No: 27

Part Number: 187625

UPC Number: 633955588868

Graco 187625 Drain Valve Handle is a genuine OEM replacement part designed for precise control of th...

$8.60
QTY:
Product Image
Graco 195428 Toggle Boot

Item No: 30

Part Number: 195428

UPC Number: 633955912564

$10.90
QTY:
Product Image
Graco 235014 Prime Drain Valve Spray Kit

Item No: 35

Part Number: 235014

UPC Number: 633955349100

Maintain your Graco airless sprayer with the 235014 Prime Drain Valve Spray Kit. Ensures smooth prim...

List Price: $121.00
You save: $28.07 (23.20%)
Sale Price: $92.93
QTY:
Product Image
Graco 224807 Prime Valve Base

Item No: 36

Part Number: 224807

UPC Number: 633955364264

Ensure smooth priming and reliable operation of your Graco airless sprayer with the 224807 Prime Val...

$6.85
QTY:
Product Image
Graco 17D888 Potentiometer Assembly replaces Graco 256219

Item No: 37

Part Number: 17D888

UPC Number: 755652063513

The Graco 17D888 Potentiometer Assembly ensures precise control of material flow and consistent spra...

List Price: $157.50
You save: $19.69 (12.50%)
Sale Price: $137.81
QTY:
Product Image
Graco 243222 Pressure Transducer

Item No: 38

Part Number: 243222

UPC Number: 633955920880

Maintain precise pressure control and consistent spray performance with the 243222 Pressure Transduc...

List Price: $169.50
You save: $21.19 (12.50%)
Sale Price: $148.31
QTY:
Product Image
Graco 117493 Hexagonal Head Washer Machine Screw

Item No: 47

Part Number: 117493

UPC Number: 633955017146

Graco 117493 Hexagonal Head Washer Machine Screw is a durable OEM fastener designed for precise fit ...

$5.25
QTY:
Product Image
Graco 276868 Control Box

Item No: 48

Part Number: 276868

UPC Number: 633955018334

The Graco 276868 Control Box is a genuine OEM part that regulates electronic functions in compatible...

List Price: $39.20
You save: $2.16 (5.51%)
Sale Price: $37.04
QTY:
Product Image
Graco 246379 120V Control Board

Item No: 49

Part Number: 246379

UPC Number: 633955921474

List Price: $343.00
You save: $50.08 (14.60%)
Sale Price: $292.92
QTY:
Product Image
Graco 15k400 Control Label ST Max

Item No: 51

Part Number: 15K400

UPC Number: 633955224247

Graco 15K400 control label for ST Max units provides button and control area marking so operators ...

$8.20
QTY:
Product Image
Graco 15J743 Power Cord Set (Lighted)

Item No: 56

Part Number: 15J743

UPC Number: 633955211001

The Graco 15J743 Power Cord Set (Lighted) is a genuine OEM replacement with a built-in lighted plug ...

List Price: $30.80
You save: $1.69 (5.49%)
Sale Price: $29.11
QTY:
Product Image
Graco 195429 Toggle Switch

Item No: 58

Part Number: 195429

UPC Number: 633955910355

$29.10
QTY:
Product Image
Graco 287098 Digital Display Accessory Kit

Item No: 105

Part Number: 287098

UPC Number: 633955921580

Graco 287098 Digital Display Accessory Kit is an OEM replacement module that restores accurate press...

List Price: $209.00
You save: $29.05 (13.90%)
Sale Price: $179.95
QTY:
Product Image

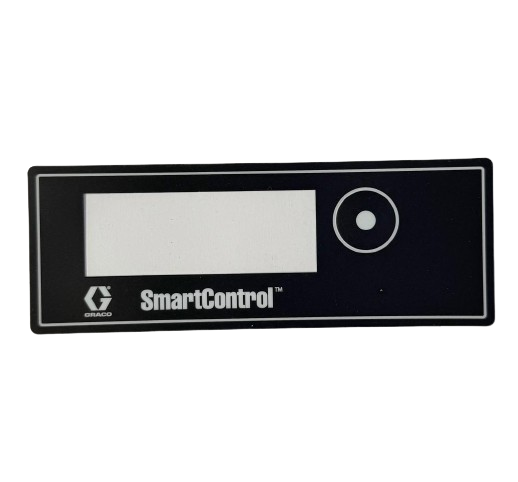

Graco 15B461 Display Label

Item No: 106

Part Number: 15B461

UPC Number: 633955017535

Graco 15B461 Display Label — replacement label to maintain clear markings on equipment displays....

$8.20
QTY:
Product Image
Graco 15B648 Display Label

Item No: 107

Part Number: 15B648

UPC Number: 633955017788

Graco 15B648 Display Label — replacement printed label for clear and durable equipment panel inf...

$8.20
QTY:
Product Image
Graco 115522 Pan Head Machine Screw

Item No: 113

Part Number: 115522

UPC Number: 633955912557

The Graco 115522 Pan Head Machine Screw is a genuine OEM‑screw used to securely fasten housings, c...

$5.25
QTY:
Product Image
Graco 158674 O-Ring Packing

Item No: 129

Part Number: 158674

UPC Number: 633955264229

Graco 158674 O-Ring Packing is a durable seal that prevents leaks and ensures reliable fluid flow in...

$14.90
QTY:
Product Image
Graco 17P738 Pressure Adjustment Label

Item No: 130

Part Number: 17P738

UPC Number: 755652412809

Graco 17P738 Pressure Adjustment Label — replacement label for clear pressure adjustment marking...

$8.20
QTY:

Maintain & Upgrade with Precision-Engineered Graco RentalPro 230PC Electric Airless Sprayer Control and Filter Parts List

When it comes to graco rentalpro 230pc electric airless sprayer control and filter parts list quality matters, contractors turn to Sprayersandparts.com. Our premium-grade selection covers everything from graco 360 paint sprayer to graco pumps, letting you spec, source, and ship in one friction-free stop. Whether you spray trim in upscale condos or knock out miles of highway fencing, the right component makes the difference between an okay finish and a flawless money-maker.

Why Choose Genuine Graco RentalPro 230PC Electric Airless Sprayer Control and Filter Parts?

  • Built to factory tolerances that preserve pressure curves and atomization geometry.
  • Lab-verified for solvent compatibility and burst ratings copycat brands rarely match.
  • Backed by Graco’s warranty.

Key Features

Every listing discloses dimensions, material grades, and pressure limits so you can confidently interchange parts across rigs. Upgrading with graco 7900 parts or matching a legacy assembly that still runs the venerable graco 7900? Specs are a click away.

Pro Tips for Long-Term Reliability

Document service intervals so wear items get swapped before failures snowball. Pair every new seal kit with fresh lubricant from the factory pack to extend pack-off life. Keep a spare rack of graco sprayers on the truck to slash downtime during multi-day projects. Use color-coded bins to separate similar parts like the graco 390 pc pump repair kit and Graco X7 and LTS 17 Diagram and Parts for lightning-fast grabs.

Control & Filter Anatomy 101

The RentalPro 230PC’s heart is a high-efficiency DC motor regulated by an IntelliSync control board. This board constantly samples pressure via an inline sensor, adjusting amperage in milliseconds to hold a rock-steady 2,300 psi. Downstream, stainless-steel manifold filters strip debris to 60 mesh, protecting the tip from grooved fan patterns. A genuine filter costs pennies compared to the labor of hand-sanding an orange-peel wall.

Quick-Swap Troubleshooting Guide

Symptom First Check Likely Fix
Pulsing pressure Worn inlet valve Install inlet repair kit
Motor stalls Clogged filter Replace filter & prime
Tailing fan Tip erosion Swap tip; verify micron rating
Excess overspray Incorrect pressure Calibrate control board

Field-Ready Workflow Upgrades

  1. Pre-label your kits. Nothing slows a crew like rifling through boxes. Label your graco 360 paint sprayer parts kits by model and interval, then toss them in a clear bin.
  2. Bundle consumables. Pair pump packing kits with pump armor fluid and disposable gloves so techs never skip a step.
  3. Automate reorder points. Our dashboard emails you when on-hand counts hit your danger level, avoiding midnight hardware-store runs.

Ready to Boost Uptime?

Add genuine Graco RentalPro 230PC Electric Airless Sprayer Control and Filter Parts—including your favorite graco 360 paint sprayer parts and field-proven graco 390 pc pump repair kit—to your cart today. Feel the difference on tomorrow’s jobsite when your finish looks like glass and your crew clocks out early.
