Graco GMAX II 7900 HD Gas Airless Sprayer – Full OEM Parts & Kit Guide

For contractors tackling large exterior jobs, commercial buildings, or industrial surfaces, the Graco GMAX II 7900 HD is a game-changer in graco airless paint sprayer technology. Built on a proven chassis with a robust Honda engine and high-volume pump, this sprayer delivers up to 15 GPM output and pressures up to 3,300 psi—ready to handle the most demanding coatings.

SprayersAndParts.com brings you a full graco parts list and illustrated diagrams that include every essential component—from engine mounts to spray guns and graco sprayer accessories. Plus, many internal components overlap with the Graco Magnum X5 parts line, allowing for intelligent, cross-compatible stocking.

1. Engine & Cart Assembly – Smooth Power Delivery

• Honda 9 HP Engine – A reliable four-stroke motor providing continuous torque for large spray volumes.

• Engine Mounting Hardware – Vibration-resistant gaskets, bolts, and support washers ensure consistent alignment.

• Cooling Fan & Shroud – Ensures proper airflow during heavy-duty operation.

• Heavy-Duty Frame & Wheels – Rugged cart with reinforced handles, 12″ semi-pneumatic wheels (Part 119515), and bolted wheel plates for durability and jobsite mobility.

Parts like hose clips, paint hangers, and hardware bolts double as universal paint sprayer parts and fit across electric and gas sprayer platforms.

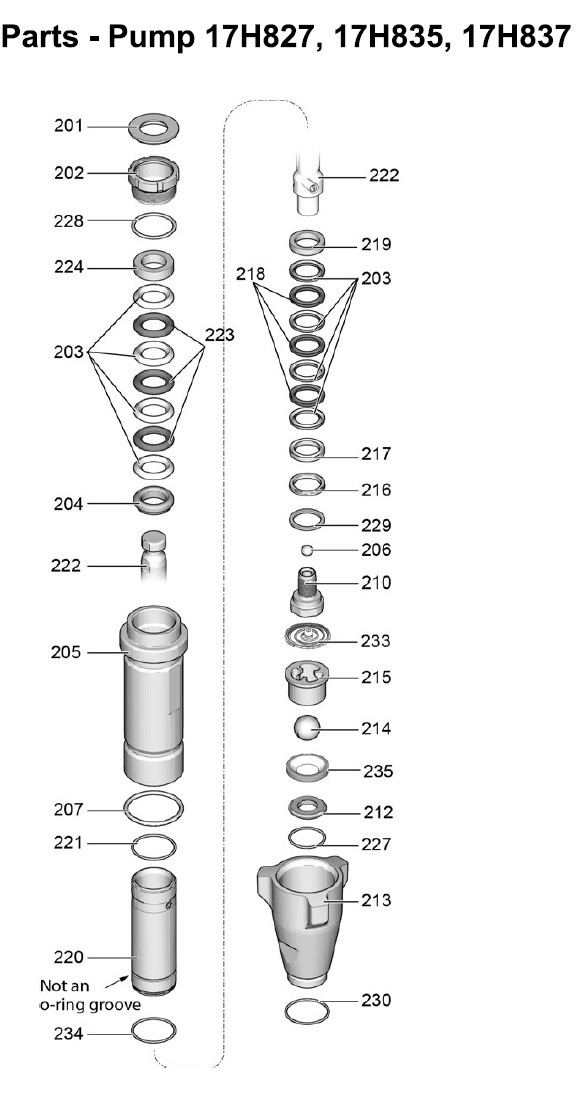

2. High-Volume Fluid Pump & Suction System

• High-Output Pump Assembly – The fluid section supports heavy coatings at high flow; it shares key internals with graco magnum x5 parts, providing flexible inventory benefits.

• Chromex Pistons & Cylinder Packings – Heavy-duty seals engineered for long service life under abrasive materials.

• Valve Seats, Balls, and Springs – Easily rebuilt using OEM seal kits to ensure reliable performance.

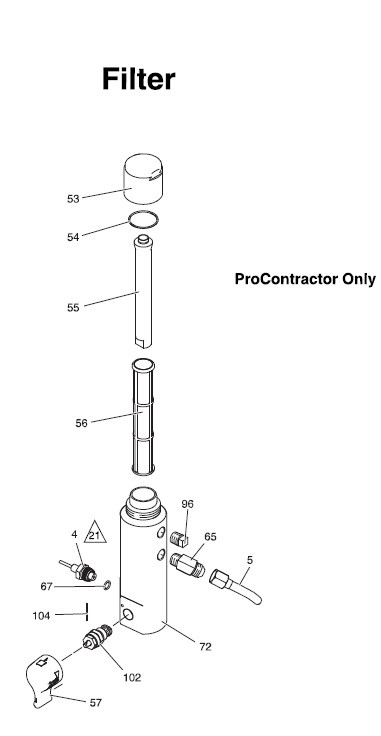

• Suction Tube Kit & Inlet Filter – Built with 60 and 100 mesh options to prevent sediment from damaging internal components.

• Drain Hose & Deflector Assembly – Clear flow tracking and efficient cleaning.

This pump system mirrors components found in major Graco electric airless sprayers, offering simplified parts management.

3. Contractors Spray Gun & Tip System

• Contractor FTx Spray Gun (Part 288420) – Built to handle GPM loads up to 15 and 3,300 psi pressures.

• RAC-X Tip Set – Multiple tip sizes and guards deliver precision finish control.

• Whip Hose Kits & Quick Couplers – Add flexibility at the gun, preventing cart drag during long sprays.

• Inline Gun Filters – Protect against debris entering the hose, preventing tip clogs and silencing pulsation.

These items are essential graco sprayer accessories and are shared across both gas and graco electric paint sprayer fleets.

4. Control Valve & Pressure Management

• Pressure Transducer & Manifold – Helps regulate output pressure and interface with optional Bluetooth or telemetry controllers.

• Throttle/Control Lever & Housing – Provides accurate control under variable loads.

• High-Pressure Hoses – Rated for full system pressure and resistant to abrasion.

All control valve components match OEM specifications and are included in the SprayersAndParts.com catalog.

5. Application Accessories & Consumables

• Inline Filters (Disposable mesh up to 200 micron)

• Tip Guards & Plug Kits

• Hose Clips & Wand Hangers

• Strain Relief Grommets & Cart Caps

These paint sprayer parts ensure proper maintenance and prevent daily wear-and-tear from evolving into costly repairs.

6. Shared Inventory with Electric Sprayer Models

• Internal fluid section parts—including packings, sleeves, valves, and pistons—are shared with models like the 695 and 795 Lo-Boy electric units.

• Spray guns, hoses, inline filters, and quick couplers carry across both gas and graco electric paint sprayer lines.

• The overlap with graco magnum x5 parts means fewer stock SKUs and faster servicing time.

Maintenance & Service Strategy

• Daily: Always flush material through till clear water appears. Depressurize, inspect hoses, and lubricate packings if needed.

• Weekly/50 Hours: Clean or replace suction inlet filters.

• Monthly/200 Hours: Rebuild fluid section with OEM seal kit; inspect pistons and sleeves.

• Every 500 Hours: Replace packed pistons, sleeve, valves, and O-rings.

• Annual Full Service: Inspect engine, hose integrity, control systems, and hard parts. Order parts from complete graco parts list via diagrams.

7. Emergency Field Repair Kits

Minimize downtime with service kits on hand:

• Fluid Section Rebuild Kit – Includes all packings, seals, pistons, and valves.

• Gun Rebuild Kits – Seals, springs, spindles in one package.

• Hose Repair Kits – Quick coupler and swivel replacements for field repairs.

• Particular Speed Kits – Include clips, shields, and O-ring assortments.

With matching graco sprayer accessories across the fleet, servicing becomes quick and consistent.

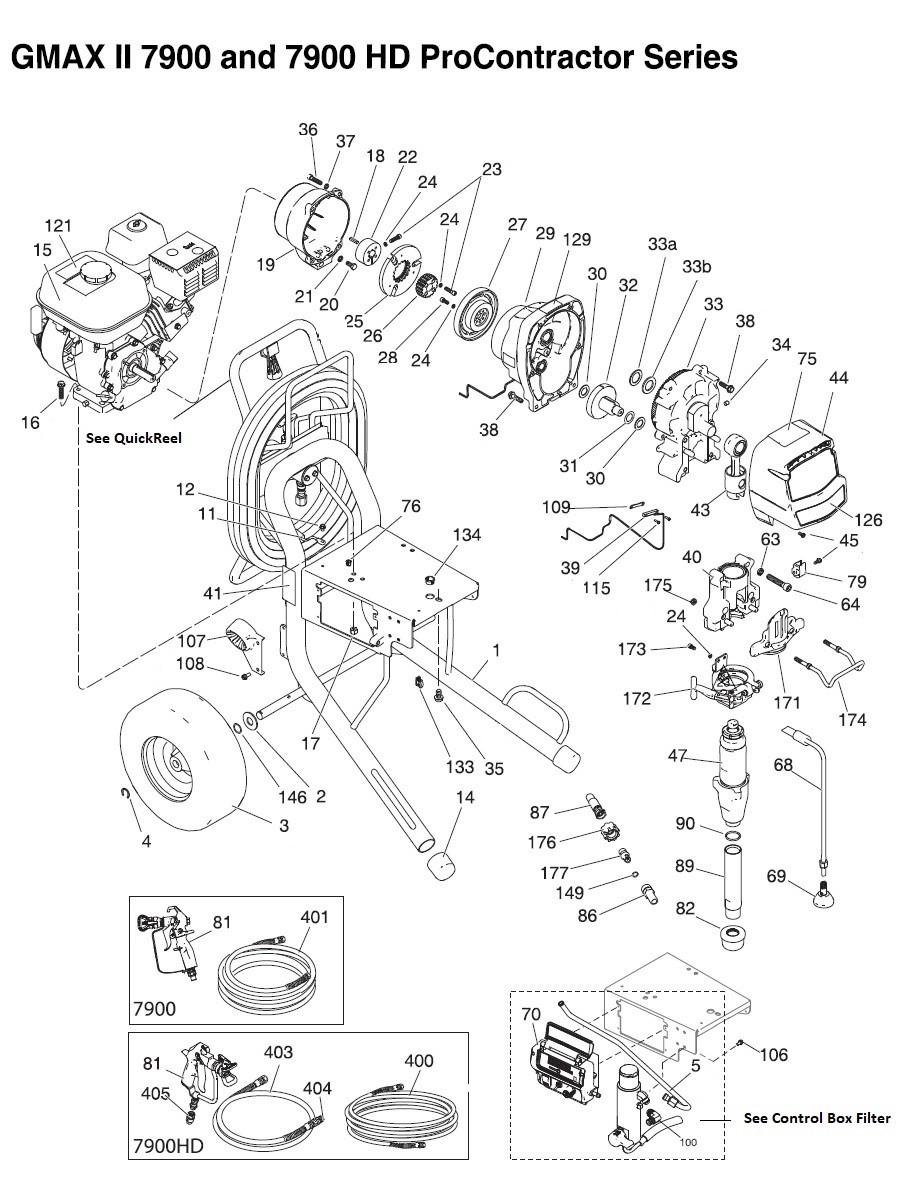

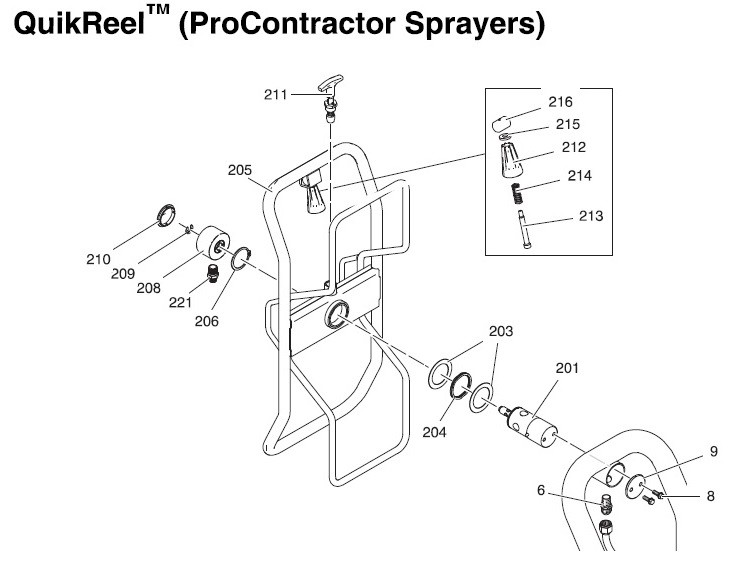

8. Parts Diagrams & Reference Guide

SprayersAndParts.com provides detailed visuals and graco sprayer parts diagram for easy identification:

Refer to respective catalog sections for torque specs, compatibility notes, and ordering links.

Final Takeaway

The Graco GMAX II 7900 HD Gas Airless Sprayer delivers serious power for large and long projects. Every component is covered in the OEM graco parts list, complemented by a fully indexed graco sprayer parts diagram. Whether you’re servicing it alone or stocking across multiple spray platforms—including Graco Magnum X5 parts and electric paint sprayer rigs—this guide ensures you’ll have the right parts for the job quickly and confidently.
