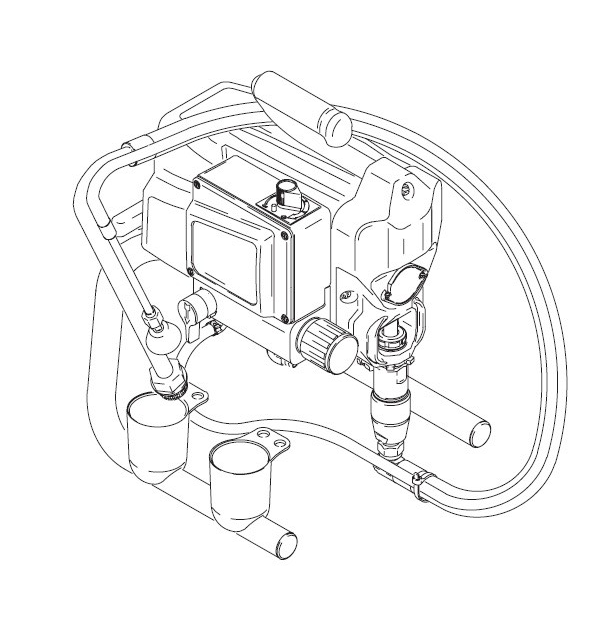

Maintain & Upgrade with Precision-Engineered Graco 395st B Pro (220-240 VAC) Airless Paint Sprayers
395st B Pro is Graco’s global-voltage workhorse—light enough for condo punch-lists yet tough enough to slam a 0.021 tip through elastomeric all day. But even this hero stalls when a Chromex® rod pits or a SmartControl™ sensor drifts. Every idle minute steals profit. That’s why facility managers and repaint contractors source serialized parts from SprayersAndParts.com for all graco sprayers part and graco accessories.
Why Demand Genuine 395st B Pro Parts?
- Chromex® Rod + MaxLife™ Seats | 64 Rc nitrided steel laughs at TiO2 that scars stainless clones in a weekend.
- V-Max Blue™ Hybrid Packings | Leather/UHMW stack self-lubricates from 40 °F dawn starts to 110 °F attics without weep-by.
- SmartControl 4.0 Board | Factory sensor locks fan width ±1 %; copy boards “hunt” and waste 10 % extra paint.
- ProConnect™ 2 Door | Swap a blown lower in 60 s—no vise, no hammer, no cursing.
- Warranty = Alive | Graco honours Endurance™ cover only when every spare is serialized; one clone seat voids the lot.
Key Features & Specs
| Metric |
Specification |
| Voltage |
220-240 VAC (50/60 Hz) |
| Motor |
1.1 kW brushless DC • Advantage-Drive™ gears |
| Max pressure |
3 300 psi / 228 bar |
| Max flow |
0.54 gpm / 2.0 L min |
| Tip range |
RAC X LP 0.013″–0.025″ • 0.029″ texture |
| Pump swap |
< 60 s via ProConnect 2 |
| Weight |
42 lb / 19 kg (stand version) |
One Parts Bin, Five Rigs Saved
Graco standardised stroke length and filter cores across its mid-electric and gas frames, so a single 395st kit protects half your fleet:
- 395st B Pro — native fit.
- LineLazer 3400 — seats, balls and 60-mesh Easy-Out™ filters drop right in for emergency striping.
- Ultra Max II 490 PC Pro — Contractor PC gun cartridge, RAC X guard, BlueMax hose cross-fit during crunch weeks.
- GMAX 5900 Gas — Easy-Out stack & RAC X tips bolt on when the big rig plugs mid-pour.
- Magnum Project Painter Plus — tip guards & 60-mesh filters keep rental backups spraying straight.
Top-Moving 395st B Pro Replacement Parts
- 17C487 Endurance™ Pump Lower | Chromex rod, V-Max packings, MaxLife seats; factory blast-tested 5 000 psi.
- 17Y297 Contractor PC Gun | 30-second cartridge rebuild; pairs with any graco paint sprayer guard.
- 240 794 BlueMax II 50 ft Hose | ¼″ ID dual-swivel; mate with 3 ft graco whip hose for soffits.
- 17G180 RAC X LP 517 Tip + Guard | Sprays satin at 1 400 psi; knocks overspray down 18 %.
- Easy-Out™ 30/60/100-mesh Filters | Snap-in cores slash clean-time 45 % vs wing-nut screens.
- Pump Armor™ 1 gal | Rust inhibitor that keeps packings supple during winter lay-ups.
Five Habits for a 1 000-Hour 395st B Pro
- Warm Flush 100 °F—latex dissolves 30 % faster; BlueMax liner safe to 160 °F.
- Wet-Cup Discipline—5 TSL drops every break; dry cups score Chromex rods by lunch.
- Retorque Packings After First Hour—leather seats as it hydrates; snug to spec once warm.
- Mesh-to-Tip Rule—30-mesh ≥0.025″; 60-mesh 0.017–0.023″; 100-mesh for handheld primers.
- Colour-Code Bins—blue = electric rigs, red = gas, green = handheld; no wrong-kit grabs at shift-change.
Frequently Asked Questions
Will Endurance pump 17C487 fit my 3400 striping unit?
Yes—stroke identical; reuse your ProConnect door.
Max hose length with 0.023″ tip?
150 ft total: ⅜″ BlueMax first 100 ft, ¼″ whip last 50 ft; hold 2 900 psi.
Can I spray solvent urethane?
Packings solvent-rated; flush xylene then store in Pump Armor™.
Ready to Swap Downtime for Billable Gallons?
Drop an Endurance pump, Easy-Out filter trio, and LP tip bundle in your cart now. We’ll ship —so tomorrow your 395st B Pro wakes on first trigger, sprays razor-flat lines, and keeps invoices flowing.
