Graco RentalPro 230PC HDR Electric Airless Sprayer: OEM Parts, Quick Ship, Zero Headaches
Graco RentalPro 230PC HDR Electric Airless Sprayer has become the rental industry’s go-to workhorse because it delivers contract-grade output in a compact, easy-to-service frame. Powered by a rugged 7/8-hp totally-enclosed brushless DC motor and a ProConnect-ready Endurance™ Chromex pump, the sprayer pushes 0.54 gpm through tips as large as 0.023 in. at a steady 3,300 psi. That combination lets crews roll from interior primer to exterior latex—and back—without changing rigs.
But 230PC HDR only stays profitable when every piston rod, seal and filter is genuine Graco. SprayersAndParts carries the complete RentalPro 230PC HDR parts list—including the drop-in 17C487 replacement pump, 18B260 graco 390 pc pump repair kit, and 288488 graco gun repair kit.
Key Specifications at a Glance
| Metric |
Value |
| Maximum working pressure |
3,300 psi / 228 bar |
| Maximum flow rate |
0.54 gpm / 2.0 lpm |
| Maximum tip size (single gun) |
0.023 in. |
| Motor draw |
120 V, 13 A (3 kW generator minimum) |
| Supported hose length |
300 ft / 91 m |
| Dry weight (Hi-Boy cart) |
75 lb / 34 kg |
These specs translate into the power to spray an average 2,500 sq ft home in under two hours, then handle four more apartments before the rental clock resets.
Why Authentic Parts Outperform Knock-Offs
- Chromex™ piston rods resist abrasion from micaceous iron oxides and filler-rich elastomerics, adding up to 2× pump life.
- V-Max Blue™ packings in the 18B260 kit maintain pressure after 200+ hours—copycat seals leak in half that time.
- Factory pressure sensors keep SmartControl within ±1 %, preventing tiger-striping on high-gloss trim.
- Graco warranty continuity: only OEM spares preserve coverage and drivetrain protection.
Top-Moving RentalPro 230PC HDR Service Items

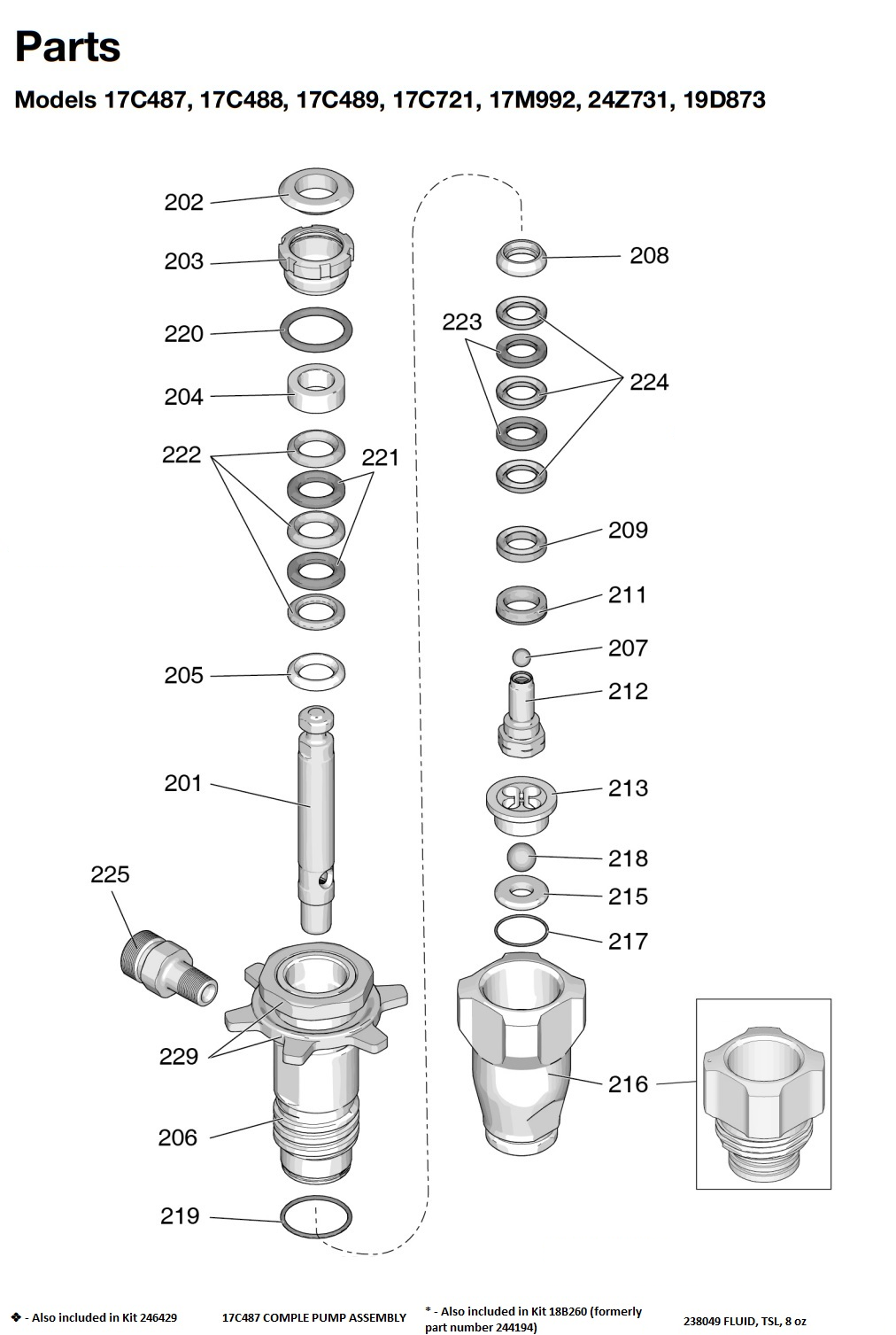

- 17C487 Endurance™ Pump Lower – five-minute ProConnect swap keeps revenue flowing on same-day turnarounds.
- 18B260 Pump Packing Repair Kit – renews 390 PC, 395 PC, 495 PC Pro, and RentalPro lowers with one SKU.
- 288488 Contractor/FTx graco gun repair kit – rebuilds trigger seals, springs and ball valves in minutes.
- 60-mesh and 100-mesh manifold filters – protect the piston packings from aggregate or dried flakes.
- BlueMax II ¼-in. × 50-ft hose – rated 3,300 psi with a lightweight jacket that reduces wrist fatigue.
Cross-Platform Savings: Magnum X5 & 695 ProContractor
Big facilities crews often pair 230PC HDR with consumer-grade Magnums for punch-outs or a heavy-duty ultra max ii 695 procontractor series electric airless sprayer for elastomeric walls. Good news—many wear parts overlap:
- The 16F047 Magnum X5 pump kit uses the same packings and piston balls found in the 17C487.
- RAC X™ guards and low-pressure tips swap freely between the RentalPro and graco magnum x5 airless paint sprayer parts, simplifying van inventory.
- The 695 ProContractor shares 60-mesh manifold filters and Contractor PC gun seals with the 230PC HDR.
Order by Diagram—One-Click Accuracy
Typing long part numbers on a phone invites typos. Our Order By Graco Parts Diagram lets you tap the exact bolt or o-ring on an exploded illustration and drop it straight into your cart. The overlay flags discontinued SKUs and suggests their modern equivalents, eliminating 90 % of returns due to spec errors.
Maintenance Blueprint
- Every Day
- Flush with water or solvent for one minute, relieve pressure, add two drops of TSL throat lube, and inspect hose jackets.
- Every Week
- Change gun and manifold filters (60-mesh for latex, 100-mesh for stains). Tighten frame bolts and ProConnect latch screws.
- 200 Hours
- Install 18B260 packings, inspect piston rod for scoring, and replace if graco replacement pump wear limit is hit.
- 500–700 Gallons
- Swap the complete 17C487 pump; average field tech time: five minutes with no vise.
Rental-Ready Startup Pack
- RentalPro 230PC HDR sprayer (ready-to-spray)
- BlueMax II 50-ft hose + whip
- Contractor PC gun with 515 & 517 tips
- 60-mesh & 100-mesh filters
Downtime-Buster Fleet Kit
- 17C487 graco replacement pump (×2)
- 18B260 packing kits (×4)
- 288488 gun seal kits (×2)
- Case of TSL, four manifold filters, spare 50-ft hose
Fine-Finish Conversion Pack
- LP 210, 310, 410 tips
- 100-mesh high-flow gun filters
- ¼-in. × 25-ft Super-Flex hose
- Pump-armor fluid for seasonal storage
Frequently Asked Questions
- Is the RentalPro 230PC HDR rated for hot solvents?
- Yes—Chromex rods and PTFE packings handle material up to 110 °F. Flush with mineral spirits, not lacquer thinner.
- What generator size keeps full pressure?
- A 3 kW inverter handles 13 A start-draws without brown-outs; 3.5 kW is even better for long extension cords.
- Can I use Gun X gun parts?
- Any Contractor, FTx or Flex gun accepts the 288488 graco gun repair kit and snaps onto the RentalPro hose with no adapter.
- Do Magnum X5 pumps work on a RentalPro?
- The 16F047 pump physically bolts up, but flow drops to 0.33 gpm. Keep them separate and stock cross-compatible seals instead.
- How often should I change packings?
- Every 200 operating hours or at the first sign of leakage—whichever comes first. Install 18B260 and record hours in BlueLink™ for warranty tracking.
