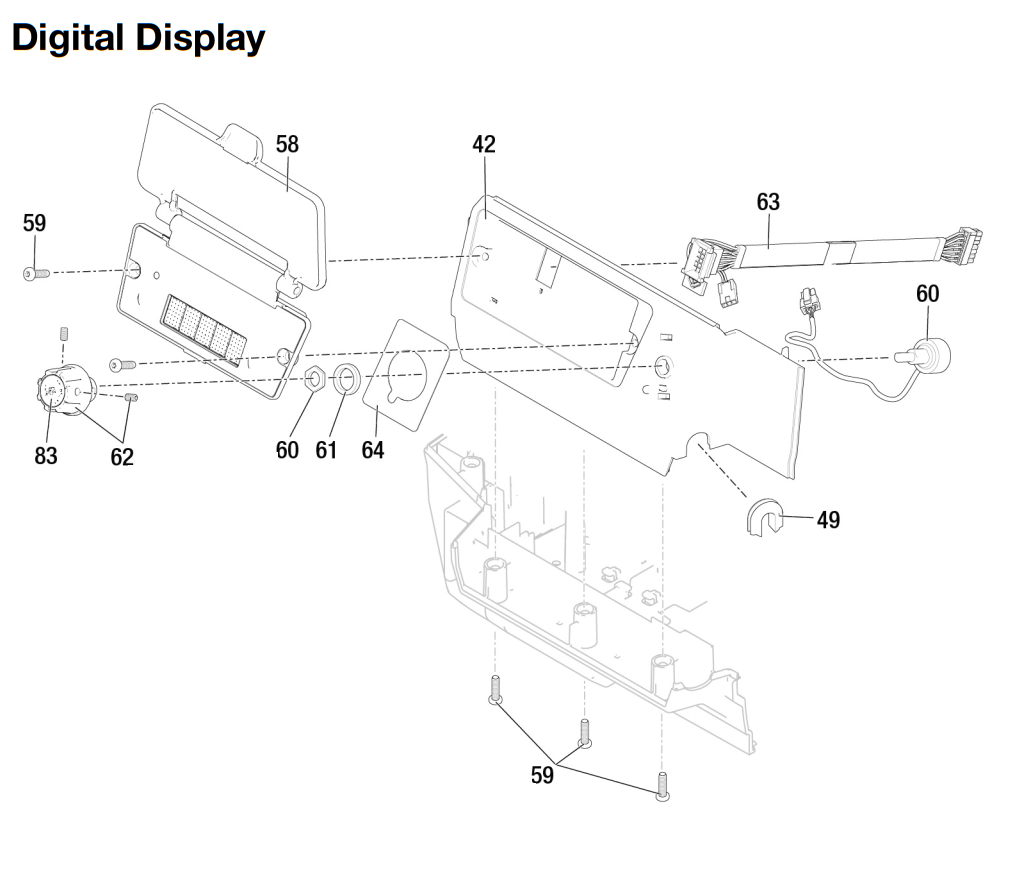

Graco XT Mark IV Pro Hi-Boy Digital Display Electric Airless Sprayer Parts

Maintain & Upgrade with Precision‑Engineered Graco XT Mark IV Pro Hi‑Boy Digital Display Electric Airless Sprayer Parts

When performance matters on-site, contractors rely on the Graco XT Mark IV Pro Hi‑Boy with digital display—an electric airless sprayer built for precision, efficiency, and ease of use. At Sprayersandparts.com, we stock genuine Graco plug-and-play parts that restore, upgrade, and elevate your XT Mark IV Pro. Alongside parts for Graco TrueCoat 360 Electric units, airless paint sprayer diagrams, and more, our team makes it easy to spec, source, and ship your parts in a single friction-free process.

Why Genuine Graco XT Mark IV Pro Parts Matter

Electric airless sprayers like the XT Mark IV Pro are advanced machines, blending hydraulic precision with digital control. To perform reliably, every part must meet Graco’s original engineering standards. Here’s why genuine parts outperform cheaper alternatives:

• Factory Tolerance Guarantee: All components are machined for exact fit, eliminating vibration, binding, or misalignment issues common with non-OEM parts.

• Pressure & Chemical Tested: Ideal for tough coatings—elastomeric, stains, sealers, paints—genuine parts resist breakdown where knockoffs fail.

• Warranty & Expert Backing: Parts are covered under Graco warranty and bolstered by Symmetrically trained support at Sprayersandparts.com.

When you invest in Graco XT Mark IV Pro parts, you're investing in durable, safe, and efficient performance—every time.

Comprehensive Inventory of XT Mark IV Pro & Related Parts

At Sprayersandparts.com, every part is accompanied by specs, compatibility notes, and digital diagrams to ensure you get the right fit. Key components include:

1. Pump & Valve Assemblies

• Replacement Piston/Pack Kit: Maintain factory-rated gallon-per-minute throughput.

• Prime/Drain Valve Kits: Upgrade valves for clean starts and smooth shutdowns.

• Smoothing/Ribbing Blades: Essential for seamless finishes—compatible in Houston and beyond.

2. Digital Control Components

• Display & Control Board: OEM boards with backlit UI for precise pressure control.

• Pressure Transducer & Switches: Get reliable real-time feedback to avoid overpressure.

3. Spray Guns & Tips

• Graco Air Pro & FTx Guns: Ergonomic handles and flow control for all coating viscosities.

• Magnum LTS 17 Tip System: Manual or electric gun tips—designed for brushless precision.

4. Seals, Hoses & Fittings

• Pump Seal Kits & Gaskets: Matched to fluid type—use Viton, Teflon, or Buna.

• Pressure & Suction Hoses: Rated to 3000+ PSI with Swivel-In and QC fittings.

• Containment Fittings: Backed with grounding and safety features for job site use.

5. Filters & Manifolds

• Inlet Filters: Prevent debris from damaging pistons and valves.

• Spray Gun Manifold Filters: Essential on nest rig with multiple guns.

6. STEM Motors & Drives

• Electric Motor Replacements: 1.5–2 HP, TEFC, direct-replacement trimmed to suit XT Mark IV’s frame.

• Overload, GFCI & Thermal Protection Kits: Safeguard your investment on-site.

Key Features & Specs

Every part includes full specs and cross-references:

• Material / Hardness Rating

• Compatibility Listings (e.g., TrueCoat 360, Magnum LTS)

• Max PSI Rating

• Thread Size & Type

• Image Gallery for Visual Matching

These details ensure confident purchases and fewer returns—especially important when ordering remotely or servicing rigs across geographies, like Houston, TX.

Same-Day Shipping for Jobsite Agility

Orders confirmed by 12 PM Central Time qualify for same-day shipping from Graco U.S. warehouse (T&C apply).). No holding patterns, no delays.
Need torque specs or part breakdowns? Chat with our field-trained technicians—they’re familiar with XT Mark IV Pro disassembly, TrueCoat 360 servicing, and MagLTS upgrades.

Pro Tips for Long‑Term Reliability

To maximize uptime and component life, combine OEM parts with smart maintenance strategies:

1. Document Maintenance Intervals

• Replace pumps and seals at scheduled hours (check digital display runtime counters).

• Keep sprayer performance logs for troubleshooting.

2. Lubricate Fresh Seal Kits

• Always pair pump kits with Graco TSL—maintains pack quality and reduces friction.

3. Prep Backup Units

• A spare Graco TrueCoat 360 parts kit or Magnum LTS 17 pump keeps crews rolling during breakdowns.

4. Organize Systematically

• Use bins with color-coded labels—one for XT Mark IV parts, one for Magnum, one for TrueCoat series—to minimize onsite mix-ups.

Upgrade Paths & Modular Integration

The XT Mark IV Pro supports both pump and digital upgrades:

• Swap to High-Flow ERP Piston for better throughput on heavy materials.

• Upgrade to Electric Magnum LTS 17 Tips—ideal for texture finishing.

• Add TrueCoat 360 eTrigger System for better digital control.

Find all compatible parts in one place—not a patchwork of aftermarket parts.

Graco vs. Generic: A Proven ROI

Using generic parts may save pennies today but costs heavily in:

• Equipment failures

• Field downtime

• Customer dissatisfaction

With OEM parts:

• Fit and finish = instant performance

• Backed by Graco warranty

• Supported by Sprayersandparts.com technical team

• Delivered on the same day

Top Picks for XT Mark IV Pro Electric Units

Some of our most reliable and frequently ordered parts include:

• Pump Rebuild Kit (Pack, Piston, Wiper)

• Air Pro Gun with FTx Rotator

• Magnum LTS 17 Digital Tip Kit

• XT Mark IV Display Module

• Control Board & Transducer Assembly

• Prime/Drain Valve Upgrade

• Quick-Connect Containment Fitting Set

All come with specs, part numbers, and side-by-side diagrams to ease identification.

Ready to Gear Up?

To maintain your XT Mark IV Pro Hi‑Boy and related rigs:

1. Use model-based search: “XT Mark IV display board”, “Mag LTS 17 tip kit”

2. Validate via side-by-side specs & images

3. Chat with tech team for torque values or compatibility

4. Order and track with instant access to shipping updates

Conclusion: Reliability Starts with OEM Parts

For contractors requiring precision, reliability, and speed, OEM parts are essential. At Sprayersandparts.com, you’ll always find:

• Genuine Graco XT Mark IV Pro Hi‑Boy parts—control boards, gun tips, valves

• Upgrade hardware for TrueCoat 360 and Magnum platforms

• Detailed diagrams, specs, and support

• Same-day shipping and tech assistance

Don’t let your sprayer hold you back. Add genuine Graco XT Mark IV Pro parts—and related electric airless upgrades—to your cart now. Feel the difference on your next jobsite.
