Graco XT Mark IV Pro delivers contractor-grade muscle without the bulk of a gas rig. Powered by a 2.9 HP brushless Xtreme-Torque motor and an Endurance Vortex MAXLIFE pump, it moves up to 4.5 L min^-1 (1.2 gpm) through .031-in tips at 3 300 psi. That throughput turns blank walls into revenue fast right up until a 60-mesh filter plugs or a Chromex rod starts weeping. Seasoned contractors turn to SprayersAndParts.com for factory-serialized graco paint sprayer parts that bolt in, prime up, and get teams back on the gun. Our live exploded diagrams drill from the SmartControl 4.0 board down to the PTFE back-up ring.

Why Choose Genuine Graco XT Mark IV Pro Hi-Boy Parts?

Chromex rods = 2× life. A nickel-diffusion chrome layer resists silica fillers far longer than flash-chrome clones keeping volumetric efficiency ≥ 90 % past 1 000 hours.
SmartControl ±1 % accuracy. Boards ship pre-flashed for the Mark IV’s torque curve; knock-off boards hunt, surge, and waste paint.
3 300 psi burst margin. OEM manifold blocks, RAC X guards, and graco hose assemblies are hydro-tested to 4 950 psi critical during tip-clean spikes.
Plug-and-Spray warranty. Stay genuine to keep Graco’s Lifetime Advantage Drive coverage and warranty intact.
QR micro-guides. Every kit includes a scannable 90-second video correct torque & Loctite spec right on your phone 30 ft up a lift.

Key Tech Snapshot

Max Working Pressure	3 300 psi / 227 bar
Max Flow Rate	1.2 gpm / 4.5 L min^-1
Motor	2.9 HP brushless Xtreme-Torque
Packing Kit	19B195 V-Max Blue (rod, seals, seat)
Piston Rod	19B201 Chromex stainless
Filter Element	181072 60-mesh Easy-Out
Tip Guard	RAC X Blue—fits all graco spray guard

Cross-Fleet Compatibility One Bin Rescues Many Rigs

Graco builds on modular DNA; stocking Mark IV parts keeps a mixed fleet productive:

Ultra Max II 695 ProContractor. Identical Chromex rod, 60-mesh filter & guard; board re-flashes in minutes.
GMAX 7900 Gas. Same RAC X guard, tip seats & inlet strainer ideal when pairing electric for interiors and gas for rooftops.
Magnum Project Painter Plus 257025. Tip guard and manifold filter match via adapter see Buy Graco Magnum Project Painter Plus 257025 Parts List.
Graco 395 Sprayer. Shares filter core, ball seats, and many O-rings great for trim crews who need graco 395 sprayer parts on-site.
TrueCoat 360 Handhelds. LP tips preserve fan geometry; stocking graco truecoat 360 parts & graco truecoat 360 replacement parts means touch-up matches wall finish.

Smart Accessory Bundles Boost ROI in One Click

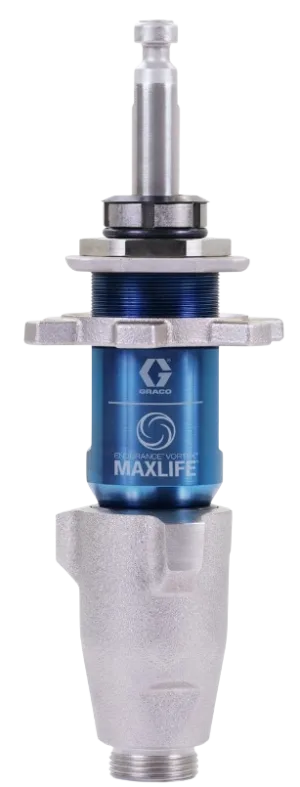

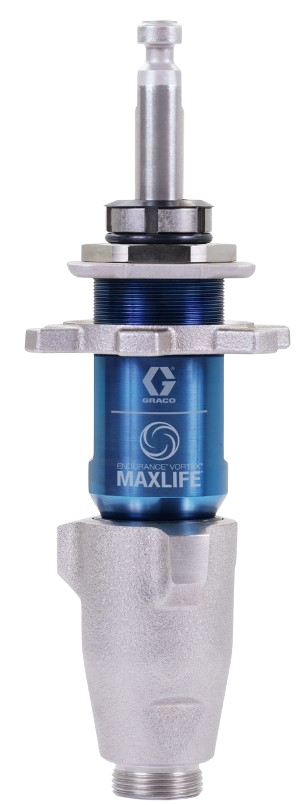

Endurance Pump Swap. Pre-primed lower changes in 60 s no bench-vice, just two pins.
BlueMax II Hose Kit. 50 ft × ¼ in main + 3 ft whip cut pulsation, adding 20 % seal life across the fleet.
RAC X LP & FFLP Tip Pack. Twelve patterns slash overspray 50 % and reduce amp draw perfect for generator nights.
Pump Armor Winter Kit. Anti-rust fluid + storage plug; wake up spring-ready.

Five Habits for 2 000-Hour Pumps

1 — Log gallons. Swap packings every 1 000 L latex / 500 L elastomeric.
2 — Flush warm. 40 °C water dissolves acrylic twice as fast; half-pressure back-flush protects the transducer.
3 — TSL every break. Two drops keep Chromex rods mirror-bright.
4 — Monthly torque. Crankcase bolts 20 N·m; loose bolts pulverize gears.
5 — Stock redundancy. One $70 filter + $220 pump kit beats a $5 000 delay.

Add to Cart → Track → Spray Tomorrow

Scroll the live list, tick your pump kit, filter, rod, hose and guard, then press Add to Cart. One freight fee, one tracking link, one bullet-proof fix see you on tomorrow’s jobsite.
