1. Start Here: The 15-Second Cycling Test
Before you take anything apart, run this simple test to understand what you're dealing with:
- Prime the sprayer and bring it to full working pressure
- Release the gun trigger and engage the trigger safety lock
- Watch and listen — count the seconds between pump cycles
- If the pump kicks on more often than every 15 seconds, pressure is leaking internally
What the result tells you: Rapid cycling (under 15 seconds) with no visible external leaks = packings or valves. Rapid cycling with visible fluid dripping from the throat = packing failure. Machine not cycling but no spray pressure = check the tip, tip filter, and inlet strainer first.
2. The 8 Most Common Causes of Pressure Loss
1
Clogged Inlet Strainer
Very CommonThe inlet strainer (part 244194) sits at the bottom of the suction tube and filters debris from the paint before it enters the pump. When it clogs — with dried paint, lumps, or debris — the pump starves for fluid and can't build pressure. This is always the first thing to check.
Fix
Remove the suction tube. Unscrew the strainer. Clean with solvent or replace. Takes 2 minutes. Graco 244194 Inlet Strainer — $12.99
2
Worn Packings
Very CommonPackings are the seals that allow the displacement rod to build pressure on the downstroke. When they wear, pressure leaks past them internally. The machine cycles constantly, runs but can't reach working pressure, and TSL may drip from the throat area.
Fix
Replace packings. Use 18B260 for Graco 390/395 PC contractor sprayers, 17V781 for Magnum X5/X7/ProX17. Always replace the 239922 inlet valve seat at the same time.
3
Dirty or Worn Outlet Valve
Very CommonThe outlet valve ball must seat perfectly to maintain pressure. Paint particles, dried material, or a worn ball seat can prevent the valve from closing completely. The machine may prime but lose pressure the moment you pull the trigger.
Fix
Remove the outlet valve housing (wrench counterclockwise). Inspect the ball and seat for debris or wear. Clean with solvent. If worn, replace the full outlet valve assembly — included in the Graco 246381 pump repair kit.
4
Worn or Damaged Inlet Valve
CommonThe inlet valve draws fluid into the pump on the upstroke. A damaged inlet valve seat (part 239922) or worn ball allows fluid to flow backward instead of being drawn in, resulting in low or no pressure. This is why we always recommend replacing the 239922 seat at every packing service.
Fix
Replace inlet valve assembly and seat. Part 239922 inlet valve seat is mandatory at every service. Full inlet valve assembly is included in the 246381 kit.
5
Clogged or Worn Spray Tip
CommonA clogged spray tip restricts flow and creates back-pressure that makes the machine feel like it's building pressure — but with no spray output. An oversized (worn) tip orifice causes the opposite: pressure drops because flow rate exceeds what the pump can sustain.
Fix
Remove the gun from the system and test pressure without it. If pressure returns, the tip is the issue. Rotate the RAC X guard 180° to clear a clog, then rotate back to spray. Replace the tip if the orifice appears oval or enlarged.
6
Scored Displacement Rod
CommonEven with new packings, a grooved or scored displacement rod cannot seal properly. If you've just installed new packings and still have pressure loss, the rod is the suspect. Run your fingernail firmly down the length of the rod — any groove you can feel will prevent new packings from sealing.
Fix
Replace the displacement rod. This is a model-specific part — call us at 713-931-4102 with your model number and we'll source the correct rod.
7
Worn Carbon Brushes
Less CommonCarbon brushes conduct electricity to the motor armature. When worn down, motor speed drops — and with it, pump output and pressure. Signs include a motor that sounds slower than normal, sparks visible through the motor vents, or intermittent operation.
Fix
Inspect brushes through the motor vent slots. If worn below 1/4 inch, replace the pair. Never replace just one brush. Model-specific brush sets available at SprayersParts.
8

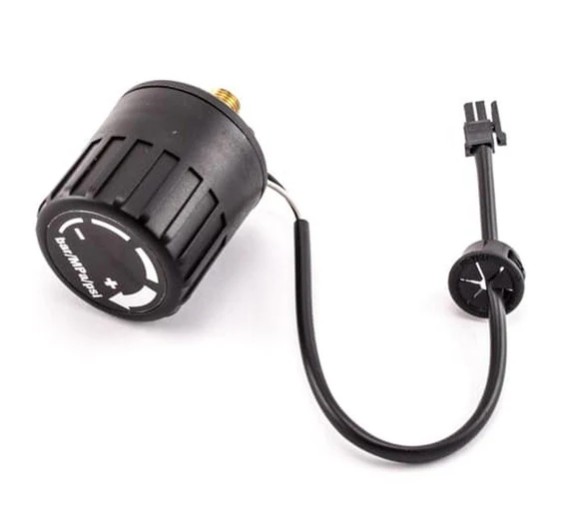

Failed Pressure Control / Transducer
Less CommonOn electronic pressure control machines (Pro series, Ultra series), a faulty pressure transducer can cause the machine to under-perform at the pump level by sending incorrect signals to the control board. The pump may run but the electronic system caps output pressure below the dial setting.
Fix
Diagnose by ruling out all mechanical causes first. If all mechanical components check out, call us to discuss transducer testing and replacement options.
3. Quick Diagnostic Sequence
Follow This Order First
1
Check the inlet strainer (244194). Remove and inspect. If clogged — clean or replace. Test again.
2
Remove the spray tip and test. If pressure returns without the tip — tip is clogged or worn. Replace tip.
3
Run the 15-second cycling test. Rapid cycling = internal leak. Proceed to step 4.
4
Inspect outlet valve. Remove, clean, check ball and seat. Replace if worn.
5
Replace packings + 239922 inlet seat. If cycling persists after clean valves — packings are worn.
6
Inspect displacement rod for scoring. If new packings don't fix it — check the rod.
7
Still no fix? Call us. 713-931-4102 — free phone diagnosis, Mon–Fri 8am–6pm CST.
Always depressurise before any inspection or repair. Trigger the gun to release all pressure, engage trigger lock, and disconnect power before removing any components.
Can't Find the Problem? Call Our Technicians — Free
We diagnose Graco pressure problems over the phone every day. Call 713-931-4102 or shop the parts you need below.
4. Frequently Asked Questions
The most common causes are a clogged inlet strainer (244194), worn packings (18B260 for 390/395 PC), dirty inlet or outlet valves, a scored displacement rod, worn spray tip, or worn carbon brushes. Start with the inlet strainer — it's free to check and takes 2 minutes. Then run the 15-second cycling test.
With the sprayer primed and at working pressure, release the gun trigger and engage the safety lock. Count how many seconds pass before the pump cycles again. If it cycles more frequently than every 15 seconds with no visible external leaks, there is an internal pressure leak — typically worn packings or valves.
The most common reason is a worn inlet valve seat (239922) that wasn't replaced at the same time as the packings. The second most common reason is a scored displacement rod that prevents the new packings from sealing. Run your fingernail down the rod — any grooves mean it needs replacing.
Remove the spray tip from the gun and test pressure without it. If full pressure returns immediately, the tip is clogged or the orifice is worn oversized. Rotate the RAC X guard 180 degrees to clear a clog — if pressure is restored, the tip just had a soft clog. If the orifice looks oval instead of round, the tip is worn and needs replacing.
Yes — call us at 713-931-4102, Monday through Friday 8am–6pm CST. Our technicians diagnose Graco pressure problems every day and will tell you exactly which part you need before you spend a dollar. We'd rather you buy the right part once than the wrong part twice.
Graco No PressurePressure LossGraco 390Graco 395Worn Packings18B260244194 Strainer239922Troubleshooting
Pro tip: Always start diagnosis at the simplest cause first — a clogged inlet strainer or worn tip costs $15 to fix. Don't replace the transducer until you've ruled out mechanical causes.
