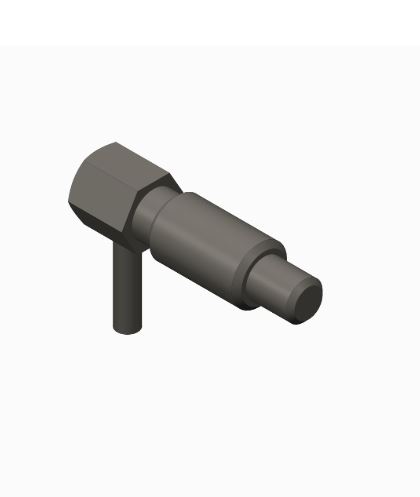

Graco 22038-01 Plunger, Spring, Hanlocking, Retr

Spring-loaded plunger assembly designed to regulate air valve response and maintain smooth retract action in compatible Graco spray systems.

Part Number: 22038-01
Includes plunger and spring components
Supports Hanlocking retract mechanism operation
Ensures consistent air control performance
Built for industrial-grade spray equipment use

Based on 0 reviews

Description

Air Valve Plunger Assembly for Controlled Spray System Retraction

Compatible Machines

Graco airless spray systems using Hanlocking retract assemblies
Graco industrial fluid handling equipment with spring-loaded plunger design
Selected Graco pump and valve configurations requiring 22038-01 retrofit

Precision-engineered plunger and spring assembly supporting controlled air valve actuation and smooth retract operation in high-pressure spray systems.

Part Number: 22038-01
Includes plunger, spring, and Hanlocking retract components
Designed for consistent valve response under load
Supports stable air control in industrial spray applications

Frequently Asked Questions

It controls air valve actuation and supports smooth retract function within compatible Graco spray systems.

No, it is limited to specific Graco systems that use the Hanlocking retract plunger configuration.

The kit includes the plunger, spring, and associated Hanlocking retract components for full assembly replacement.
