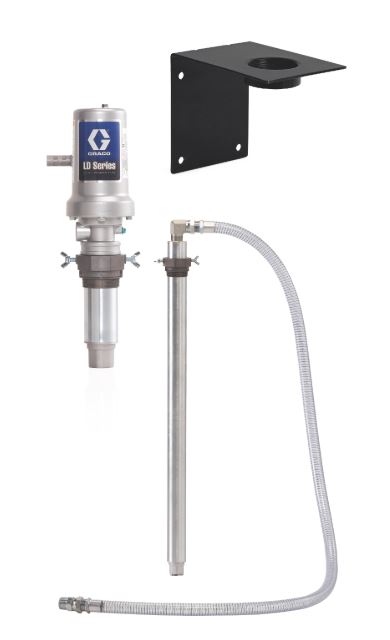

Graco 24H692 Kit, 3:1 Wall Mount Drum-Npt
Wall-mounted 3:1 pneumatic pump kit for efficient transfer of lubricating oils from standard 55-gallon drums in industrial and service applications.
- 3:1 air-operated piston pump for oil dispensing
- Designed for 55-gallon (200 L) drum systems
- NPT fluid connections for standard installations
- Wall-mount configuration for fixed lubrication setups
- Compatible with Graco LD Series oil transfer systems
Reliable Wall-Mounted Oil Transfer Package for Industrial Lubrication
Compatible Machines
| Compatible Equipment | Compatibility Details |
|---|---|
| Graco LD Series Oil Dispensing Systems | Designed for LD Series 3:1 pneumatic oil pump packages using a wall-mounted 55-gallon (200 L) drum configuration with NPT connections. |
| 55 Gallon (200 L) Drum Oil Transfer Systems | Engineered for industrial oil transfer and dispensing installations utilizing standard NPT fittings. |
| CE-Marked LD Series Pump Packages | Compatible with CE-configured LD Series wall mount drum packages, including model 24H692. |
Product Overview
The Graco 24H692 Kit, 3:1 Wall Mount Drum-NPT is a complete pneumatic oil pump package engineered for dependable bulk oil transfer and dispensing in industrial, automotive, fleet maintenance, and manufacturing environments. Built around Graco's proven LD Series platform, this package is designed to mount securely to a wall while drawing lubricant directly from a standard 55-gallon (200-liter) drum through NPT connections.
The package features a durable 3:1 air-operated piston pump capable of delivering consistent oil flow with a maximum working pressure of up to 750 psi (52 bar). It includes a factory-configured air regulator and a 2-way vented valve, providing efficient air control and dependable system operation while simplifying installation.
Designed for lower-volume lubrication applications, the LD Series pump incorporates Graco's advanced engineering features that reduce maintenance, minimize downtime, and improve long-term reliability. The patented cup-and-plate sealing design eliminates conventional O-rings in critical locations, while the modular air valve and self-cleaning pilot valves help ensure smooth cycling even in demanding shop environments.
Key Features
- 3:1 pneumatic piston pump for dependable oil transfer and dispensing.
- Designed for 55-gallon (200 L) drum wall-mounted installations.
- Standard NPT fluid connections for easy integration into existing systems.
- Includes 2-way vented valve and air regulator for controlled operation.
- Maximum working pressure of 750 psi (52 bar).
- High flow capacity up to 7.8 GPM for efficient lubricant delivery.
- Patented sealing system designed to reduce wear and maintenance.
- Modular air valve allows easier servicing and installation flexibility.
- Built-in thermal relief and inlet strainer help protect equipment and improve service life.
Applications
The Graco 24H692 package is well suited for facilities that require reliable bulk oil distribution, including automotive service centers, truck maintenance shops, industrial plants, heavy equipment service facilities, manufacturing operations, and centralized lubrication systems where consistent oil delivery and long service life are essential.
