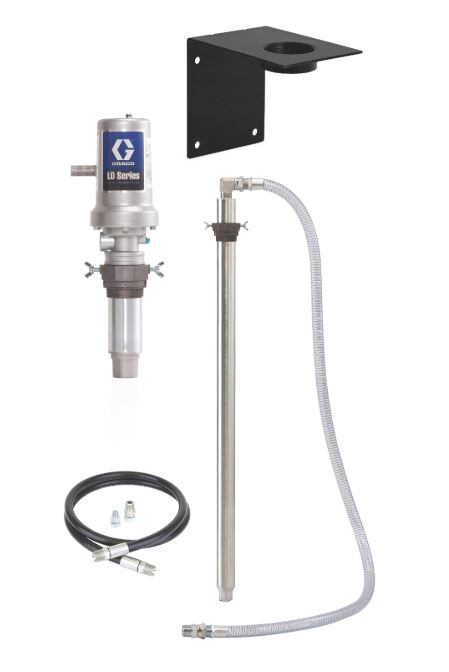

Graco 24H699 Kit, 3:1 Wall Mount Tote-Bspp
Wall-mounted 3:1 pneumatic oil pump system for direct lubricant transfer from industrial IBC totes, delivering stable flow for maintenance and workshop dispensing operations.
- 3:1 air-operated piston pump for oil transfer
- Designed for IBC tote (bulk container) systems
- BSPP threaded connections for secure integration
- Wall-mount setup for fixed lubrication installations
Wall-Mounted Tote Oil Transfer System with BSPP Connection for Industrial Lubrication
Compatible Machines
| Equipment Type | Compatibility Details |
|---|---|
| Graco LD Series Lubrication Systems | Works with LD Series 3:1 pneumatic pump configurations designed for tote-mounted oil dispensing systems with BSPP connections. |
| IBC Tote Lubrication Units | Suitable for direct oil transfer from industrial bulk tote containers used in maintenance and workshop environments. |
| Centralized Lubrication Networks | Integrates into plant-wide systems requiring BSPP-threaded fluid distribution lines. |
| Industrial Service & Maintenance Carts | Compatible with mobile or fixed lubrication carts using tote-based oil supply setups. |
Product Overview
The Graco 24H699 Kit, 3:1 Wall Mount Tote-BSPP is a pneumatic oil transfer package designed for dispensing lubricants directly from industrial tote (IBC) containers. Built on Graco’s LD Series platform, it provides consistent 3:1 ratio pumping performance for efficient lubrication in service and maintenance operations.
Featuring BSPP threaded connections, it is suited for systems requiring British Standard Pipe Parallel fittings, ensuring secure and leak-resistant integration in compatible piping networks. The wall-mounted design supports stable installation while optimizing workspace efficiency in industrial environments.
Engineered for durability and continuous operation, the system incorporates a modular air motor design and wear-resistant sealing technology to reduce maintenance requirements and extend service life under demanding conditions.
Key Features
- 3:1 air-operated piston pump for controlled oil transfer
- Designed for industrial IBC tote lubrication systems
- BSPP threaded connections for parallel pipe compatibility
- Wall-mounted configuration for fixed installations
- Compatible with LD Series lubrication platforms
