Portable Oil Dispensing Solution for Professional Service Applications
Compatible Machines
| Compatible Equipment | Compatibility Details |
| Graco LD Series Oil Dispensing Systems | Designed for LD Series 5:1 pneumatic oil dispensing applications. |
| Mobile Oil Dispensing Carts | Suitable for professional mobile lubrication systems handling standard oil drums. |
| Automotive Service Equipment | Compatible with oil dispensing stations used in automotive repair and fleet maintenance facilities. |
| Industrial Lubrication Systems | Integrates with NPT-threaded oil transfer and dispensing equipment for industrial maintenance. |
Product Overview

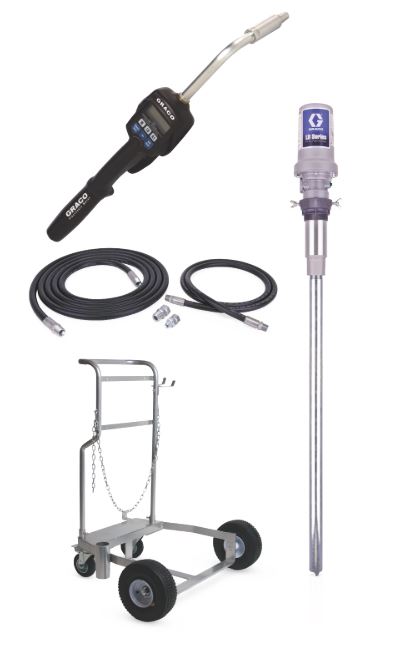

The Graco 24H942 Kit, 5:1 Cart-NPT is a complete mobile oil dispensing package engineered to deliver dependable lubrication performance in demanding service environments. Equipped with a 5:1 pneumatic piston pump, the system provides efficient oil transfer while allowing technicians to move the unit easily between work areas.
The integrated cart simplifies handling of oil drums while the NPT threaded connections support straightforward installation with compatible dispensing accessories. Designed for durability and consistent operation, the package is well suited for automotive, fleet, agricultural, and industrial maintenance applications.
Key Features
- 5:1 pneumatic pump delivers consistent oil flow for professional dispensing applications.
- Three Inch Air Motor increases pumping performance for efficient fluid delivery.
- Engineered for Durability with a patented cup and plate design that eliminates O-rings for extended service life.
- Extended Seal Life is achieved through an in-line pump design that minimizes component wear.
- Pilot Valves utilize a self-cleaning design to reduce stalling and improve reliability in contaminated air environments.
- Built-In Thermal Relief and Inlet Strainer help protect the pump from excessive pressure and debris.
- Heavy-duty mobile cart provides convenient transport between maintenance locations.
- NPT threaded ports enable compatibility with standard lubrication system components.
Frequently Asked Questions
The Graco 24H942 is a mobile pneumatic oil dispensing package designed to transfer and dispense lubricating oil efficiently in automotive, fleet, agricultural, and industrial maintenance operations.
It is designed for Graco LD Series oil dispensing systems and other compatible lubrication equipment using NPT-threaded connections.
The package includes a 5:1 air-operated piston pump optimized for controlled oil transfer and dispensing.
The integrated cart allows the dispensing package to be moved easily between workstations, improving productivity and reducing downtime in busy maintenance facilities.
