Graco 24K796 Kit, 5:1 Tank Package Npt

Graco LD Series Oil Dispensing System Overview

Compatible Machines & Systems

What Is the Graco 24K796 Kit, 5:1 Tank Package NPT?

The Graco 24K796 Kit, 5:1 Tank Package NPT is a complete pneumatic oil dispensing package engineered for professional lubrication and fluid handling applications. Built around the proven LD Series 5:1 Deluxe Oil Pump, this package provides reliable oil transfer and dispensing performance for automotive service facilities, fleet maintenance operations, and industrial lubrication environments.

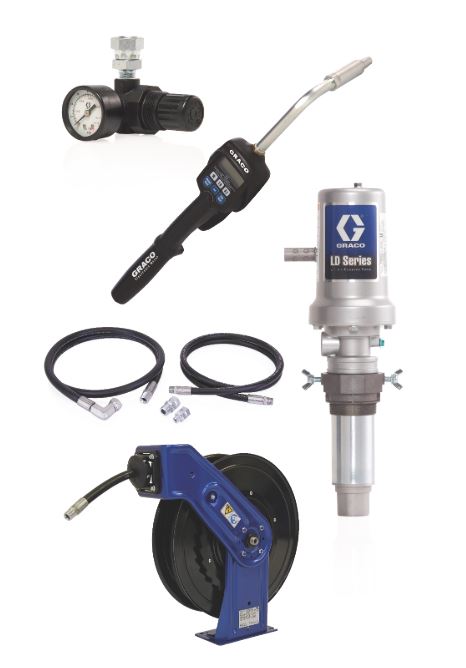

The package combines a high-performance air-operated piston pump with a hose reel and electronic preset meter, creating an efficient solution for controlled oil delivery. Its NPT-threaded configuration allows integration into existing lubrication systems while maintaining dependable fluid flow and pressure control.

Key Features

• Three Inch Air Motor provides enhanced power and improved oil flow performance.
• Engineered for Durability with a patented cup-and-plate design that reduces wear compared to traditional O-ring systems.
• Extended Seal Life through an in-line pump design that aligns the air motor piston and fluid piston rods.
• Pilot Valves feature a patented self-cleaning design for dependable operation in demanding shop environments.
• Built-in thermal relief protection and inlet strainer help safeguard equipment from contamination and pressure-related issues.
• Includes a 50-foot hose reel and electronic preset dispensing meter for controlled fluid delivery.

Package Components

Technical Highlights

Frequently Asked Questions
