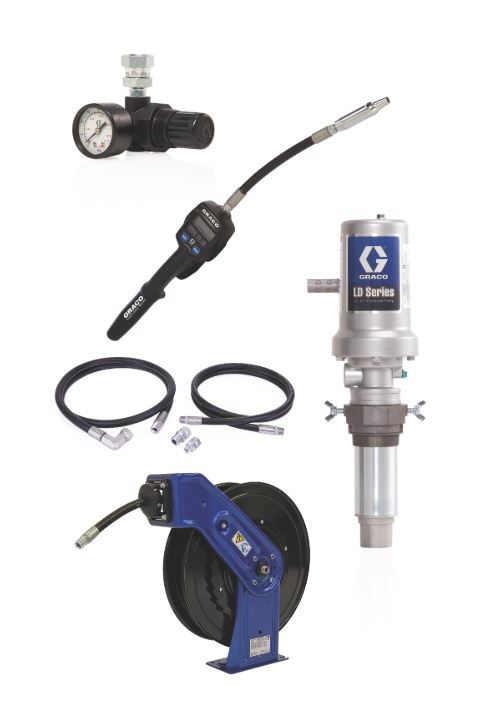

Graco 24K800 Kit, 5:1 Tank Package Npt

Complete 5:1 tank-mounted oil dispensing package designed for efficient bulk oil transfer and controlled delivery in professional service environments.

  • LD Series 5:1 air-operated oil pump for high-flow performance
  • Up to 6.7 GPM output for efficient dispensing operations
  • Includes 50 ft SD Series hose reel for extended reach
  • Electronic preset meter for accurate oil measurement
  • NPT tank-mounted configuration for easy system integration

$3210
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

High-Performance Oil Dispensing System Overview

Compatible Machines & Systems

Compatible Machine / System Application
Graco LD Series Oil Dispensing Systems Designed for integration with LD Series 5:1 air-operated oil pump systems.
Bulk Oil Tank Installations Used for tank-mounted oil storage and controlled dispensing setups.
Automotive Service Centers Supports oil dispensing in repair shops and quick-service maintenance bays.
Fleet Maintenance Facilities Ideal for centralized lubrication and multi-vehicle service operations.
Industrial Lubrication Systems Compatible with NPT-connected oil handling and transfer systems.

What Is the Graco 24K800 Kit, 5:1 Tank Package NPT?

The Graco 24K800 Kit, 5:1 Tank Package NPT is a complete professional oil dispensing solution engineered for efficient transfer of lubricating oil from bulk storage tanks. Built around the durable LD Series 5:1 air-operated oil pump, it delivers reliable flow performance for automotive, fleet, and industrial lubrication applications.

This package integrates a pneumatic pump, hose reel, and electronic dispensing meter into a ready-to-install system designed for controlled oil delivery. Its 5:1 pressure ratio provides strong output performance, making it suitable for medium- to high-volume dispensing environments.

The system is designed with durability and service efficiency in mind, featuring advanced pump construction, self-cleaning valve technology, and integrated protection components that help reduce downtime and extend equipment life. NPT connections ensure easy installation into existing oil distribution systems.

Key Features

  • LD Series 5:1 Air-Operated Pump delivers high-efficiency oil transfer performance.
  • Heavy-Duty Pump Construction ensures long service life in demanding environments.
  • Self-Cleaning Pilot Valves help maintain consistent operation and reduce maintenance needs.
  • Electronic Preset Meter provides accurate and controlled oil dispensing.
  • Thermal Relief Protection safeguards system components from pressure buildup.
  • NPT Tank-Mounted Design allows seamless integration into bulk oil systems.

Package Components

Component Description
Oil Pump LD Series 5:1 Universal Air-Operated Oil Pump
Hose Reel SD Series 50 ft oil dispensing hose reel assembly
Dispensing Meter Electronic preset oil meter with rigid extension
Mounting Kit Tank-mounted NPT installation hardware

Technical Specifications

Pump Ratio 5:1
Maximum Flow Rate Up to 6.7 GPM
Maximum Working Pressure 750 PSI
Application Lubricating Oil Dispensing
Mounting Type Tank Mounted (NPT Connection)

Frequently Asked Questions

It is used for controlled dispensing and transfer of lubricating oil from bulk storage tanks in professional service environments.

Yes, it includes a 50 ft hose reel and an electronic preset oil dispensing meter.

The pump generates five times the air pressure into fluid pressure, enabling efficient oil transfer and dispensing.

It is commonly installed in automotive workshops, fleet maintenance facilities, industrial plants, and lubrication stations.
