Graco 24K832 Kit, 3:1 Tank Package Npt
Complete 3:1 tank-mounted oil dispensing package designed for reliable transfer and controlled delivery of lubricating oil in professional maintenance environments.
- LD Series 3:1 air-operated pump for consistent oil flow
- Up to 7.8 GPM output for efficient dispensing performance
- Includes hose reel for extended operational reach
- Electronic preset meter for accurate oil measurement
- NPT tank-mounted design for easy system integration
Industrial Oil Dispensing System Overview
Compatible Machines & Systems
| Compatible Machine / System | Application |
|---|---|
| Graco LD Series Oil Dispensing Systems | Designed for integration with LD Series 3:1 air-operated oil pump setups. |
| Bulk Oil Tank Installations | Used in tank-mounted lubrication systems for controlled oil dispensing. |
| Automotive Service Centers | Supports oil dispensing in workshops, garages, and service bays. |
| Fleet Maintenance Facilities | Ideal for centralized lubrication and multi-vehicle servicing operations. |
| Industrial Lubrication Systems | Compatible with NPT-based oil handling and transfer equipment. |
What Is the Graco 24K832 Kit, 3:1 Tank Package NPT?
The Graco 24K832 Kit, 3:1 Tank Package NPT is a complete oil dispensing system engineered for efficient transfer of lubricating oil from bulk storage tanks. Built around the reliable LD Series 3:1 air-operated oil pump, it delivers consistent performance for automotive, fleet, and industrial lubrication applications.
This integrated package combines a pneumatic pump, hose reel, and electronic dispensing meter into a ready-to-install solution. The 3:1 ratio provides efficient flow for low- to medium-pressure oil dispensing tasks while maintaining accuracy and operational stability.
Designed for durability, the system features advanced pump construction, self-cleaning valve technology, and protective components that help reduce downtime and extend service life. NPT connections ensure straightforward integration into existing oil distribution setups.
Key Features
- LD Series 3:1 Air-Operated Pump provides steady and efficient oil transfer performance.
- Heavy-Duty Pump Construction ensures long-term reliability in demanding environments.
- Self-Cleaning Pilot Valves reduce maintenance and improve operational consistency.
- Electronic Preset Meter enables precise and controlled oil dispensing.
- Thermal Relief Protection helps prevent pressure-related system damage.
- NPT Tank-Mounted Design allows easy installation into bulk oil systems.

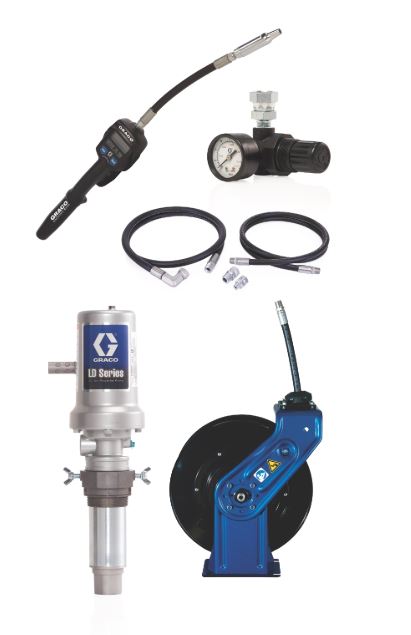

Package Components
| Component | Description |
|---|---|
| Oil Pump | LD Series 3:1 Universal Air-Operated Oil Pump |
| Hose Reel | SD Series 50 ft oil dispensing hose reel assembly |
| Dispensing Meter | Electronic preset oil meter with rigid extension |
| Mounting Kit | Tank-mounted NPT installation hardware |
Technical Specifications
| Pump Ratio | 3:1 |
|---|---|
| Maximum Flow Rate | Up to 7.8 GPM |
| Maximum Working Pressure | 750 PSI |
| Application | Lubricating Oil Dispensing |
| Mounting Type | Tank Mounted (NPT Connection) |
