Complete 3:1 tank-mounted oil dispensing system designed for reliable transfer and precise control of lubricating oil in automotive and industrial service environments.
| Compatible Machine / System | Application |
|---|---|
| Graco LD Series Oil Dispensing Systems | Works with LD Series 3:1 air-operated oil pump configurations for controlled dispensing. |
| Bulk Oil Tank Installations | Used in tank-mounted lubrication systems for efficient oil transfer and delivery. |
| Automotive Service Centers | Supports oil dispensing in repair shops, garages, and maintenance facilities. |
| Fleet Maintenance Facilities | Ideal for centralized lubrication systems servicing multiple vehicles. |
| Industrial Lubrication Systems | Compatible with NPT-connected oil handling and distribution setups. |

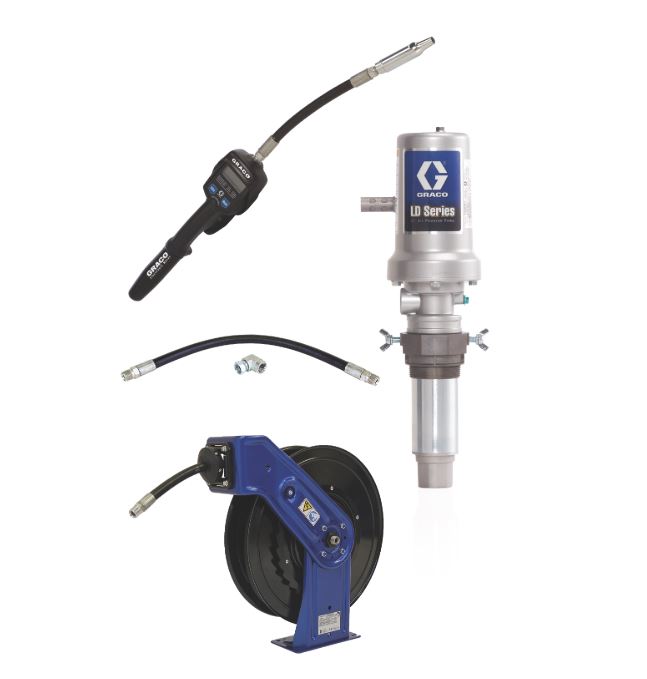

The Graco 24K836 Kit, 3:1 Tank Package NPT is a complete professional oil dispensing system designed for efficient transfer of lubricating oil from bulk storage tanks. Built around the reliable LD Series 3:1 air-operated oil pump, it delivers consistent performance for automotive, fleet, and industrial lubrication applications.
This integrated package combines a pneumatic pump, hose reel, and electronic dispensing meter into a ready-to-install solution for controlled and accurate oil delivery. The 3:1 ratio provides stable flow performance suitable for low- to medium-volume dispensing environments.
Engineered for durability and reduced maintenance, the system features robust pump construction, self-cleaning valve technology, and protective components that enhance operational reliability. NPT connections ensure simple integration into existing oil distribution systems.
| Component | Description |
|---|---|
| Oil Pump | LD Series 3:1 Universal Air-Operated Oil Pump |
| Hose Reel | Heavy-duty 50 ft oil dispensing hose reel assembly |
| Dispensing Meter | Electronic preset oil meter for precise fluid control |
| Mounting Kit | Tank-mounted NPT installation hardware |
