High-performance 5:1 tank-mounted oil dispensing system designed for fast, accurate, and controlled lubrication fluid transfer in demanding service environments.
| Compatible Machine / System | Application |
|---|---|
| Graco LD Series Oil Dispensing Systems | Designed for LD Series 5:1 air-operated pump configurations for high-volume oil transfer. |
| Bulk Oil Tank Installations | Used in tank-mounted lubrication systems for efficient and controlled dispensing. |
| Automotive Service Centers | Supports oil dispensing in workshops, garages, and professional repair facilities. |
| Fleet Maintenance Facilities | Ideal for centralized lubrication systems servicing multiple vehicles and equipment. |
| Industrial Lubrication Systems | Compatible with NPT-based oil handling and distribution setups in industrial environments. |

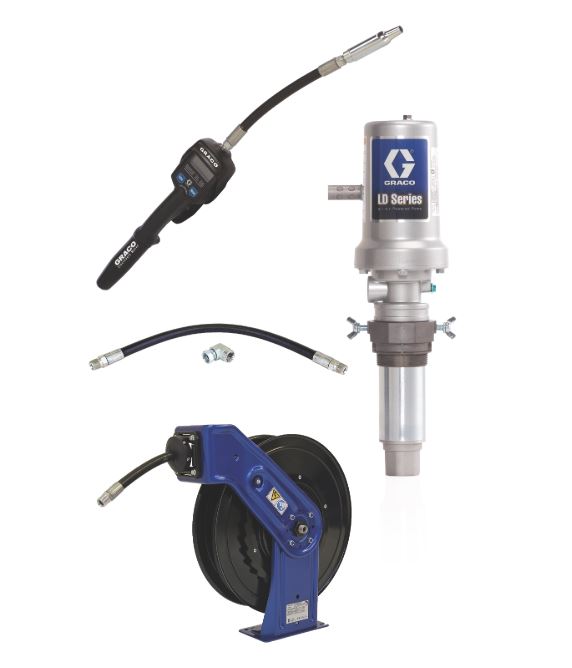

The Graco 24K837 Kit, 5:1 Tank Package NPT is a professional-grade oil dispensing system designed for high-efficiency transfer of lubricating oil from bulk storage tanks. It is built around the powerful LD Series 5:1 air-operated oil pump, delivering strong and consistent output for demanding service environments.
This complete package integrates a pneumatic pump, hose reel, and electronic preset dispensing meter into a single ready-to-install system. The 5:1 ratio provides higher pressure output, making it suitable for medium to high-volume oil dispensing applications where speed and reliability are essential.
Engineered for durability, the system features robust pump construction, self-cleaning valve technology, and integrated safety components that help reduce maintenance and improve operational efficiency. Its NPT tank-mounted design allows seamless integration into existing lubrication systems.
| Component | Description |
|---|---|
| Oil Pump | LD Series 5:1 Universal Air-Operated Oil Pump |
| Hose Reel | Heavy-duty 50 ft oil dispensing hose reel assembly |
| Dispensing Meter | Electronic preset oil meter for accurate fluid control |
| Mounting Kit | NPT tank-mounted installation hardware |
