High-capacity 5:1 tank-mounted oil dispensing package designed for efficient transfer and precise control of lubricating oil in demanding service environments.
| Compatible Machine / System | Application |
|---|---|
| Graco LD Series Oil Dispensing Systems | Designed for integration with LD Series 5:1 air-operated oil pump setups. |
| Bulk Oil Tank Installations | Used in tank-mounted lubrication systems for controlled high-flow dispensing. |
| Automotive Service Centers | Supports oil dispensing in workshops, garages, and service bays. |
| Fleet Maintenance Facilities | Ideal for centralized lubrication and high-volume vehicle servicing operations. |
| Industrial Lubrication Systems | Compatible with NPT-connected oil handling and transfer equipment. |
The Graco 24K833 Kit, 5:1 Tank Package NPT is a complete professional oil dispensing system engineered for high-efficiency transfer of lubricating oil from bulk storage tanks. Built around the durable LD Series 5:1 air-operated oil pump, it delivers strong and consistent flow performance for demanding automotive, fleet, and industrial applications.
This integrated package combines a pneumatic pump, hose reel, and electronic dispensing meter into a ready-to-install solution designed for accurate and controlled oil delivery. The 5:1 ratio provides higher output pressure, making it suitable for medium- to high-volume dispensing environments.
Engineered for durability and long service life, the system features robust pump construction, self-cleaning valve technology, and built-in protection components that reduce maintenance requirements. NPT connections ensure straightforward installation into existing lubrication systems without major modifications.

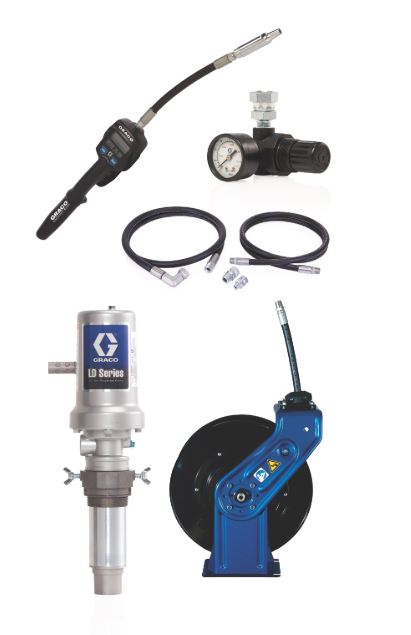

| Component | Description |
|---|---|
| Oil Pump | LD Series 5:1 Universal Air-Operated Oil Pump |
| Hose Reel | Heavy-duty 50 ft oil dispensing hose reel assembly |
| Dispensing Meter | Electronic preset oil meter for precise fluid control |
| Mounting Kit | Tank-mounted NPT installation hardware |
