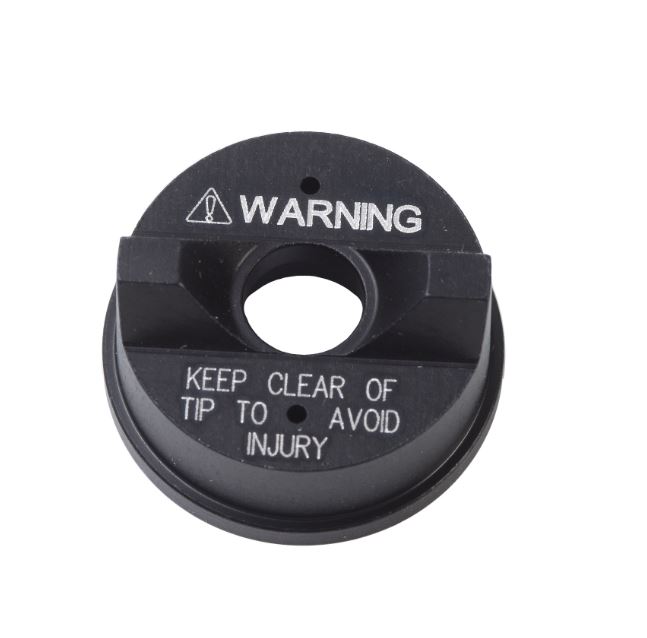

Graco 262701 Kit, Air Cap, Asm, Int Mix, Chop
Air cap assembly designed for internal mix chop spray systems, delivering controlled atomization and consistent fiber-reinforced spray patterns in composite applications.
- Part number: 262701
- Internal mix chop configuration for resin/catalyst systems
- Used in Graco RS series chop spray guns
- Supports fiberglass and composite spray applications
- Precision air cap for stable spray pattern control
Graco 262701 Internal Mix Chop Air Cap Assembly – Overview & Compatibility
The Graco 262701 is an Air Cap Assembly (ASM) designed for internal mix chop spray systems used in high-performance industrial coating and spraying applications. It is part of Graco’s internal mix front head system where the material is atomized and mixed internally before exiting the spray gun, ensuring a consistent, high-quality chop spray pattern.
This component is specifically engineered for durability and precision in demanding environments where reinforced coatings, fiberglass chop, or gel applications are required.
Compatible Machines / Systems
| Compatible Equipment | System Type | Application |
|---|---|---|
| Graco RS Series Spray Guns | Internal Mix Chop Systems | Composite spraying, fiberglass chop, gel coat applications |
| Graco Internal Mix Chop Front Heads (Model 24E442) | Chop Spray Configuration | Reinforced resin and catalyst mixing applications |
| Graco High Flow Internal Mix Systems | Industrial coating systems | High-volume chop spray operations |
This air cap is explicitly listed as part of the internal mix chop front head assembly used in Graco RS spray gun configurations, ensuring compatibility only with designated internal mix chop systems.
What is Graco 262701 Kit, Air Cap Assembly, Internal Mix Chop?
The Graco 262701 Air Cap Assembly is a precision-engineered spray component responsible for shaping and directing the atomized spray pattern in internal mix chop systems. In these systems, resin and catalyst are mixed internally, and the air cap ensures proper atomization and fiber chopping consistency before material is sprayed onto a surface.
It is commonly used in systems that require controlled fiber reinforcement distribution, such as fiberglass lamination and composite manufacturing processes.
This part is included in the internal mix chop air cap kit and works alongside components such as the diffuser, mixing element, and check valve assembly to maintain proper spray performance and mixing efficiency.
Key Functional Role
- Controls and stabilizes internal mix chop spray pattern
- Ensures uniform atomization of resin and catalyst mixture
- Works with internal diffuser and mixing element for consistent output
- Supports high-flow industrial composite spraying applications
