90° steel elbow fitting designed to connect 1/4 in. female and 1/8 in. male threaded ports while simplifying fluid line routing in tight spaces.
| Machine / System | Compatibility |
|---|---|
| Graco Automatic Lubrication Systems | Compatible with Graco lubrication equipment and centralized lubrication systems that require a 1/4 in. female × 1/8 in. male 90° steel street elbow fitting. |
| Graco Grease & Fluid Transfer Equipment | Suitable for installations using matching NPT threaded ports. Always verify the parts manual for your specific equipment before ordering. |

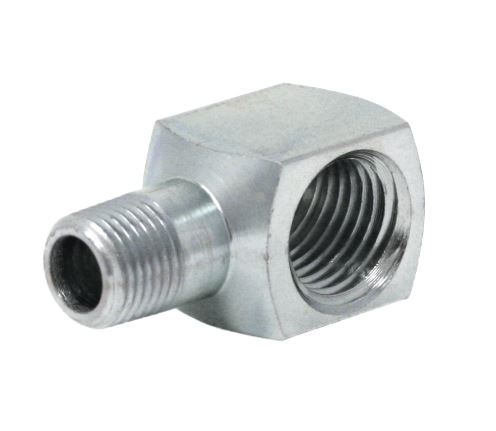

The Graco 560530 Fitting, Elb Stl 1/4F X 1/8M is a genuine OEM 90° steel street elbow designed to connect threaded fluid or lubrication lines while changing the direction of flow in tight installation spaces. Its durable steel construction provides dependable performance in demanding industrial lubrication applications.
This elbow fitting is commonly used in Graco automatic lubrication systems, grease distribution equipment, and industrial fluid handling assemblies where a right-angle connection is required. It allows efficient hose or tubing routing without placing unnecessary stress on connected components.
| Part Number | 560530 |
|---|---|
| Product Type | 90° Street Elbow Fitting |
| Material | Steel |
| Female Thread | 1/4 in. |
| Male Thread | 1/8 in. |
| Configuration | Female × Male |
Before installation, inspect the threads for damage and ensure the connection sizes match your equipment. Use an appropriate thread sealant when specified by the equipment manufacturer and tighten the fitting to the recommended torque to help prevent leaks or thread damage.
