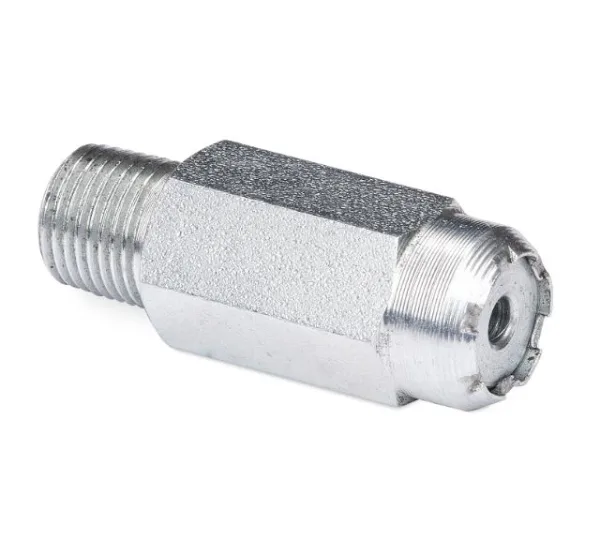

Graco 563162 Valve, Relief 150 Psi
Relieves excess pressure in low-pressure lubrication systems to protect components while maintaining lubricant flow to unblocked lubrication points.
- 150 PSI (10 bar) relief pressure
- 1/8 NPT threaded connection
- Compatible with MSP, MXP, MJ, and MHH divider valves
- Automatic reset after blockage is cleared
System Compatibility & Product Overview
Compatible Machines & Divider Valve Systems
| Compatible Equipment | Application |
|---|---|
| MSP Divider Valves | Progressive automatic lubrication systems |
| MXP Divider Valves | Centralized grease and oil lubrication |
| MJ Divider Valves | Industrial lubrication distribution |
| MHH Divider Valves | Heavy-duty lubrication systems |
| On-Road Vehicles | Automatic lubrication systems |
| Off-Road Equipment | Centralized grease and oil applications |
| Low-Pressure Spin-On Oil Filter Assemblies | 150 PSI external relief protection |
About the Graco 563162 Relief Valve
The Graco 563162 Valve, Relief, 150 PSI is a genuine OEM automatic relief indicator designed for low-pressure lubrication systems and spin-on oil filter assemblies. It relieves excess pressure when restrictions occur while allowing lubricant to continue reaching unblocked lubrication points, helping maintain system operation and protect equipment.
Configured with a 1/8 NPT connection and a 150 PSI (10 bar) relief setting, this valve automatically resets once the blockage has been cleared. It is suitable for oil and grease lubrication systems that utilize MSP, MXP, MJ, and MHH divider valves.
Key Features
- Genuine OEM Graco automatic relief indicator.
- 150 PSI (10 bar) pressure relief setting.
- 1/8 NPT threaded connection.
- Automatically relieves pressure caused by blocked lubrication lines.
- Allows lubrication to continue to unaffected points.
- Self-resetting design after blockage removal.
- Compatible with grease and oil lubrication systems.
Technical Specifications
| Part Number | 563162 |
|---|---|
| Product Type | Automatic Relief Indicator / Relief Valve |
| Connection Size | 1/8 NPT |
| Relief Pressure | 150 PSI (10 bar) |
| Compatible Material | Oil and Grease |
| Primary Application | Low-pressure automatic lubrication systems and spin-on oil filters |
