Advanced Electric Diaphragm Pump for Precision Fluid Transfer
Compatible Machines
- Graco Quantm Electric Double Diaphragm (EODD) Pump Systems
- Industrial setups using HE Series Quantm Pumps
- Fluid handling systems designed for QHE-series configurations
- OEM and replacement applications requiring high-efficiency electric diaphragm pumps
Product Overview

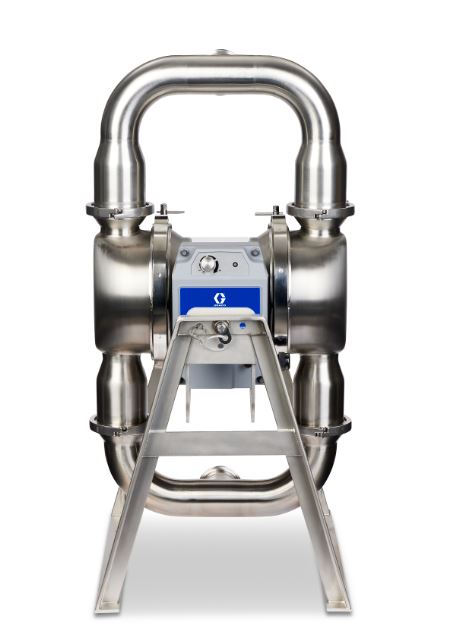

The Graco HE120-0150 Quantm Pump, QHE-PHFF1SSPTPSEPSSA0021 is a high-performance electric-operated double diaphragm (EODD) pump built to optimize energy efficiency and deliver consistent, controlled fluid flow. As part of the innovative Quantm platform, it eliminates the inefficiencies of compressed air systems while improving operational reliability.
Engineered for demanding industrial environments, this pump supports a wide range of fluid transfer applications including chemicals, coatings, and process fluids. Its robust construction and advanced electric drive system ensure reduced maintenance, quieter operation, and long-term durability.
Key Features
| Electric Drive Technology | Improves efficiency and eliminates the need for compressed air systems |
| Quantm System Integration | Ensures smooth, consistent flow with enhanced control |
| Low Energy Consumption | Reduces operational costs compared to pneumatic alternatives |
| Industrial-Grade Build | Designed for durability in continuous-duty applications |
| Quiet Operation | Electric design minimizes noise and vibration during use |
Applications
- Chemical transfer and dosing systems
- Industrial coatings and finishing lines
- Water and wastewater processing
- General industrial fluid handling
- OEM equipment integration
Installation & Usage Tips
- Confirm compatibility with your Quantm system setup before installation
- Install in a well-ventilated, clean environment for optimal performance
- Regularly inspect seals and diaphragms for wear
- Use fluids compatible with pump materials to prevent damage
- Follow electrical and safety guidelines during setup
Frequently Asked Questions
It eliminates compressed air losses and uses a direct electric drive, resulting in significantly lower energy consumption and improved control.
It is widely used in chemical processing, coatings, water treatment, and other industrial fluid handling applications.
Yes, it is engineered for continuous-duty use with reliable performance and minimal maintenance requirements.
It can handle various industrial fluids such as chemicals, coatings, and process liquids, depending on material compatibility.
