Electric Hygienic Diaphragm Pump for High-Efficiency Fluid Transfer Systems
Compatible Machines & Industrial Applications
- Food & Beverage Processing Lines – hygienic transfer of liquids such as syrups, dairy, oils, and sauces
- Pharmaceutical Manufacturing Systems – sterile fluid handling for sensitive production environments
- Cosmetic Production Equipment – suitable for emulsions, creams, and liquid formulations
- Hygienic CIP/SIP Systems – compatible with clean-in-place and sterilization processes
- Industrial Fluid Transfer Skids – retrofit solution for pneumatic diaphragm pump systems

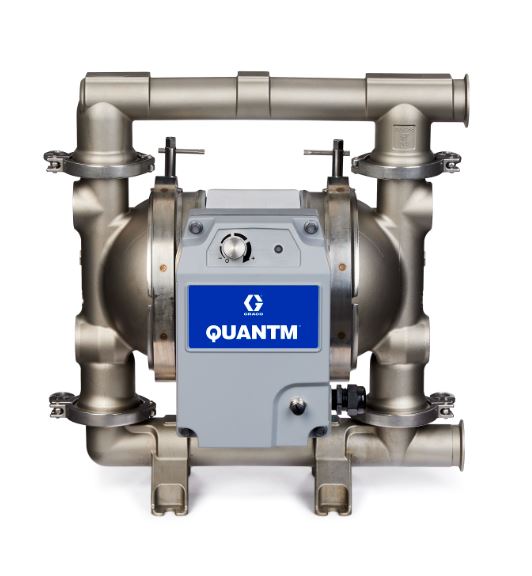

What is Graco QUANTM HE80-0226 Pump?
The Graco QUANTM HE80-0226 is a high-performance electric double diaphragm pump designed for hygienic and industrial fluid transfer applications. It replaces traditional air-operated diaphragm systems with an electric drive that improves efficiency, reduces energy consumption, and minimizes maintenance requirements.
Built with the configuration QHD-FGFF2SSPTPSPTS130021, this pump features sanitary-grade materials and precision-engineered components for demanding process environments where cleanliness, reliability, and consistent flow are essential.
It is designed for continuous-duty operation across food, beverage, pharmaceutical, and personal care industries requiring contamination-free fluid handling.
Technical Specifications
- Maximum flow rate: up to 80 GPM (303 L/min)
- Maximum pressure: 100 psi (6.9 bar)
- Wetted parts: 316/316L stainless steel construction
- Connection type: 2-inch sanitary tri-clamp fittings
- Electric drive system for energy-efficient operation
Key Features & Advantages
- Eliminates need for compressed air systems
- Stable, low-pulsation fluid transfer performance
- Designed for hygienic and sanitary process compliance
- Seal-less diaphragm structure reduces leak risks
- Supports direct replacement of pneumatic pumps
Frequently Asked Questions
It is designed to replace pneumatic diaphragm pumps with an electric alternative that improves energy efficiency and reduces operational costs.
Yes, it uses 316/316L stainless steel and sanitary tri-clamp connections, making it suitable for food, beverage, pharmaceutical, and cosmetic applications.
Yes, it is engineered as a direct retrofit solution for many pneumatic diaphragm pump installations with minimal system changes.
It is widely used in food processing, beverage production, pharmaceuticals, cosmetics, and hygienic chemical transfer systems.
