Electric Hygienic Diaphragm Pump for Efficient Industrial Fluid Handling
Compatible Machines & Process Systems
- Food & Beverage Processing Systems – hygienic transfer of liquids such as dairy, syrups, and edible oils
- Pharmaceutical Manufacturing Equipment – sterile fluid handling for sensitive production environments
- Cosmetic Production Lines – suitable for creams, gels, emulsions, and liquid formulations
- CIP/SIP Hygienic Systems – compatible with clean-in-place and sterilization processes
- Industrial Fluid Transfer Skids – direct retrofit for pneumatic diaphragm pump systems

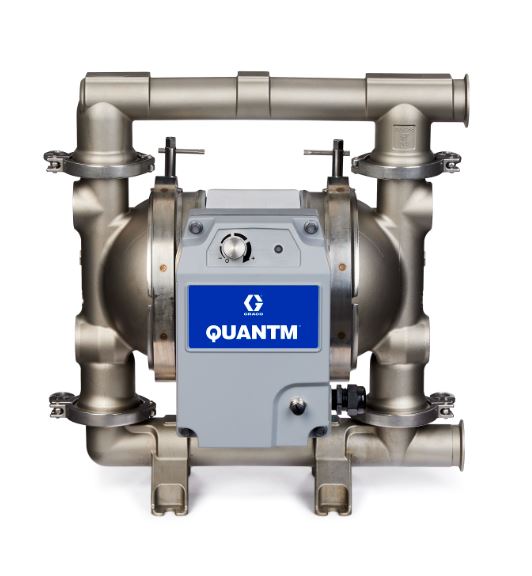

What is Graco QUANTM HE80-0228 Pump?
The Graco QUANTM HE80-0228 is an advanced electric double diaphragm pump designed for hygienic and industrial fluid transfer applications. It replaces traditional air-operated diaphragm systems with an electric drive that improves energy efficiency, reduces operating noise, and minimizes maintenance requirements.
Configured as QHD-FGFF2SSBNBNEPS130021, this pump is built with sanitary-grade materials and precision-engineered components to ensure reliable performance in demanding process environments where cleanliness and consistency are critical.
It is designed for continuous-duty operation in industries requiring controlled, contamination-free fluid handling.
Technical Specifications
- Maximum flow rate: up to 80 GPM (303 L/min)
- Maximum pressure: 100 psi (6.9 bar)
- Wetted parts: 316/316L stainless steel construction
- Connection type: 2-inch sanitary tri-clamp fittings
- Electric drive system for energy-efficient operation
Key Features & Benefits
- Eliminates dependency on compressed air systems
- Stable, low-pulsation fluid transfer performance
- Designed for hygienic and sanitary processing standards
- Seal-less diaphragm structure reduces leakage risk
- Direct replacement option for pneumatic diaphragm pumps
Frequently Asked Questions
It replaces pneumatic systems with an electric drive, reducing energy usage, noise levels, and maintenance needs while improving flow stability.
Yes, it uses 316/316L stainless steel and sanitary tri-clamp connections, making it suitable for food, beverage, pharmaceutical, and cosmetic industries.
Yes, it is designed as a direct retrofit solution for many pneumatic diaphragm pump systems with minimal modification.
It is widely used in food processing, beverage production, pharmaceuticals, cosmetics, and hygienic chemical transfer systems.
