Electric Hygienic Diaphragm Pump for Continuous Industrial Fluid Transfer
Compatible Machines & Process Systems
- Food & Beverage Processing Equipment – hygienic transfer of liquid ingredients such as dairy, syrups, and oils
- Pharmaceutical Manufacturing Systems – sterile fluid handling in regulated production environments
- Cosmetic Production Lines – suitable for emulsions, gels, creams, and liquid formulations
- CIP/SIP Hygienic Systems – compatible with clean-in-place and sterilization processes
- Industrial Fluid Transfer Skids – direct replacement for pneumatic diaphragm pump systems

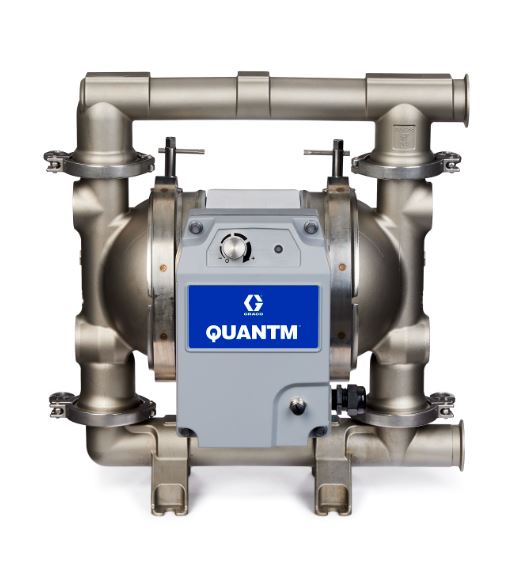

What is Graco QUANTM HE80-0233 Pump?
The Graco QUANTM HE80-0233 is a high-efficiency electric double diaphragm pump designed for hygienic and industrial fluid transfer applications. It replaces traditional air-operated diaphragm systems with an electric drive that reduces energy consumption, noise levels, and maintenance requirements while improving operational stability.
Built under configuration QHD-FGFF2SSCWPSPTS140021, this model features sanitary-grade construction for reliable performance in environments where cleanliness, precision, and continuous-duty operation are required.
It is engineered for consistent fluid handling across demanding production processes requiring contamination-free transfer.
Technical Specifications
- Flow capacity: up to 80 GPM (303 L/min)
- Maximum pressure: 100 psi (6.9 bar)
- Wetted parts: 316/316L stainless steel construction
- Connection type: 2-inch sanitary tri-clamp fittings
- Electric drive system for energy-efficient operation
Key Features & Benefits
- Removes need for compressed air systems
- Stable, low-pulsation fluid delivery performance
- Designed for hygienic and sanitary compliance standards
- Seal-less diaphragm design reduces leakage risk
- Direct retrofit replacement for pneumatic diaphragm pumps
Frequently Asked Questions
It replaces pneumatic diaphragm pumps with an electric system, reducing energy use, noise, and maintenance while improving flow control.
Yes, it is built with 316/316L stainless steel and sanitary tri-clamp fittings, making it suitable for food, beverage, pharmaceutical, and cosmetic applications.
Yes, it is designed as a direct retrofit solution for many pneumatic diaphragm pump systems with minimal installation changes.
It is widely used in food processing, beverage production, pharmaceuticals, cosmetics, and hygienic chemical transfer systems.
