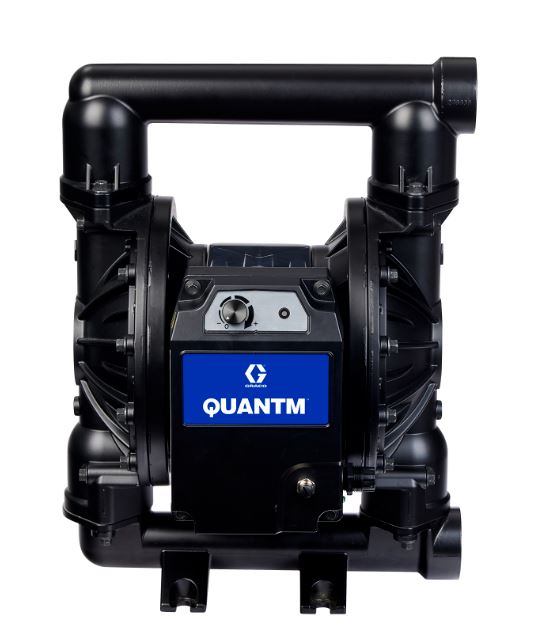

The Graco TE120-0038 QUANTM Pump is a high-efficiency electric double diaphragm pump engineered for demanding industrial fluid transfer applications. Designed with advanced QUANTM electric drive technology, this pump delivers lower energy consumption, quieter operation, and reliable performance compared to traditional air-operated diaphragm pumps.
Featuring an aluminum fluid section with durable wetted components, the QTE-ALFC1SAPTPSPTA100 configuration is suitable for handling chemicals, coatings, solvents, wastewater fluids, and industrial process liquids across continuous-duty operations.
Compatible Machines & Systems
- Chemical transfer skids
- Industrial fluid handling systems
- Paint circulation and coating systems
- Bulk fluid transfer stations
- Drum unloading systems
- Wastewater treatment equipment
- CIP and sanitary process systems
- Automated manufacturing fluid lines
- Solvent transfer systems
- Industrial processing equipment using 2-inch diaphragm pumps
- Replacement setups for Graco Husky diaphragm pump systems
- Replacement applications for Wilden, Sandpiper, and Yamada AODD pumps
Key Features
| Pump Type | Electric Double Diaphragm Pump |
| Series | Graco QUANTM i120 |
| Fluid Section Material | Aluminum |
| Operation | Electric Direct Drive |
| Port Size | 2 Inch |
| Applications | Chemicals, coatings, solvents, wastewater, industrial fluids |
| Performance Benefits | Reduced energy use, quieter operation, lower maintenance requirements |
Product Benefits
- Energy-efficient electric operation helps reduce operating costs.
- Designed for continuous-duty industrial applications.
- Provides smoother fluid flow with reduced pulsation.
- Excellent alternative to compressed-air diaphragm pumps.
- Handles demanding industrial liquids and chemical transfer applications.
- Compact and durable construction for long-term reliability.
Frequently Asked Questions
The pump is designed for industrial fluid transfer applications including chemicals, solvents, coatings, wastewater, and manufacturing process fluids.
The Graco TE120-0038 is an electric-operated double diaphragm pump that uses QUANTM electric drive technology instead of compressed air.
Yes, this model is commonly used as a replacement for traditional air-operated diaphragm pumps from Graco Husky, Wilden, Sandpiper, and Yamada systems.
QUANTM pumps offer improved energy efficiency, quieter performance, lower maintenance requirements, and smoother fluid transfer compared to conventional pneumatic pumps.
