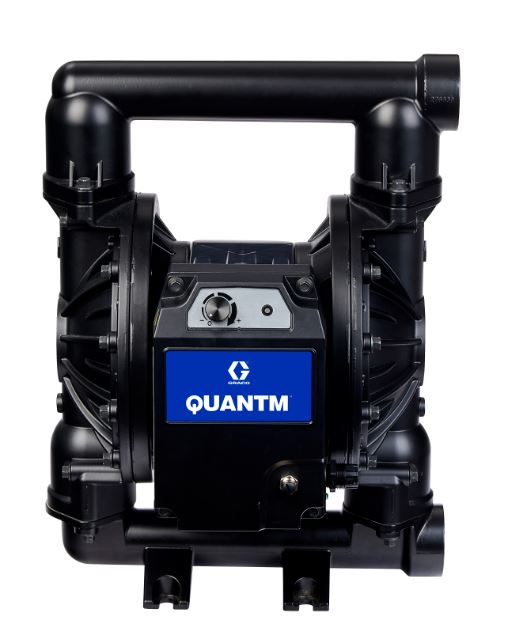

Graco TE120-0072 Quantm Aluminum Diaphragm Pump

Overview of the Graco TE120-0072 Quantm Pump

Graco TE120-0072 Quantm Pump combines advanced engineering with a lightweight aluminum body and PTFE diaphragms, providing superior chemical resistance and long term durability. It’s part of Graco’s Quantm line, which is known for energy efficiency and exceptional flow control.

This pump integrates seamlessly into spray systems using a graco spray hose, ensuring smooth and steady fluid movement with reduced pulsation. Its robust construction and efficient air motor system help minimize downtime and improve overall productivity in professional coating operations.

Where It Is Used

The TE120-0072 is widely used in industries such as automotive finishing, woodworking, marine coatings, and manufacturing. It’s ideal for transferring a wide range of viscous and abrasive materials, ensuring consistent output under high pressure.

When used alongside a graco tip guard, it contributes to a clean and even spray pattern, helping to achieve superior coating quality while reducing overspray and material waste.

Compatibility and Integration

The TE120-0072 Quantm Pump is compatible with multiple Graco systems and accessories, making it a versatile addition to professional fluid handling setups. Its NPT port configuration allows easy connection to various hose and manifold assemblies.

For optimal system cleanliness and performance, use the pump with graco filters and strainers. These components prevent contaminants from entering the pump, extending its life and ensuring steady performance in demanding spray environments.

How to Know It is the Right Pump

• Material Compatibility: Ideal for use with paints, coatings, adhesives, and chemicals.
• Flow Capacity: Balanced for medium to high-pressure operations.
• System Fit: Designed for integration with professional Graco spray systems.
• Durability: Aluminum and PTFE construction ensures long-lasting reliability.

When to Replace

Replacement is recommended when performance decreases, such as reduced pressure, slower transfer rate, or diaphragm wear. Harsh materials and continuous use can gradually affect efficiency. Regular inspection helps identify early signs of wear and prevents costly downtime.

For the best results, use compatible accessories like graco texture guns and genuine Graco components to maintain system performance and coating precision.

Specifications

Ordering and Support

Graco TE120-0072 Quantm Aluminum Diaphragm Pump is available at SprayersandParts.com. Our experts can assist with compatibility checks, installation guidance, and maintenance recommendations.
