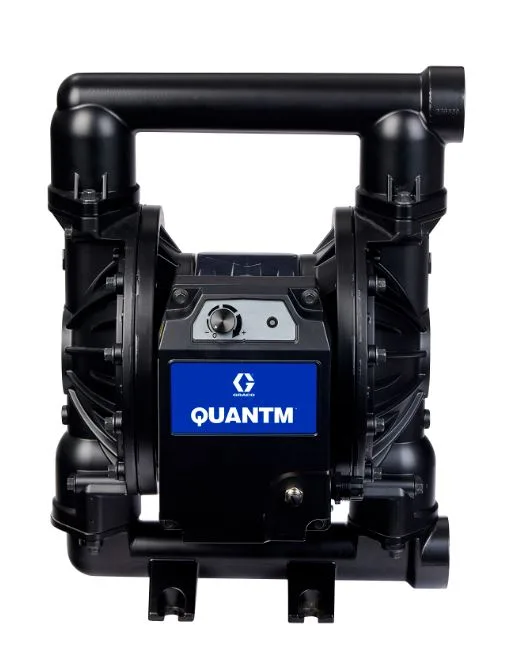

The Graco TE120-0092 Quantm Pump QTE-ALFC2SAGEGEPTA100 is a high-efficiency electric-operated double diaphragm pump engineered for demanding industrial fluid transfer applications. Built with an aluminium fluid section and advanced electric drive technology, this pump delivers reliable flow performance while reducing energy consumption, maintenance, and operating noise compared to traditional air-operated diaphragm pumps.
Designed for continuous-duty operation, the pump is suitable for transferring chemicals, coatings, inks, adhesives, wastewater, and other industrial fluids where dependable performance and energy efficiency are essential.
Compatible Machines & Systems
- Industrial fluid transfer systems
- Paint circulation systems
- Chemical processing equipment
- Ink transfer and printing systems
- Wastewater processing systems
- Drum unloading units
- Bulk fluid transfer skids
- Adhesive and sealant dispensing systems
- Automated production line pumping systems
- Graco coating and circulation systems
- OEM machinery using 2-inch diaphragm pumps
- Industrial liquid handling systems
Key Features
| Pump Type | Electric Double Diaphragm Pump (EODD) |
| Series | Graco QUANTM |
| Fluid Section Material | Aluminium |
| Seat Material | Stainless Steel |
| Diaphragm Material | Engineered Thermoplastic |
| Ball Material | Engineered Thermoplastic |
| Connection Size | 2 Inch |
| Maximum Flow Rate | Up to 120 GPM (Approx. 450 LPM) |
| Maximum Pressure | 60 PSI |
| Voltage Range | 100-240V Electric Configuration |
| Operation | Quiet and energy-efficient performance |
Applications
The Graco TE120-0092 Quantm Pump is designed for industrial environments requiring dependable fluid movement with reduced operational costs. Its electric drive system helps minimise compressed air usage while maintaining consistent pump performance.
- Chemical transfer
- Paint and coating circulation
- Industrial wastewater handling
- Ink and dye transfer
- Adhesive pumping applications
- General manufacturing fluid transfer
- Sealant and coating systems
Benefits of the QUANTM Electric Design
- Lower energy consumption compared to air-operated pumps
- Reduced operating noise
- Improved efficiency for continuous-duty applications
- Reliable seal-less diaphragm pump operation
- Handles abrasive and shear-sensitive fluids
- Reduced maintenance requirements
- Consistent fluid delivery performance
Frequently Asked Questions
It is an electric-operated double diaphragm pump from the Graco QUANTM series designed for industrial fluid transfer applications.
The pump is suitable for chemicals, coatings, inks, adhesives, wastewater, and various industrial liquids compatible with aluminium and thermoplastic wetted materials.
Yes, the pump is commonly integrated into systems that use 2-inch diaphragm pumps and can serve as an efficient replacement for many traditional air-operated diaphragm pumps.
Electric diaphragm pumps provide lower energy costs, quieter operation, improved efficiency, and reduced compressed air consumption compared to traditional pneumatic pumps.
