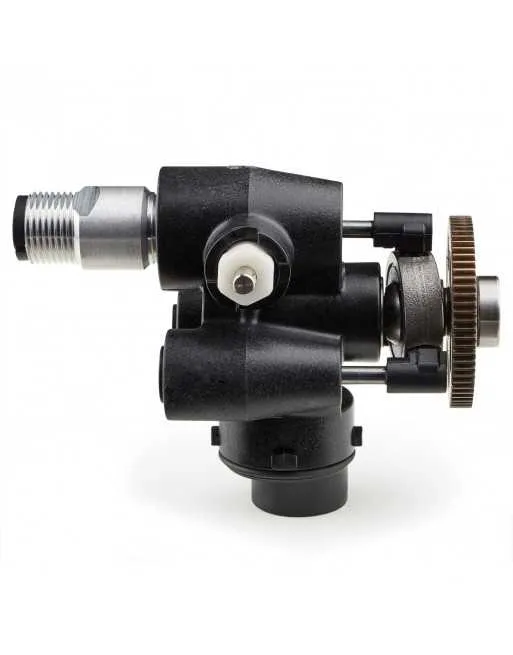

Graco 17P187 Triax Pump Assembly Replacement Kit

The Graco 17P187 Triax Pump Assembly Replacement Kit is a genuine drop-in replacement pump for Graco cordless handheld sprayers. It ensures consistent spray performance and fast, tool-free replacement using the ProConnect system.

Compatible with UltraMAX Cordless 17M367
Fits UltraMAX Cordless 17P928
Works with TC Pro PLUS Cordless 17N223
Fits Ultimate MX Cordless 17N222

Lightweight Triax triple-piston design for durability, pressure consistency, and easy maintenance.

List Price: $242.5

You save: $33.71 (13.90%)

Sale Price: $208.79

Based on 0 reviews

Description

Overview & Key Details for the Replacement Pump

Compatible Machines

The Graco 17P187 Triax Pump Assembly Replacement Kit is designed for select cordless handheld sprayers that use the Triax/Triax II fluid section and ProConnect drop-in replacement.

UltraMAX Cordless Handheld – Model 17M367
UltraMAX Cordless Handheld – Model 17P928
TC Pro PLUS Cordless – Model 17N223
Ultimate MX Cordless – Model 17N222

Note: This kit is for MAX/PLUS solvent-capable cordless handheld units. If you have a water-based-only Ultra Cordless, check its pump kit (often 17P186) before ordering.

What is the 17P187 Triax Pump Assembly Replacement Kit?

It’s a complete, field-replaceable Triax pump module (fluid section) for Graco cordless handhelds. The three-piston design uses stainless and carbide wear parts within a high-strength composite housing, giving a light, durable pump that maintains pressure and finish quality on small to medium touch-ups.

ProConnect design: quick drop-in swap to reduce downtime
Supports full tip performance within the sprayer’s rating
Built for easy cleaning and routine maintenance

Key Specifications

Part Number	17P187
Pump Type	Triple-piston Triax (Triax/Triax II) fluid section
Changeout System	ProConnect (field-replaceable module)
Typical Use	Graco MAX/PLUS cordless handheld sprayers
Materials	High-strength composite housing with stainless/carbide wear components
Tip Support	Supports tips within the sprayer’s rated pressure/output

Why choose the Graco 17P187?

Fast turnaround: swap the entire pump in minutes with ProConnect
Consistent finish: maintains pressure for smooth atomization
Durable build: composite body with stainless/carbide internals
Lower downtime: replace a worn pump without a service center visit

Installation & Care Tips

Before installing, make sure the sprayer is powered off and pressure is fully relieved.
Insert the module straight and seat fully; do not rotate the drive gear during installation.
After install, prime with the recommended fluid and check for smooth pressure build.
Clean promptly after use to maximize pump life.

Frequently Asked Questions

Check your sprayer’s model: if it’s an UltraMAX Cordless, TC Pro PLUS Cordless, or Ultimate MX Cordless (models listed above), it typically uses 17P187. Also confirm in the manual/parts diagram for your exact model number.

Both are Triax drop-in pumps, but they fit different handheld families. 17P187 is commonly used on MAX/PLUS solvent-capable cordless models, while 17P186 is typically used on water-based-only Ultra Cordless units. Always match the pump to your exact model number.

No special tools are required. The ProConnect design lets you remove and replace the module with basic steps: power off, relieve pressure, remove old pump, seat the new pump straight in, and prime before spraying.

Difficulty building pressure, pulsation in the spray pattern, fluid leaking past seals, or reduced performance even with clean filters and good batteries typically signal pump wear. A drop-in replacement like 17P187 restores performance quickly.

No. The pump supports “full tip support” within the sprayer’s original rating. Tip size and max pressure are limited by the sprayer model and should not be exceeded.
