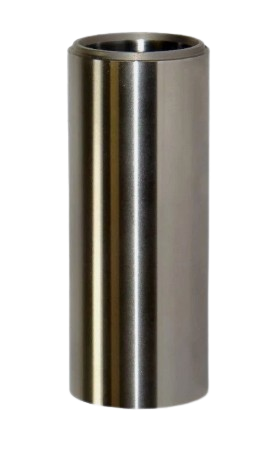

Graco 183361 Sleeve Cylinder

The Graco 183361 Sleeve Cylinder is a genuine OEM fluid-section sleeve used to restore pressure and sealing performance in several Graco sprayers. Ideal for maintenance or rebuilds.

OEM Part No: 183361
Fits Ultra 1500, GM 5000/10000, and LineLazer 5000 sprayers
Replaces worn or scored cylinder sleeves
Improves pressure consistency and pump life
Durable Graco-quality construction

Retail Price: $511

You save: $136.95 (26.80%)

Our Price: $374.05

Based on 0 reviews

Description

Overview & Compatibility — Graco 183361 Sleeve Cylinder

The Graco 183361 Sleeve Cylinder is the OEM fluid-section sleeve (also called “cylinder/sleeve assembly”) used on select Graco sprayers. Check your exact model/series before ordering.

Compatible Machines

This part fits the following Graco models/series:

Ultra 1500 series
GM 5000 series (often shown as GM5000 or 5000 GM)
LineLazer 5000 series
GM 10000 pump configurations (where specified)

Key Details

OEM Part Number	183361
Part Type	Sleeve / Cylinder (fluid section)
Function	Houses the piston/packings in the fluid pump; restores pressure, reduces bypass/leaks when replaced.
Typical Symptoms Indicating Replacement	Loss of pressure, erratic spray pattern, fluid bypass, visible sleeve scoring, recurring packing failures.
What’s Included	Sleeve/Cylinder (other pump components sold separately unless stated on the kit page).
Install Note	Verify model/series & pump variant (e.g., Ultra/GM/LineLazer family) before installation.

Product Description

The Graco 183361 Sleeve Cylinder is an OEM wear component from the fluid section of select Graco sprayers (Ultra, GM and LineLazer families). Over time the cylinder can wear or score, causing packing failure and pressure loss. Replacing the sleeve helps restore proper sealing and pump performance. Using genuine Graco parts maintains durability and compatibility with factory tolerances.

Installation & Maintenance Tips

Confirm your exact sprayer model, pump type, and series before ordering (serial tag/model decal).
When replacing the sleeve, inspect the piston rod for wear/scoring and replace packings if needed.
Reassemble per service manual torque specs; pressure-test and check for leaks after reassembly.
Flush with compatible solvent after install; use clean, filtered coatings to prolong component life.

Helpful Notes

Model names may appear in different formats (e.g., GM5000 vs GM 5000); confirm against your parts list.
If your unit is a variant within the Ultra 1500, GM 5000/10000, or LineLazer 5000 families, cross-check the pump bill of materials for 183361.

Frequently Asked Questions

#	Question
1	How do I confirm if 183361 fits my sprayer?
2	Do I need new packings when I replace the sleeve?
3	What symptoms indicate the sleeve is worn?
4	Is Graco 183361 the same as a complete pump?
5	Any special break-in or flushing procedure after installation?

Check your model/series and pump BOM in the manual or parts list. If your unit is in the Ultra 1500, GM 5000/10000, or LineLazer 5000 families and calls out 183361 in the fluid-section diagram, it will fit. When in doubt, match by serial and pump code.

It’s strongly recommended. A worn sleeve often damages packings. Replacing packings and inspecting the piston rod ensures a reliable seal and longer service life after installing the new sleeve.

Low or unstable pressure, fluid bypass past the packings, frequent packing failure, inconsistent spray pattern, or visible scoring inside the cylinder are common indicators that the sleeve needs replacing.

No. This is the sleeve/cylinder only. Other fluid-section components (piston/rod, packings, seats, etc.) are sold separately unless your product page explicitly lists a complete kit.

After reassembly, flush with the correct solvent, prime the pump, and run at low pressure to check for leaks. Gradually increase pressure and verify a consistent spray pattern before returning to normal operation.
