Engineered for high-flow accuracy, this 0.5000 inch stainless steel intake ball ensures peak performance in Graco’s contractor series. Designed to integrate seamlessly with your airless sprayer and reinforced for professional coatings projects, it delivers consistent pressure and longevity. Reference the detailed Graco Sprayer Parts Diagram to quickly identify the correct installation point and optimize system dynamics without guesswork. Its precision finish minimizes wear and simplifies routine maintenance for prolonged life.
Whether servicing a contractor-grade graco spray machine or upgrading maintenance kits, this inlet ball sustains steady fluid displacement and reduces downtime. Engineered for precise sealing and grit removal, it complements high-pressure filtration systems and streamlines routine servicing. Its robust construction withstands abrasive coatings, high-pressure environments, and repetitive cycles. Enhance your spray system’s reliability with a component trusted by professionals and built for lasting performance.

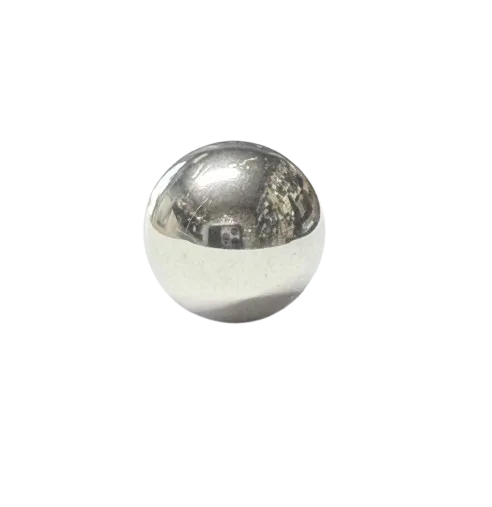

$7.51The Graco 105445 Ball Stainless Steel (0.5000 inch) is an engineered fluid section component optimized for advanced airless sprayer systems. Fabricated from medical-grade 316L austenitic stainless steel, this intake ball functions as a critical check valve element within high-pressure displacement pumps. Its tight diameter tolerance of ±0.0002 inches and mirror-finish surface ensure minimal fluid resistance and consistent volumetric throughput. The design supports a broad spectrum of professional coatings and solvent blends, delivering consistent performance and reliability. Integration into Graco OEM platforms enhances pump efficiency, reduces cavitation risk, and extends seal longevity through smooth valving action. This precision sphere is a primary option for operators demanding sustained flow rates in demanding construction and industrial coating environments, and is fully compatible with graco airless sprayer accessories. It performs reliably across a temperature range of -20°C to 80°C, exhibiting broad chemical compatibility.
Within the fluid end, the intake ball seats against a hardened chrome alloy valve seat, creating a leak-tight seal under pressures up to 5,000 psi. High-precision O-ring and packing configurations upstream and downstream isolate the chamber, while the retention cage stabilizes axial movement under pulsating loads. Optimal placement of this ball reduces pressure spikes, mitigates seal wear, and contributes to overall pump efficiency by minimizing recirculation losses. This component is compatible with a broad range of Graco systems and integrates seamlessly with graco paint gun accessories, ensuring modular interchangeability during maintenance cycles.
The 316L stainless steel composition chosen for the 105445 ball provides superior corrosion resistance and mechanical strength over extended operating hours. Post-machine lapping produces a submicron roughness that diminishes friction at the ball-seat interface, ensuring rapid seating and unseating characteristics. Heat treatment to 30–35 HRC maintains dimensional stability under thermal cycling, while electropolishing removes micro-abrasions to prevent particulate contamination. The polished finish complements advanced seal materials, significantly enhancing seal longevity by preventing abrasive wear and chemical attack from aggressive coatings and cleaning agents. As part of Graco’s fluid section lineup, it is also specified among the most durable graco 360 paint sprayer parts for contractor-grade equipment.
Flow analysis indicates that the 0.5000-inch bore diameter supports discharge volumes up to 1.2 gallons per minute at 2,500 psi without incurring turbulent separation. Computational fluid dynamics (CFD) modeling validates that the streamlined valve geometry reduces local pressure drop by 15% compared to conventional designs. The polished sphere surface complements high-pressure filtration practices, preventing clogging from particulates down to 5 microns. Under pulse frequencies exceeding 300 cycles per minute, testing confirms stable dynamic response with negligible hysteresis and consistent cycling. These performance metrics translate into smoother spray patterns, improved finish quality, and lower maintenance downtime in heavy-duty professional coatings applications.
When replacing the 105445 intake ball, technicians should verify seat integrity and clean the cylinder bore with low-lint wipes and filtered solvent. Torque valve covers to recommended settings to avoid misalignment, and execute a seating verification test at low pressure before full-scale operation. Routine maintenance intervals of 500 hours or 3,000 spray cycles are typical, subject to coating viscosity and solids content. Using compatible pump oil and high-pressure filtration systems prolongs component life, safeguards internal surfaces, and maintains pump efficiency over seasonal changes. Scheduled inspections for micro-abrasions and seat erosion further enhance system reliability and maximize seal longevity.
The Graco 105445 ball excels in environments ranging from large-scale architectural coatings to automotive underbody protection and chemical injection processes. Its robustness and tolerance precision are crucial for high-viscosity materials, pigment concentrates, and adhesive dispersions used in industrial assembly lines under rigorous control protocols. Best practices include pairing with matched valve seats fabricated from 400-series stainless steel and verifying compatibility with pump regulators for consistent outlet pressures. Integration with Graco’s modular fluid sections simplifies field swaps, reduces labor costs, and supports predictive maintenance programs. When coupled with advanced control systems and remote monitoring, this intake ball advances the capabilities of modern airless sprayer platforms to deliver unparalleled finish quality and operational uptime.
