Graco 184461 Cylinder

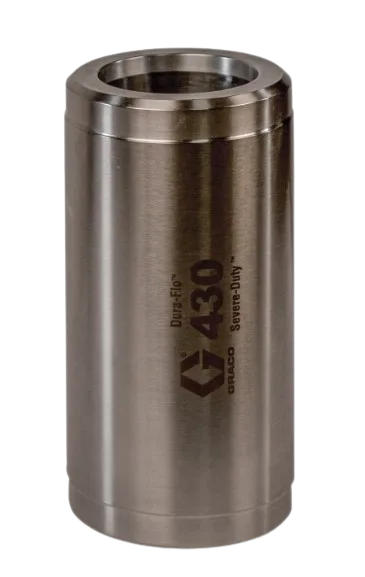

The Graco 184461 Cylinder is a genuine OEM replacement part designed for Dura-Flo 1800 (430 cc) pump lowers. It ensures proper pressure, sealing, and long-lasting performance in heavy-duty spraying systems.

Used in L430CS (Carbon Steel) and L430SS (Stainless Steel) lowers
Compatible with GH Roof Rig, NXT Dura-Flo, and King DF1800 systems
Maintains factory-rated performance up to ~4500 psi
OEM precision ensures correct fit and reliable operation

$1647.3

Based on 0 reviews

Description

Fitment & Key Details for the Graco 184461 Cylinder

Compatible Machines

This Graco 184461 Cylinder is used in select Dura-Flo 1800 (430 cc) displacement “lowers” and rigs built around that pump family.

Dura-Flo 1800 (430 cc) Lowers
- L430CS (Carbon Steel lower)
- L430SS (Stainless Steel lower)
Displacement Pump / Lower Assemblies (by model/build)
- 222796, 222988, 222805
- 24W644, 241956, 246925
- 246987, 246988
- 687055, C59703
Power Rigs & Ratios commonly using DF1800 (430 cc) lowers
- X32:1 NXT Dura-Flo
- GH Roof Rig series: 1015, 2560, 3050, 3060
- GH 2570ES
- 15:1 Dura-Flo 1800
- 28:1 King DF1800

What is the Graco 184461 Cylinder?

The Graco 184461 Cylinder is the OEM pump cylinder used in the lower (displacement) section of the Dura-Flo 1800 (430 cc) family. It restores sealing and pumping efficiency when rebuilding DF1800 lowers such as L430CS and L430SS.

Quick Specs

OEM Part Number	184461
Pump Family	Dura-Flo 1800 (430 cc) lowers (e.g., L430CS, L430SS)
Function	Lower pump cylinder (displacement section)
Typical Materials	Matches lower assembly (Carbon Steel for L430CS, Stainless Steel for L430SS)
Typical Pressure Class*	DF1800 (430 cc) systems typically up to ~4500 psi fluid working pressure (check your specific rig/manual)
Used On / With	NXT / King / GH roof rigs and other systems built around DF1800 (430 cc) lowers

Why choose the OEM 184461?

Direct OEM fit for Dura-Flo 1800 (430 cc) lowers
Maintains proper clearances and sealing for reliable priming and pressure
Supports long service life when paired with fresh packings/balls/seats
Reduces downtime vs. non-OEM alternates

What’s in the Box

Graco 184461 Cylinder (lower pump cylinder)

Note: Rebuild kits (packings/balls/seats) are sold separately per lower model.

Install / Fitment Notes

Match your lower assembly (e.g., L430CS vs L430SS) before ordering
Follow Graco torque specs and sequence from your parts/repair manual
Use correct sealant / thread treatments where specified
Flush and pressure-test after reassembly

Frequently Asked Questions

Check the lower/displacement model on your unit’s data plate or in the parts manual. If it lists Dura-Flo 1800 (430 cc) lowers such as L430CS or L430SS, the 184461 is the correct cylinder family. For rigs, cross-reference the lower model installed in the frame.

L430CS refers to a Carbon-Steel lower; L430SS is a Stainless-Steel lower. Match the cylinder material to the lower type specified by your manual or serial tag.

DF1800 (430 cc) systems are typically around ~4500 psi fluid working pressure, but the exact rating depends on your air/hydraulic motor and system configuration. Always verify the rating for your exact model in the Graco manual.

Excess bypass/leak-down, poor priming, pressure loss, or visible scoring wear inside the lower. Inspect during a packing rebuild; if out of spec or damaged, replace with 184461.

No. The 184461 is for DF1800 (430 cc) lowers. The DF2400 (580 cc) family uses different components and ratings.
