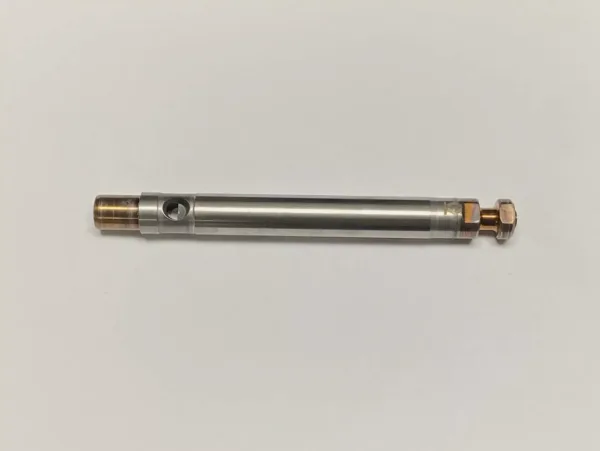

Graco 19Y268 Piston Rod

The Graco 19Y268 Piston Rod is a durable Chromex replacement rod designed for UltraMax II 650 sprayers. It ensures smooth pump operation and consistent spraying performance.

Compatible with UltraMax II 650 PC / PC Pro / XT models
Works with pump assemblies 19B732 and 19Y298
Restores pump pressure and reduces wear on packings
High-strength Chromex finish for extended lifespan

Retail Price: $204.5

You save: $47.44 (23.20%)

Our Price: $157.06

Based on 0 reviews

Description

Compatibility & Key Specs for Replacement

Compatible Machines

This Graco 19Y268 Piston Rod fits UltraMax II 650 sprayers that use the matching 650-series fluid pump.

UltraMax II 650 PC Pro (Hi-Boy & Lo-Boy)
UltraMax II 650 ProConnect (PC)
UltraMax II 650 XT (Hi-Boy / Lo-Boy; models using pump 19B732 or 19Y298)

About the Part

The Graco 19Y268 Piston Rod is the drive rod inside the pump’s fluid section. It transfers motion from the sprayer’s drive to the piston so your sprayer can draw and pressurize coating efficiently. Replacing a worn rod restores smooth pumping, pressure stability, and finish quality.

Quick Specifications

Part Number	19Y268
Part Type	Piston / Pump Rod (Replacement Kit)
Intended Series	UltraMax II 650 (PC / PC Pro / XT variants that share the 650 pump)
Pump Compatibility	Works with fluid pump assemblies 19B732 and 19Y298
Finish / Build	Chromex rod for durability and wear resistance
UPC	00755652962540

When to Replace the Rod

Pressure fluctuations, pulsing, or poor atomization
Visible scoring, pitting, or corrosion on the rod
Frequent packing leaks even after new packings
Excessive wear from abrasive coatings or poor maintenance

What’s Included

Replacement piston rod only (use with the correct pump, piston, and packing set as specified for your UltraMax II 650 model).

Installation & Care Tips

Confirm your sprayer’s model & pump number before disassembly.
Work clean—flush old coating, then keep parts free of grit during install.
Inspect cylinder/sleeve and packings; replace worn components together for best results.
After installation, prime with appropriate fluid and check for leaks at low pressure before spraying.

Frequently Asked Questions

Match your sprayer model and verify the pump assembly number. If your 650 uses pump 19B732 or 19Y298, this rod is correct. When in doubt, check your parts manual or the pump breakdown for your exact unit.

It’s strongly recommended. A new rod running through worn packings (or a scored sleeve) will not seal properly and can wear prematurely. Replace any damaged sleeve/cylinder at the same time for best performance and longevity.

Yes—listings identify 19Y268 as a Chromex rod for UltraMax II 650 PC Pro, providing enhanced wear resistance for pump longevity.

No. This rod is specific to the 650 platform. Other Ultra/Ultimate models use different pump assemblies and rods. Use the part number in your machine’s manual to avoid mismatches.

Look for scoring on the rod, packing leaks that reoccur quickly, pressure drop/pulsing, and inconsistent spray pattern. These point to rod and/or sleeve wear.
