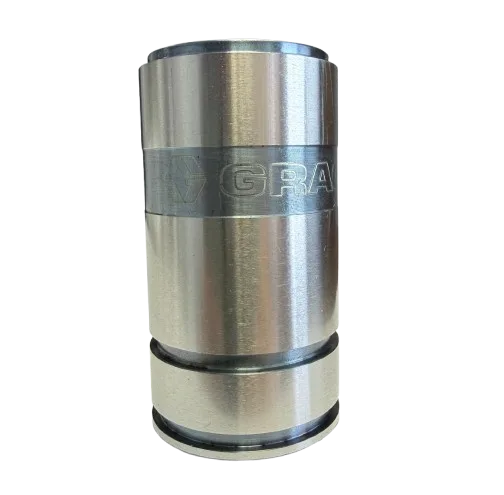

Graco 19Y269 Cylinder Sleeve for 650-Series Pump Repair

Graco 19Y269 Sleeve is an OEM replacement cylinder sleeve designed for 650-series Endurance lower pumps. It ensures smooth piston operation and restores proper pressure performance.

Fits Ultra Max II 650 PC Pro (Hi-Boy & Lo-Boy)
Fits Ultimate MX II 650 sprayers
Compatible with pump models 19Y298 and 19B732
Maintains pressure consistency and sealing performance

List Price: $141.5

You save: $32.83 (23.20%)

Sale Price: $108.67

Based on 0 reviews

Description

Compatible Machines —Graco 19Y269 Sleeve

The Graco 19Y269 Sleeve installs into specific Endurance lower pumps used on 650-size contractor sprayers. Verify your sprayer’s pump model before ordering.

Ultra Max II 650 PC Pro — Hi-Boy (19Y128)
Ultra Max II 650 PC Pro — Lo-Boy (19Y129)
Ultimate MX II 650 — Hi-Boy (commonly listed under retailer codes)
Ultimate MX II 650 — Lo-Boy (commonly listed under retailer codes)

What is the Graco 19Y269 Sleeve?

A factory OEM cylinder sleeve for Graco Endurance lower pumps. It restores the pump’s sealing surface for the piston & packings, helping maintain prime, pressure, and spray quality on 650-class units.

Fits These Pump Models

19Y298 Endurance Chromex Piston Pump (used on Ultra Max II 650 PC Pro)
19B732 Endurance Pump (select 650-series equivalents)

Key Details

Part Number	19Y269
Type	OEM replacement sleeve (cylinder sleeve) for Endurance lower pump
Sprayer Families	Ultra Max II 650 PC Pro, Ultimate MX II 650
Typical Benefits	Restores sealing surface, stabilizes pressure, reduces by-pass/leak-down
Recommended Check	Confirm your lower pump model (19Y298 / 19B732) before purchase

Why choose OEM?

Exact Graco tolerances for piston/packing alignment
Compatible metallurgy for Chromex piston rods and V-Max Blue packings
Direct drop-in for supported Endurance lowers — no modifications

Notes & Compatibility Tips

If your sprayer is an Ultra Max II / Ultimate MX II 650, check the pump tag; if it shows 19Y298 or 19B732, this sleeve is the correct family.
If your machine has been retrofitted with a different lower, match the lower pump part number first.
Replace worn packings and inspect the piston/rod during sleeve service for best results.

Frequently Asked Questions

Match the lower pump part number on your unit. If it’s 19Y298 or 19B732, and your sprayer is an Ultra Max II 650 PC Pro or Ultimate MX II 650, the 19Y269 Sleeve is the corresponding OEM sleeve.

It’s strongly recommended. A fresh sleeve with worn packings won’t restore pressure or prime reliably. Pair the sleeve with the correct V-Max Blue packing kit for your lower pump.

No. The 19Y269 is specific to 650-series lowers. Other sizes (e.g., 495/595/695/795/1095) use different sleeves and lowers. Always verify by lower pump part number.

Clean the lower thoroughly, inspect the piston rod for scoring, lube new packings per Graco specs, and torque fasteners evenly. Prime with compatible fluid and check for leaks before spraying.

Yes — the Graco 19Y269 Sleeve is an OEM replacement component designed for 650-series Endurance lowers. Authentic parts ensure proper fit and service life.
