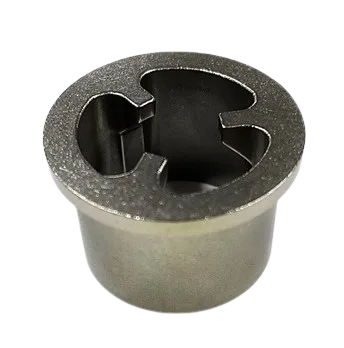

Graco 193027 Ball Guide

The Graco 193027 Ball Guide ensures correct alignment and movement of ball valves or check balls within fluid pump systems, improving cycle consistency.

  • OEM Quality – Fits Graco fluid valves
  • Precision Alignment – Guides ball movement accurately
  • Durable Material – Withstands wear and fluid pressure
  • Easy to Replace – Quick maintenance swap

Retail Price: $53.25
You save: $2.92 (5.48%)
Our Price: $50.33
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Graco 193027 Ball Guide – OEM Valve Support Component

Compatible Machines

  • Graco Husky 515 Pumps
  • Graco 716 Pumps
  • Industrial Fluid Systems with ball valves or check balls

Product Overview

The Graco 193027 Ball Guide holds and aligns ball valve elements, ensuring smooth and consistent cycling of fluid systems. Made of OEM‑grade materials, it offers durability and proper support under operational pressure.

Feature Details
Part Number 193027
Type Ball Guide
Brand Graco
Material Heat‑treated metal or polymer
Use Guides valve balls for consistent movement

Installation & Usage Tips

  • Depressurize system before servicing valve components.
  • Ensure the ball guide seats properly in its housing.
  • Inspect for wear or deformation during maintenance.
  • Replace if alignment issues or wear occur.

Frequently Asked Questions

It aligns and supports internal valve balls to maintain smooth and accurate fluid flow.

It fits specific Graco pump valve assemblies such as Husky 515 and 716; verify compatibility before ordering.

Yes, with basic disassembly of valve components and correct alignment, installation is straightforward.
