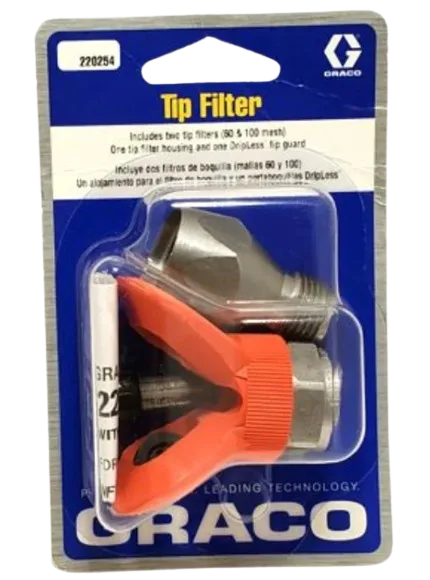

Graco 220254 Repair kit
$64.26
$125.50
Save 49%
In Stock
The Graco 220254 Repair Kit is a genuine tip filter kit designed to improve spray performance and reduce tip clogs. It provides smooth paint flow and consistent finish quality.
- Includes 60-mesh and 100-mesh tip filters
- Comes with tip filter housing and drip-less tip guard
- Fits spray guns with a 7/8" tip guard thread
- Ideal for Graco ST, 390, Ultra 395/495/595/650 series
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Compatible Machines (Gun/Guard Based)
The Graco 220254 Repair Kit (Tip Filter Kit) fits spray guns that use a 7/8" flat-tip guard and accept a tip-filter housing. Typical Graco sprayer families whose guns commonly meet this requirement include:
- Graco ST / STX series (select guns with 7/8" guard)
- Graco 390 / 390 PC (guns with standard 7/8" guard)
- Graco Ultra 395, 495, 595, 650 (Contractor/FT guns using 7/8" guard)
- Graco Contractor / Contractor PC guns and many extensions using a 7/8" tip guard
Product Overview
The Graco 220254 Repair Kit is a tip-side accessory that adds filtration at the spray tip to help reduce clogs and spit, improving finish quality. It includes two mesh options so you can match filter to material and tip size.
| Kit Item | Details |
|---|---|
| Tip Filters | One 60-mesh and one 100-mesh screen for common coatings |
| Tip-Filter Housing | Positions the screen directly behind the tip for last-chance filtration |
| Drip-Less Tip Guard | Guard with nut; standard 7/8" thread interface |
| Purpose | Helps prevent tip plugging and improves fan consistency |
Key Benefits
- Reduces clogs and paint spit for a smoother finish
- Two meshes (60 / 100) to suit thicker and thinner materials
- Works with many Graco contractor guns that use a 7/8" guard
Basic Use Tips
- Match mesh to material (e.g., 60-mesh for many latexes; 100-mesh for stains/enamels)
- Clean the screen and housing regularly to maintain pattern quality
- Ensure the guard and housing seat squarely; avoid over-tightening
Frequently Asked Questions
One 60-mesh filter, one 100-mesh filter, a tip-filter housing, and a drip-less tip guard with nut.
Fitment is determined by the spray gun & guard. If your gun uses a 7/8" flat-tip guard and accepts a tip-filter housing, this kit typically fits.
Graco ST/STX, 390/390 PC, and Ultra 395/495/595/650 families frequently ship with guns that use a 7/8" guard. Always confirm your exact gun model.
Use 60-mesh for thicker coatings (many interior latexes) and 100-mesh for thinner materials such as stains and enamels. Also consider your tip size.
No. It’s a Tip Filter Kit for the gun/guard interface; it does not contain piston or pump seal components.
