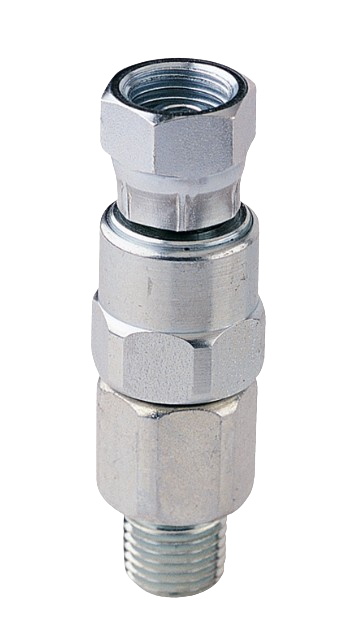

Overview & Specs for Graco 224457 Gun Swivel
Improve gun maneuverability and reduce hose twist by adding this straight swivel between your airless spray gun and 1/4" hose connection.
Compatible Machines
Works with most Graco airless spray guns and sprayers that use 1/4" NPSM gun/hose connections and operate at or below 3600 psi. Common compatible series include:
- Magnum: X5, X7, ProX17, ProX19 (and similar Magnum models with 1/4" hose/gun ports)
- Ultra / Ultra 395 PC / 390 PC contractor-class sprayers
- Ultra Max II: 490, 495, 595, 650, 695, 795 (standard & ProContractor variants with 1/4" ports)
- 695, 795, 1095, 1595 electric airless units using 1/4" hoses
- GMAX / gas-driven airless (where gun & hose interface is 1/4" NPSM and ≤ 3600 psi)
Key Specifications
| Spec | Detail |
| Part Number | 224457 |
| Type | Straight gun & hose swivel (airless) |
| Threads | 1/4" NPSM (Male) x 1/4" NPSM (Female) |
| Max Working Pressure | 3600 psi (≈ 248 bar) |
| Use With | Airless spray guns & 1/4" airless hoses |
| Primary Benefit | Improves maneuverability; helps prevent hose twist; reduces wrist strain |
Why Choose the Graco 224457 Gun Swivel?
- Smoother gun positioning when cutting-in and spraying ceilings or tight spaces
- Helps keep hose from fighting your wrist—more comfort on long spray days
- Quick add-on between gun and hose; compact, durable construction
- Compatible across many Graco airless platforms with 1/4" connections
Installation & Notes
- Depressurize sprayer and engage gun trigger lock.
- Thread the female end of the swivel onto the gun inlet; attach hose to the male end.
- Tighten snugly; use thread sealant only if recommended by your equipment manual.
- Pressurize and leak-test at low pressure before spraying at full working pressure.
If your system or hose is rated above 3600 psi or uses non-1/4" threads (e.g., 3/8"), select a higher-rated or differently threaded swivel/adapters.
Frequently Asked Questions
Yes—those models typically use 1/4" NPSM gun/hose connections and operate below 3600 psi, so the 224457 Gun Swivel is compatible. Always confirm your specific gun and hose thread sizes.
In most cases, yes. If your gun inlet and hose end are 1/4" NPSM and your system pressure ≤ 3600 psi, the Graco 224457 will work. Some rigs with different hose sizes may need adapters.
The maximum working pressure is 3600 psi. For systems regularly operating at higher pressures, choose a higher-rated swivel model to maintain safety margin.
Yes, if they use 1/4" NPSM threads and the system pressure is ≤ 3600 psi. Thread type and pressure rating are the key checks for compatibility.
Keep threads clean, check for leaks, and avoid overtightening. If rotated under load frequently, inspect periodically for wear and replace if any play or leakage develops.
