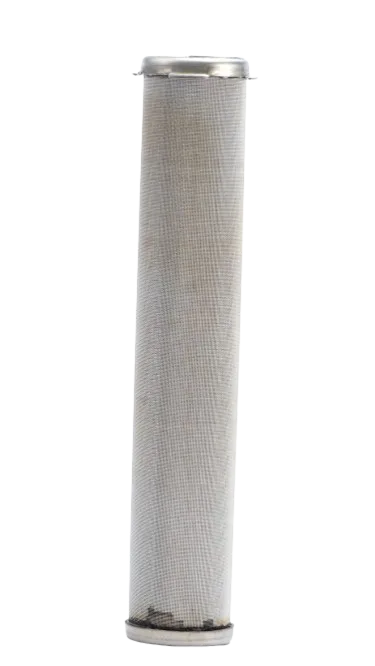

Graco 224469 Filter 200 Mesh
$23.55
$44.60
Save 47%
Available to Order
The Graco 224469 Filter 200 Mesh is a fine stainless-steel manifold filter designed for thin coatings like stains and lacquers. It protects your sprayer by trapping debris before it reaches the hose or tip.
- Mesh Size: 200 (≈74 micron) – ideal for fine finishes
- Type: Long Easy-Out manifold filter
- Compatible With: Ultra, Ultra Max II, Mark IV–VII, GMAX 3900–7900, GH 200, HydraMax
- Use For: Stains, lacquers, enamels, thin coatings
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Fast-filtration 200-mesh manifold screen for thin coatings
Compatible Machines
The Graco 224469 Filter 200 Mesh is a long “Easy-Out” manifold filter used on many professional Graco sprayers that use the long-style manifold housing.
- Graco Ultra & Ultra Max airless sprayers (long filter manifold)
- Ultra Max II contractor sprayers (e.g., 695 / 795 / 1095 / 1595 families, PC / PC Pro variants)
- TexSpray Mark series: Mark IV, Mark V, Mark VII
- GMAX gas sprayers: 3900, 5900, 7900
- GH 200 rigs and other units specifying 200-mesh long manifold filters
- HydraMax sprayers using the long Easy-Out manifold filter
What is the Graco 224469 Filter 200 Mesh?
A long, inside-out manifold filter (200 mesh ≈ very fine) that sits in the pump manifold to catch debris before the hose and gun—protecting tips, improving finish quality, and helping prevent clogs with thin materials.
Specifications
| Part # | Mesh | Style | Typical Materials | Ideal Tip Size | Also Sold As | Notes |
|---|---|---|---|---|---|---|
| 224469 | 200 mesh (very fine) | Long “Easy-Out” manifold filter | Stains, lacquers, enamels (solvent), polyurethane, thin coatings | ≈ 0.011″ and smaller | Replaces 238441 (3-pack), 238442 (25-pack); equivalent to 167027 single | Inside-out flow for efficient filtration & easier cleaning |
Key Benefits
- Helps deliver a smooth, professional finish with thin materials.
- Protects pump, hose, gun, and Graco spray tips by trapping debris in the manifold.
- Reduces tip clogs and pressure fluctuations; supports consistent spray pattern.
- Easy to remove and clean thanks to Graco’s Easy-Out design.
Maintenance Tips
- Check and clean the filter regularly; replace if damaged or persistently clogged.
- Match mesh to material and tip size to maintain flow and finish quality.
- Flush after each job—especially with fast-drying or solvent coatings.
Frequently Asked Questions
If your model uses the long Easy-Out manifold filter (Ultra / Ultra Max / Ultra Max II, Mark IV–VII, GMAX 3900/5900/7900, GH 200, HydraMax), the 224469 Filter 200 Mesh is the correct fine screen. Always confirm your manifold uses the long style before ordering.
Choose 200 mesh for thin materials (stains, lacquers, solvent enamels) and small tip sizes (≈0.011″ and below). For thicker latex or elastomerics, use coarser meshes (100 / 60 / 30) to maintain flow and reduce filter clogging.
It’s commonly referenced around ~74 micron opening size for 200-mesh screens. Exact values can vary slightly by manufacturer and construction.
The same 200-mesh long manifold screen is also sold as 238441 (3-pack) and 238442 (25-pack); single/OEM references include 167027 for the 200-mesh element.
Depressurize the system, remove the manifold cap, pull and inspect/clean the screen, and reinstall fully seated. Replace the O-ring if worn. Always test spray and check pressure after reassembly.
