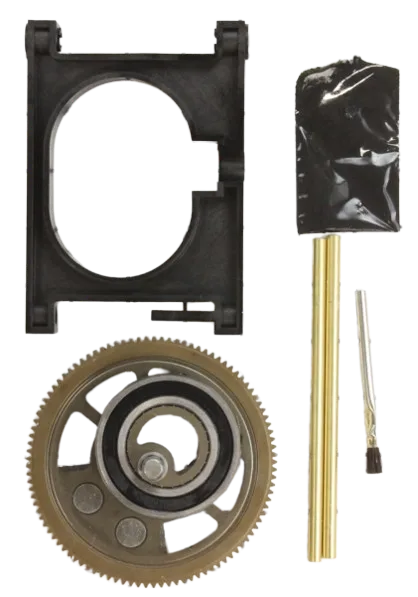

Graco 245062 Gear/Yoke Assembly with Guides

The Graco 245062 Gear/Yoke Assembly with Guides restores the gear drive mechanism in compatible Graco Magnum airless paint sprayers to maintain smooth pump operation.

  • OEM gear & yoke assembly
  • Includes alignment guides
  • Restores consistent pump motion
  • Prevents drive wear
  • Designed for Magnum series sprayers

Improves mechanical reliability and performance.

Retail Price: $142
You save: $11.79 (8.30%)
Our Price: $130.21
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Graco 245062 Gear/Yoke Assembly with Guides — Compatibility & Product Details

Compatible Machines

  • Graco Magnum XR5 Series C, D, E airless paint sprayers
  • Graco Magnum XR7 Series B, C, D airless paint sprayers
  • Graco Magnum XR9 Series B airless paint sprayers
  • Other Graco Magnum pump systems using the original gear/yoke assembly

Product Overview

The Graco 245062 Gear/Yoke Assembly with Guides is a genuine OEM mechanical repair kit crafted to replace worn or damaged gear and yoke components in compatible Magnum airless paint sprayers. These parts are crucial for converting rotary motion into linear piston movement, ensuring your sprayer pump operates smoothly and with consistent pressure.

Specifications

Specification Details
Part Number 245062
Kit Type Gear & Yoke Assembly with Guides
Application Mechanical Drive Repair
OEM Grade Graco Genuine Replacement

Key Benefits

  • Restores smooth gear and yoke drive operation
  • Ensures reliable mechanical motion in pumps
  • Improves pump pressure consistency
  • OEM part ensures long service life
  • Prevents premature wear on adjacent components

Typical Uses

  • Replacing worn gear/yoke assemblies in Magnum sprayers
  • Routine pump rebuild and maintenance
  • Improving drive reliability in older sprayer units

Frequently Asked Questions

This kit replaces the gear and yoke drive components inside compatible Magnum airless sprayers to ensure proper pump motion and smooth operation.

Signs include grinding noises, inconsistent pressure, or excessive play between motion components — wear usually causes these issues.

Yes — this kit includes guides that help align the gear and yoke for smooth transfer of motion and reduced wear.
