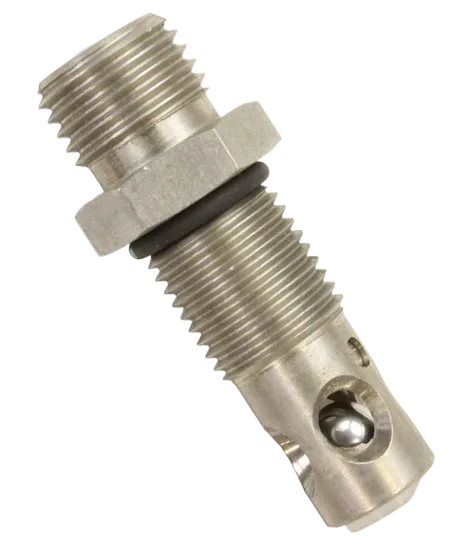

Name: Graco 245076 Outlet Kit Repair For Magnum Dx
Brand: Graco
SKU: 245076
Price: 75.43 USD
Availability: InStock

Graco 245076 Outlet Kit Repair For Magnum Dx

$75.43

$82.25

Save 8%

Available to Order

Part #: 245076

The Graco 245076 Outlet Kit Repair for Magnum DX replaces the OEM outlet valve module on compatible Magnum DX airless sprayers to restore reliable fluid exit flow to the spray hose.

OEM outlet valve replacement
Designed for Magnum DX sprayers
Restores outlet pressure and flow
Reduces leaks at pump outlet
Easy to install during maintenance

Essential for consistent spray performance.

Genuine OEM Part Fast Shipping (Order by 1 PM CST) Easy Returns

Graco 245076 Outlet Kit Repair for Magnum DX — Compatibility & Product Details

Compatible Machines

Graco Magnum DX Airless Paint Sprayers
Graco Magnum XR5 sprayers that share similar pump outlet thread specs
Graco Magnum XR7 sprayers with compatible outlet module requirements
Other Graco Magnum series models specifying part 245076 for outlet repair

Product Overview

The Graco 245076 Outlet Kit Repair for Magnum DX is an OEM replacement outlet valve module designed to restore proper fluid exit flow from the pump of compatible Graco Magnum airless sprayers. The outlet valve connects to your spray hose and ensures that paint or coating materials exit the pump reliably and maintain consistent spraying performance. This part is essential when the existing outlet valve becomes worn or begins leaking, which can impact pressure and spray quality.

Specifications Table

Specification	Details
Part Number	245076
Part Type	Outlet Valve Repair Kit
Application	Outlet valve replacement on Magnum DX pump
OEM Grade	Genuine Graco replacement part
Thread Size	1/4″ pipe thread (typical outlet connection)

Key Benefits

Restores proper outlet flow from the pump to the spray hose
OEM‑grade repair part ensures accurate fit and reliable performance
Essential for maintaining consistent spray pressure and finish quality
Helps reduce leaks at the outlet connection point
Designed for easy replacement during maintenance or service

Typical Uses

Replacing worn or leaking outlet valves in Magnum DX sprayers
Routine maintenance of outlet connections to improve performance
Restoring consistent paint delivery for professional spraying
Pump service when outlet valve damage impacts pressure or flow

Frequently Asked Questions

The outlet repair kit replaces the outlet valve module on the Magnum DX pump where the fluid exits the pump and connects to the spray hose.

Replace the valve if you notice leaks around the pump outlet, loss of pressure, or poor spray performance that can be traced to the fluid exit connection.

It is designed primarily for Magnum DX sprayers, but may fit other Magnum models (such as XR5/XR7) that share similar outlet valve specifications — always verify compatibility with your parts diagram before installation.

Yes — with basic tools and by following the sprayer’s service manual instructions, you can replace the outlet valve. Always depressurize and disconnect the sprayer before service.
