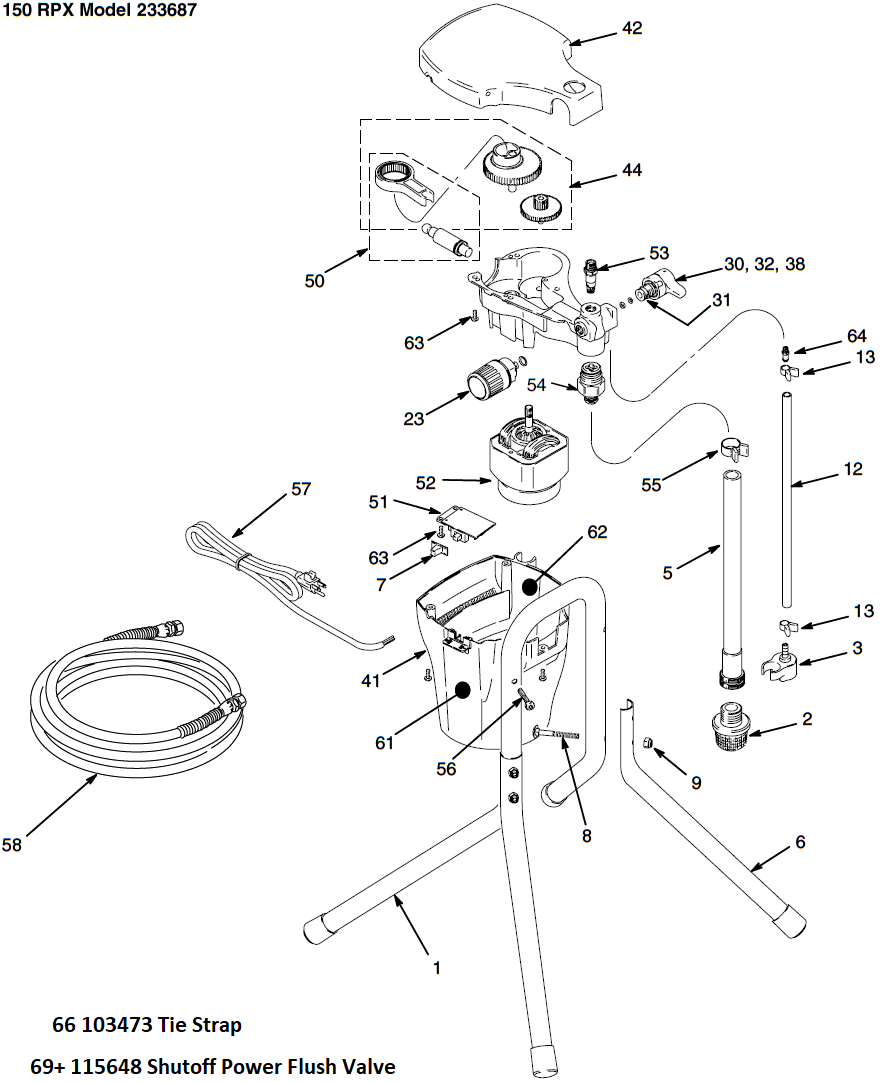

Graco 150 RPX Paint Sprayer Assembly Parts List

Graco 150 RPX Paint Sprayer Assembly Parts List
Product Image
Graco 15A680 Frame

Item No: 1

Part Number: 15A680

UPC Number: 633955822740

Graco 15A680 Frame is a durable OEM replacement designed to support the structural integrity of your...

List Price: $44.30
You save: $3.37 (7.61%)
Sale Price: $40.93
QTY:
Product Image
Graco 195697 Strainer 7/8-14 UNF

Item No: 2

Part Number: 195697

UPC Number: 633955736245

Graco 195697 Strainer 7/8-14 UNF a Genuine Intake Filter Graco 195697 Strainer 7/8-14 UNF is a genu...

$12.60
QTY:
Product Image
Graco 244035 Barbed Deflector

Item No: 3

Part Number: 244035

UPC Number: 633955965218

The Graco 244035 Barbed Deflector directs fluid flow during priming and draining, preventing splashe...

$3.30
QTY:
Product Image
Graco 15A473 Suction Tube

Item No: 5

Part Number: 15A473

UPC Number: 633955822467

Ensure smooth fluid delivery with the Graco 15A473 Suction Tube. Ideal for drawing paint or coatings...

$16.40
QTY:
Product Image

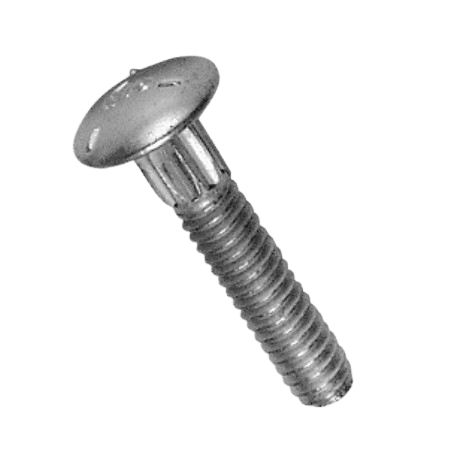

Graco 113955 Carriage Bolt

Item No: 8

Part Number: 113955

UPC Number: 633955132467

The Graco 113955 Carriage Bolt is an OEM structural fastener designed for frame and carriage assembl...

$5.25
QTY:
Product Image
Graco 102040 Lock Nut

Item No: 9

Part Number: 102040

UPC Number: 633955382909

The Graco 102040 Lock Nut is an OEM hex nut designed to secure parts on sprayer frames, pumps, and b...

$0.60
QTY:
Product Image
Graco 15A475 Drain Tube

Item No: 12

Part Number: 15A475

UPC Number: 633955822474

Keep your sprayer system safe and clean with the Graco 15A475 Drain Tube. Perfect for routing excess...

$3.35
QTY:
Product Image
Graco 115489 Drain Tube Clamp

Item No: 13

Part Number: 115489

UPC Number: 633955930209

The Graco 115489 Drain Tube Clamp keeps the drain tube securely in place, preventing leaks and ensur...

$2.45
QTY:
Product Image
Graco 244266 Switch Repair Kit PSI 2800

Item No: 23

Part Number: 244266

UPC Number: 633955982796

The Graco 244266 Switch Repair Kit (2800 PSI) is designed to restore accurate pressure switching and...

List Price: $117.00
You save: $12.17 (10.40%)
Sale Price: $104.83
QTY:
Product Image
Graco 224807 Prime Valve Base

Item No: 30

Part Number: 224807

UPC Number: 633955364264

Ensure smooth priming and reliable operation of your Graco airless sprayer with the 224807 Prime Val...

$6.85
QTY:
Product Image
Graco 235014 Prime Drain Valve Spray Kit

Item No: 31

Part Number: 235014

UPC Number: 633955349100

Maintain your Graco airless sprayer with the 235014 Prime Drain Valve Spray Kit. Ensures smooth prim...

List Price: $121.00
You save: $28.07 (23.20%)
Sale Price: $92.93
QTY:
Product Image
Graco 111600 Grooved Pin

Item No: 32

Part Number: 111600

UPC Number: 633955582996

Graco 111600 Grooved Pin is a genuine OEM part designed to secure the handle in the Prime/Drain Valv...

$5.25
QTY:
Product Image
Graco 187625 Drain Valve Handle

Item No: 38

Part Number: 187625

UPC Number: 633955588868

Graco 187625 Drain Valve Handle is a genuine OEM replacement part designed for precise control of th...

$8.60
QTY:
Product Image

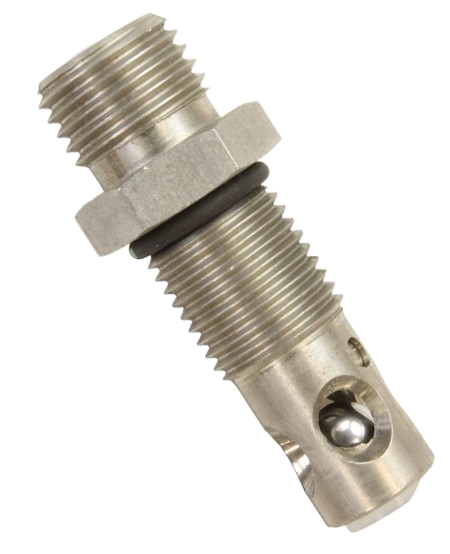

Graco 245076 Outlet Kit Repair For Magnum Dx

Item No: 53

Part Number: 245076

UPC Number: 633955981324

The Graco 245076 Outlet Kit Repair for Magnum DX replaces the OEM outlet valve module on compatible ...

List Price: $82.25
You save: $6.82 (8.29%)
Sale Price: $75.43
QTY:
Product Image

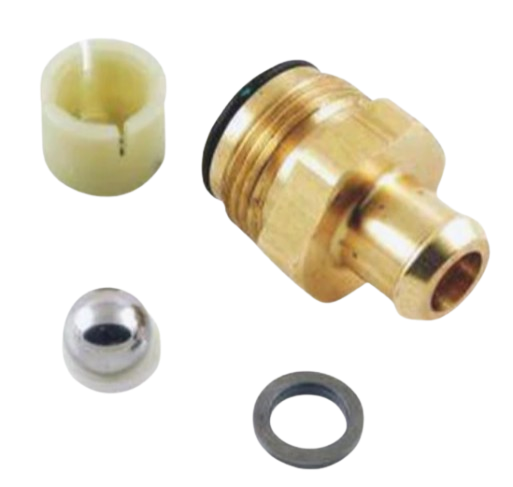

Graco 245077 Inlet Valve Repair Kit

Item No: 54

Part Number: 245077

UPC Number: 633955981348

The Graco 245077 Inlet Valve Repair Kit replaces the OEM inlet valve on compatible Graco Magnum‑se...

List Price: $110.00
You save: $9.13 (8.30%)
Sale Price: $100.87
QTY:
Product Image

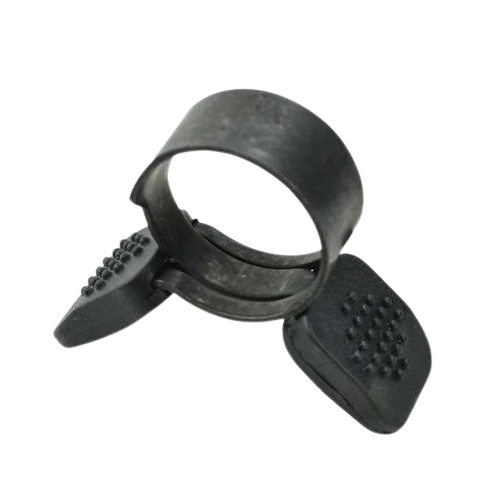

Graco 116295 Tube Clamp

Item No: 55

Part Number: 116295

UPC Number: 633955709331

The Graco 116295 Tube Clamp secures the suction hose on your Magnum sprayer, ensuring stable operati...

$2.65
QTY:
Product Image

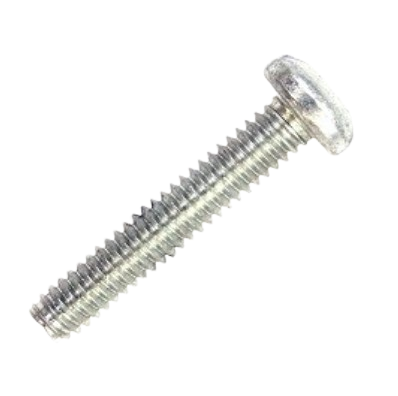

Graco 115478 Torx Machine Screw

Item No: 56

Part Number: 115478

UPC Number: 633955930186

Graco 115478 Torx Machine Screw is a genuine OEM fastener used in multiple Graco sprayers for mounti...

$0.70
QTY:
Product Image
Graco 115477 Pan Head Torx Screw

Item No: 63

Part Number: 115477

UPC Number: 633955930179

The Graco 115477 Pan Head Torx Screw is an OEM fastener designed for securing panels, guards, and mo...

$3.50
QTY:
Product Image
Graco 196574 Drain Fitting

Item No: 64

Part Number: 196574

UPC Number: 633955768390

The Graco 196574 Drain Fitting is an OEM part for secure fluid drainage in select Graco HVLP turbine...

$16.49
QTY:
Product Image
Graco 103473 Wire Tie

Item No: 66

Part Number: 103473

UPC Number: 633955202306

The Graco 103473 Wire Tie is an OEM strap designed to organize and secure wiring or small hoses on m...

$36.70
QTY:
Product Image
Graco 115648 Power Flush Valve

Item No: 69

Part Number: 115648

UPC Number: 633955918603

The Graco 115648 Power Flush Valve allows fast and easy cleaning of Graco Magnum sprayers, keeping y...

$6.60
QTY:

Explore Our Full Line of Professional‑Grade Graco 150 RPX Paint Sprayer Assembly Parts List

When equipment precision and part reliability matter, professionals trust Sprayersandparts.com for authentic Graco 150 RPX Paint Sprayer Assembly Parts. From factory-spec Graco whip hoses to full machine assemblies, we make it easy to spec, source, and ship—all from one streamlined platform.

Why Choose Genuine Graco 150 RPX Paint Sprayer Parts?

OEM Graco components aren’t just parts—they’re built for performance:

  • Exact Fit & Tolerance: Designed to factory specs for maximum spray control and reliability.

  • Pressure & Chemical Tested: Built to withstand job-site abuse, unlike generic alternatives.

  • Warrantied Quality: Backed by Graco and supported by our real-world technical expertise.

Key Features & Technical Specifications

Our detailed listings for Graco 150 RPX assembly parts include:

  • Dimensions and pressure ratings

  • Material grades for chemical compatibility

  • Clear cross-reference info for other Graco models

Whether you’re upgrading with Graco smoothing blades in Houston, Texas or maintaining a legacy 395 Graco sprayer, all the specs you need are a click away.

Fast Shipping + Real-Time Tech Support

  • Same-Day Shipping: Confirm your order by 12 Noon for fast, same-day dispatch from Graco warehouse (For qualifying orders only).

  • Expert Help On-Demand: Our seasoned techs are here for torque specs, part-matching help, or custom compatibility questions.

Pro Tips for Long-Term Sprayer Reliability

  • Log service intervals to prevent failures before they start.

  • Always use fresh lubricant with each Graco seal kit to reduce wear and extend pack-off life.

  • Keep a spare Graco parts replacement on hand to avoid downtime during large or multi-day projects.

  • Organize essentials like Graco airless paint sprayer parts and TrueCoat 360 DS parts with color-coded bins for quick access.

Upgrade Your Workflow with Graco 150 RPX Parts

Boost productivity with genuine Graco 150 RPX Paint Sprayer Assembly Parts, including must-haves from your local Graco distributor near me. Add them to your cart today and spray smarter tomorrow.
