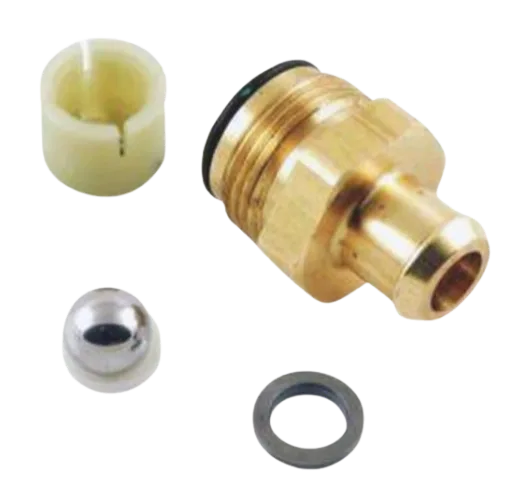

Graco 245077 Inlet Valve Repair Kit
$100.87
$110.00
Save 8%
Out of Stock
The Graco 245077 Inlet Valve Repair Kit replaces the OEM inlet valve on compatible Graco Magnum‑series airless sprayers to restore proper fluid intake into the pump.
- OEM inlet valve replacement
- Fits Magnum DX, AX, RPX & XR5 sprayers
- Restores suction and fluid flow
- Prevents inlet leaks
- Easy to install with basic tools
Helps maintain optimal spray performance.
This product has been discontinued by the manufacturer.
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Graco 245077 Inlet Valve Repair Kit — Compatibility & Product Details
Compatible Machines
- Graco Magnum DX Airless Paint Sprayers
- Graco Magnum AX Airless Sprayers
- Graco Magnum RPX Roller & Spray System
- Graco Magnum XR5 Series Sprayers with compatible inlet valve specifications
- Other Graco Magnum pump systems that list part 245077
Product Overview
The Graco 245077 Inlet Valve Repair Kit is a genuine replacement part designed to restore proper fluid intake in compatible Graco Magnum airless paint sprayers. The inlet valve is the component that allows paint or coating material to enter the pump from the suction tube, ensuring efficient fluid flow and reliable spray performance.
Specifications Table
| Specification | Details |
|---|---|
| Part Number | 245077 |
| Kit Type | Inlet Valve Repair |
| Application | Fluid intake and pump sealing |
| OEM Grade | Genuine Graco replacement part |
| Connection Type | Threaded inlet with barbed fitting |
Key Benefits
- Restores proper fluid intake to the pump
- Prevents leaks and loss of suction
- OEM part ensures correct fit and durability
- Improves consistent paint delivery and pressure
- Easy to install during maintenance or rebuild
Typical Uses
- Replacing damaged or worn inlet valves
- Improving suction and pump performance
- Routine maintenance on Magnum‑series sprayers
- Restoring fluid flow in older or heavily used sprayers
Frequently Asked Questions
The kit replaces the inlet valve fitting and associated components that control fluid entering the pump, helping maintain proper suction and flow.
If you notice loss of suction, difficulty priming, or fluid leakage at the inlet area, it may indicate a worn or damaged inlet valve requiring replacement.
It is designed for Magnum DX, AX, RPX, and certain XR5 sprayers — check your model’s parts list or service manual for compatibility before installation.
With basic tools and by following service instructions, replacing the inlet valve is straightforward — always relieve pressure and disconnect before servicing.
