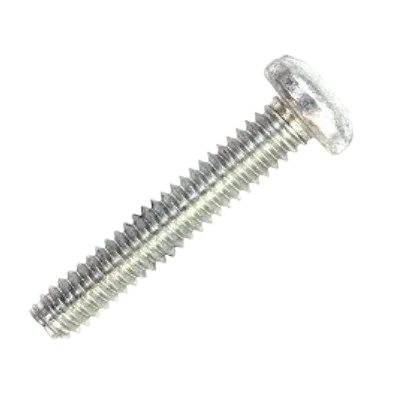

Graco 115478 Torx Machine Screw

Graco 115478 Torx Machine Screw is a genuine OEM fastener used in multiple Graco sprayers for mounting covers and internal assemblies. It offers durability and a secure Torx/slotted dual-drive design.

Fits ProX 17, ProX 19, ProX 21 series
Also used in Ultra Max II 1095/1595
Torx + slotted pan head for easy installation
Ensures firm hold and long service life

$0.98

Based on 0 reviews

Description

Key Compatibility & OEM Details for Graco 115478 Torx Machine Screw

Compatible Machines

This genuine Graco 115478 Torx Machine Screw (Torx/slotted pan head) is used across several Graco sprayer families. Confirmed fits include:

ProX 17 — Stand models
ProX 19 — Stand models
ProX 21 — Electric Airless (series)
TexSpray Mark V — Electric airless texture sprayers (Models 249029, 249030)
Ultra Max II 1095 — Hi-Boy / Lo-Boy variants
Ultra Max II 1595 — Hi-Boy / Lo-Boy variants

About the Graco 115478

The Graco 115478 Torx Machine Screw is a factory-spec fastener commonly used to secure control covers, brackets, boards, and small sub-assemblies on professional airless and texture sprayers. Its pan head profile seats flush while the Torx/slotted drive improves tool access and reduces cam-out during service.

Quick Specs

Part Number	115478
Head / Drive	Torx / Slotted Pan Head
Type	OEM Machine Screw (Graco)
Typical Use	Panels, control covers, brackets, electronics mounting
Compatibility	See list above; verify against your sprayer’s parts manual

Frequently Asked Questions

Yes—Graco 115478 is a genuine OEM machine screw designed to meet factory specifications for Graco sprayers.

Confirmed usage appears in ProX 17/19/21, TexSpray Mark V, and Ultra Max II 1095/1595 parts lists. Always verify with your specific parts manual.

It accepts a Torx driver for best engagement, and also a flat slotted screwdriver in tight spots (dual-drive pan head).

Quantity varies by model and revision. For example, some ProX series use multiple 115478 screws on control-cover assemblies.

Disconnect power, support the cover or bracket being removed, and start by hand to avoid cross-threading. Use a Torx driver to torque evenly and prevent cam-out.
