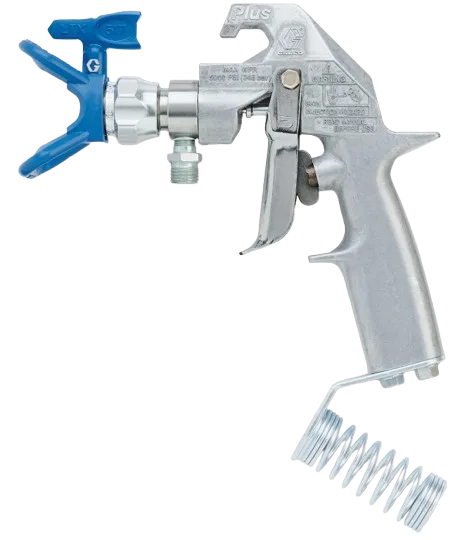

Graco 246468 Flex Plus Airless Spray Gun
$240.95
$395.00
Save 39%
Available to Order
Pro-grade, ergonomic airless gun for high-productivity spraying. The Graco 246468 Flex Plus supports heavy coatings with smooth control and fast tip changes.
- Max working pressure: 5000 psi
- Inlet thread: 1/4" NPSM
- Tip system: RAC X (SwitchTip + HandTite guard)
- Trigger: 2-finger, low-force
- Fits: Ultra 395/495/595, Ultra Max II 490–1095, GMAX II 3900–7900, Mark IV/V/VII, and other Graco sprayers rated for 5000 psi with 1/4" NPSM hose
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Pro-Grade Overview: Graco 246468 Flex Plus Airless Spray Gun
Compatible Machines
The Graco 246468 Flex Plus Airless Spray Gun (max 5000 psi, 1/4" NPSM inlet) connects to most professional Graco airless sprayers that meet these specs. Common matches include, but are not limited to:
- Ultra 395 / 495 / 595
- Ultra Max II 490 / 495 / 595 / 695 / 795 / 1095
- GMAX II 3900 / 5900 / 7900
- Mark IV / V / VII (texture/paint rigs)
- Other Graco airless units supporting a 5000-psi gun with 1/4" NPSM hose
Fit tip: Check your sprayer’s rated pressure and hose end (1/4" NPSM) to confirm plug-and-spray compatibility.
What it is
A durable, ergonomic airless gun designed for high-productivity spraying. The Flex Plus body, long-life needle, and smooth trigger reduce fatigue and help maintain a consistent finish on paints, primers, and heavier coatings.
Key Features
- Up to 5000 psi working pressure for pro-grade performance.
- Ergonomic handle and light trigger pull to minimize hand fatigue.
- Large fluid path engineered to reduce pressure drop and clogging.
- RAC X compatibility for fast tip changes and pattern control.
- Robust construction and long-life needle for extended service intervals.
Specifications
| Model / Part | Graco 246468 Flex Plus Airless Spray Gun |
|---|---|
| Max Working Pressure | 5000 psi (345 bar) |
| Inlet Thread | 1/4" NPSM |
| Tip System | RAC X compatible (SwitchTips / guards) |
| Trigger Style | Comfortable, low-force trigger (2-finger pattern) |
| Typical Applications | Interior/exterior paints, primers, elastomerics, heavy coatings (per tip selection) |
What’s Included*
- Flex Plus gun body
- HandTite™ guard and RAC X tip (common pairing is 517) — may vary by kit
Setup & Use Tips
- Verify hose end is 1/4" NPSM; use approved adapters if needed.
- Match RAC X tip size to coating viscosity and desired flow/fan.
- Never exceed 5000 psi; always follow sprayer and gun safety procedures.
Frequently Asked Questions
If your Graco sprayer supports a 5000 psi gun and uses a 1/4" NPSM hose end, the 246468 Flex Plus will fit. See the Compatible Machines list above for common examples.
Choose the RAC X SwitchTip by coating and flow needs. For walls with latex paints, a mid-size tip (e.g., 517) is common; heavier coatings may require larger orifice sizes. Always stay within the sprayer’s flow/pressure limits.
The gun inlet is 1/4" NPSM. If your hose end differs, use a compatible Graco adapter rated for 5000 psi or higher. Do not use un-rated fittings.
The Flex Plus handles common architectural coatings—primers, latex paints, elastomerics, and heavier materials when matched with appropriate RAC X tips. Always filter and strain materials per Graco guidance.
