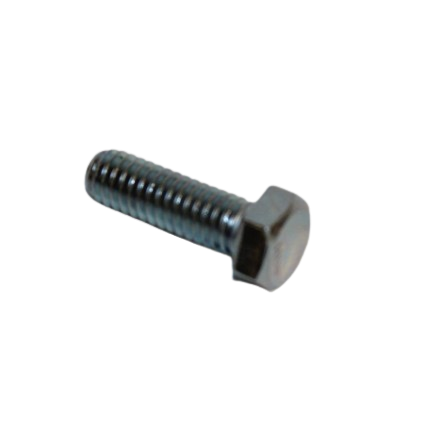

Graco 110963 Cap Screw

The **Graco 110963 Cap Screw** is a genuine OEM fastener used for secure assembly of hose reels, wheels, and structural parts in Graco machines. Ensures proper alignment and long-lasting performance.

Type: Cap Screw / Flange Head
Size: 5/16‑18 × 3/4” (verify with parts manual)
Fits: Graco ES500, 3400, and 224060 Series C Hose Reels
OEM Part: Ensures correct fit and safe operation

$8.74

Based on 0 reviews

Description

Graco 110963 Cap Screw – OEM Fastener for Hose Reels & Machines

The **Graco 110963 Cap Screw** is a high-quality OEM fastener designed for structural assemblies in Graco equipment. It ensures proper alignment and secure attachment of components such as hose reels, wheels, and chassis parts.

Compatible Machines

Graco ES500 Line-Marking Machine (front wheel assembly)
Graco 3400 Line-Marking Machine (front wheel assembly)
Graco 224060 Series C Hose Reel
Other Graco hose reel assemblies as specified in service manuals

Always check your machine's parts manual or serial number to confirm proper fit.

Key Features & Benefits

Description	Details
Type	Cap Screw / Flange Head
Size	5/16‑18 × 3/4” (typical, confirm with parts manual)
Purpose	Secures hose reels, wheels, and structural components
OEM Part	Genuine Graco part ensures correct fit and safe operation
Maintenance Benefits	Prevents component misalignment and ensures durability

Usage & Installation Notes

Verify the screw size and type before installation according to the machine manual.
Follow torque specifications in the service manual to avoid damage or misalignment.
Use genuine Graco fasteners for safety and machine reliability.
Inspect threads and mating surfaces before reuse to ensure proper function.
