Graco 110996 Flanged Hex Nut – OEM Replacement Fastener

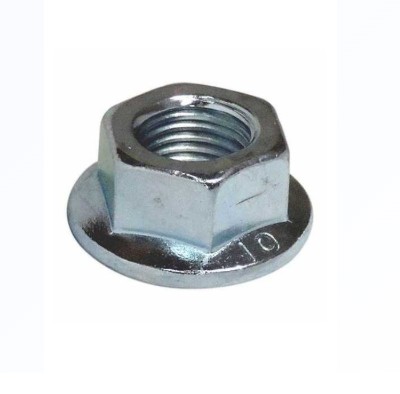

The **Graco 110996 Flanged Hex Nut** is an OEM replacement used to secure components in Graco machines. Its integral flange provides enhanced stability and ensures proper alignment in assemblies.
Compatible Machines
- Graco Hose-Reel Assemblies (Models: 224051, 256985 Series F, 224058, 247380, 256986 Series E, 243982, 247379, 257081 Series D)
- Sprayers and modules listed in Graco manual 310812
- DutyMax EH/GH230/300 HD Standard Series motor and mounting assemblies
- Other Graco machines referencing part number 110996 in their service manuals
Always confirm part 110996 with your machine’s manual or serial number to ensure correct fit.
Key Features & Specifications
| Description | Details |
| Type | Flanged Hex Nut |
| Thread Size | 5/16-18 |
| OEM Part | Ensures proper fit and secure assembly |
| Application | Used in hose-reel brackets, motor mounts, and structural assemblies |
| Benefit | Maintains alignment, clamp load, and safety |
Installation Notes
- Verify thread size and type before installation (5/16-18 for most listed applications).
- Follow torque specifications provided in your machine manual.
- Use genuine OEM nuts to ensure secure and reliable connections.
- Replace damaged or worn nuts to maintain assembly integrity.
Frequently Asked Questions
It is a genuine OEM fastener used to secure structural components such as hose-reel brackets, motor mounts, and other assemblies in Graco machines.
It fits Graco Hose-Reel assemblies, DutyMax EH/GH230/300 HD series, and other machines that list part 110996 in their service manuals. Always check your manual for confirmation.
Non-OEM nuts are not recommended. OEM nuts ensure correct fit, flange support, and safe assembly operation.
Always verify part 110996 against your machine’s model and serial number for proper compatibility and safe installation.
