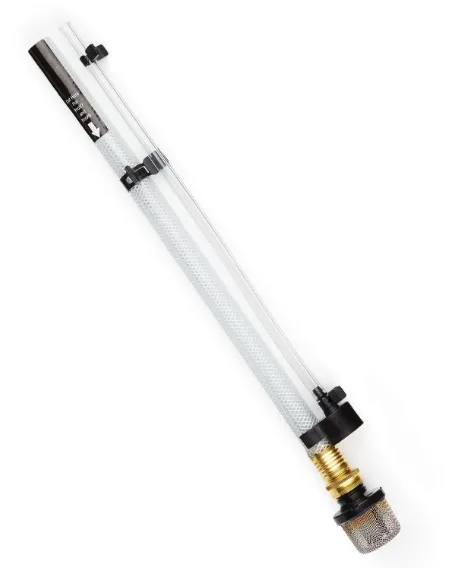

Graco 24V073 Magnum Suction Tube Assembly
5/5
(1 review)
$28.90
Available to Order
The Graco 24V073 Magnum Suction Tube Assembly is a genuine OEM part that ensures reliable suction and optimal performance for your sprayer. Complete with all necessary components for easy replacement.
- Compatible with: Magnum X7, ProX17 Cart, ProX19 Cart
- Complete kit: Suction tube, barbed deflector, drain tube, strainer, and clamps
- Durable construction: Designed for professional use
- Easy installation: Minimizes downtime and ensures proper operation
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Graco 24V073 Suction Tube Assembly Overview
The Graco 24V073 Magnum Suction Tube Assembly is a genuine OEM replacement part designed to maintain optimal performance in select Graco Magnum airless sprayers. It includes a suction tube, barbed deflector, drain tube, strainer, and necessary clamps for a complete solution.
Compatible Machines
| Machine Model | Type |
|---|---|
| Magnum X7 | Cart Model |
| ProX17 | Cart Model |
| ProX19 | Cart Model |
Key Features
- Genuine OEM Part: Ensures proper fit and reliable performance.
- Complete Assembly: Includes suction tube, barbed deflector, drain tube, strainer, and clamps.
- Durable Construction: Built for professional use with long-lasting reliability.
- Easy Installation: Designed for straightforward replacement to minimize downtime.
- Versatile Compatibility: Works with both water-based and mineral spirit-based paints.
Installation Tips
- Ensure the sprayer is unplugged and depressurized before installation.
- Remove the old suction tube assembly carefully, noting component orientation.
- Install the new 24V073 assembly, ensuring all components are properly aligned and securely attached.
- Check all connections for tightness and verify there are no leaks before operating the sprayer.
Frequently Asked Questions
The assembly includes the suction tube, barbed deflector, drain tube, strainer, and necessary clamps for installation.
Compatible models include Magnum X7, ProX17 Cart, and ProX19 Cart sprayers.
Installation is straightforward; ensure proper alignment of components and secure all clamps. Verify there are no leaks before use.
5
1 review
1
0%
2
0%
3
0%
4
0%
5
100%
T
Timothy A.
Needed a replacement 24V073 Magnum Suction Tube Assembly, part number 24V073, and shipping was quick and the part was packaged well. Glad we found the exact part number we needed.
